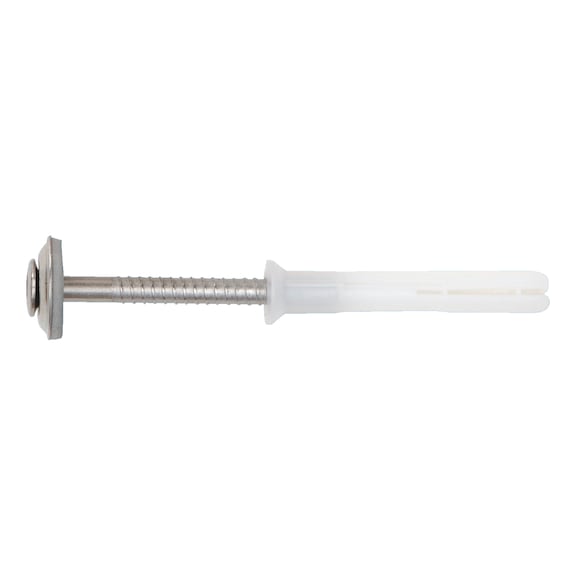

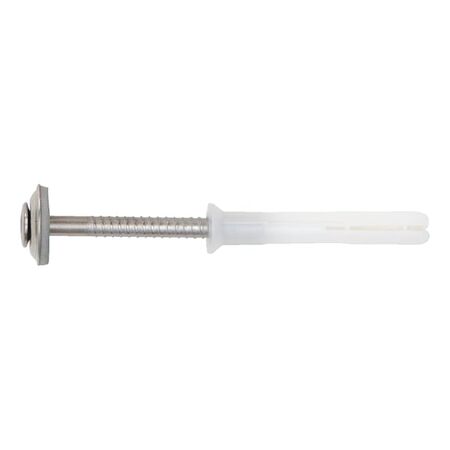

Nail Anchor W ZND Type DS DWL SD20 | Stainless Steel A2 | UV & Rot Resistant | @Pack of 100 | by Wurth
Nail Anchor W ZND Type DS DWL SD20 is crafted from durable stainless steel A2, ensuring UV and rot resistance for long-lasting performance. Ideal for fastening roof flashing and sheets, this anchor is pre-assembled with a matching screw for quick installation. Perfect for professional use, it meets AS/NZS 1170 standards, making it a reliable choice for various construction needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nail Anchor W ZND Type DS DWL SD20 | Stainless Steel A2 | UV & Rot Resistant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 906376402
Alternatively Known As: Nail anchor, Roof flashing anchor, Stainless steel nail anchor, Polyamide wall plug anchor
Technical Specifications
- Anchor diameter: 6 mm
- Anchor length: 40 mm
- Max. attachment height: 20 mm
- Embedding depth: 30 mm
- Nominal drill-bit diameter: 6 mm
- Drill hole depth: 35 mm
- Hole diameter in component: 6 mm
- Material of nail: Stainless steel A2
- Surface: Plain
- Washer diameter: 20 mm
- Internal drive: Z2
- Dimensions (H x L x W): 40mm x 40mm x 20mm
- Weight: 0.05 kg
Key Features
- Wall plug body with countersunk head, nails, and washer made of stainless steel A2
- Pre-assembled with matching screw for quick, low-cost assembly
- Can be removed using drive-in screw head
- Clear integral hammer-in stop prevents premature expansion
- Resistant to UV rays and rot resistant (plastic anchors made of high-quality polyamide)
- Temperature resistant from -40°C to +150°C
- Halogen-free material
Professional Installation Requirements
- Professional installation recommended to ensure correct drilling, insertion, and fastening for optimal performance and safety.
Applications
- Fastening roof flashing and sheets
- Sealing drill holes with plumber's sealing washer
- Suitable for recessed or protruding installation in wood
- Push-through installation for various construction needs
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable stainless steel components increase product lifespan and reduce waste
- UV and rot resistance ensures long-term performance minimizing replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Nail Anchor W ZND Type DS DWL SD20 PLA NL A2 6X40 100 PCS is available for immediate purchase, ideal for roofing and construction fastening applications.
