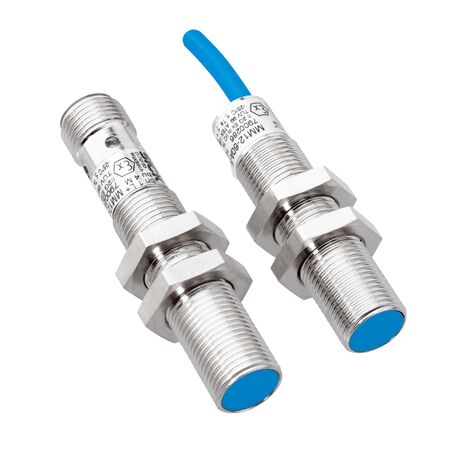

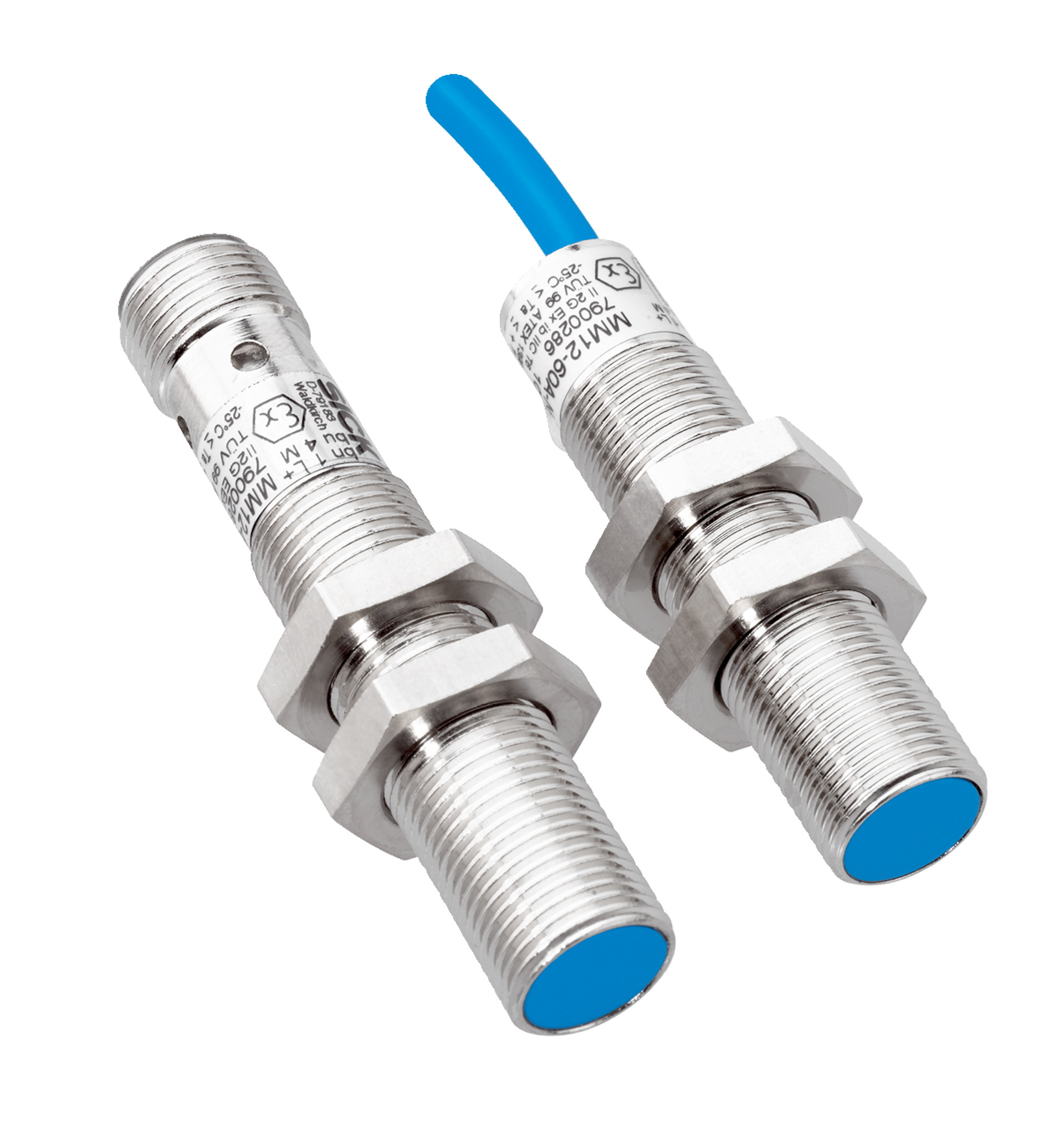

NAMUR Proximity Sensor M12 | 5mm to 70mm Sensing Range | IP67 Rated | by SICK
The NAMUR Proximity Sensor M12 is designed for precise position detection in industrial automation, featuring a sensing range from 5 mm to 70 mm and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 1,000 Hz and ATEX certification, this sensor is perfect for hazardous area applications, ensuring safety and reliability in explosive environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M12 x 1 thread, metal nickel-plated brass
- Sensing range Sn: 5 mm to 70 mm
- Safe sensing range Sa: 56.7 mm
- Magnetic sensitivity: 0.7 mT
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NAMUR (control current per EN 60947-5-6)
- Electrical wiring: DC 2-wire
- Magnetic alignment: Axial
- Enclosure rating: IP67
- Ripple: ≤ 5%
- Time delay before availability: ≤ 2 ms
- Hysteresis: ≤ 25%
- Reproducibility: ≤ 1%
- Temperature drift of Sr: ± 10%
- EMC: According to EN 60947-5-2
- Current consumption activated: ≥ 2.3 mA
- Current consumption not activated: ≤ 1 mA
- Cable resistance: ≤ 50 Ω
- Wire-break, reverse polarity, short-circuit protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Operating temperature: -25 °C to +70 °C
- Housing length: 62.5 mm
- Thread length: 40 mm
- Tightening torque max: ≤ 7 Nm
- Type approval: TÜV 19 ATEX 241335, UL22UKEX2385
- ATEX marking: EX II 1G Ex ia IIC T6 Ga EX II 1D Ex ia IIIC T 200 85 °C Da
- Ex area category: 1G, 1D
- Input voltage max: 16 V
- Input power max: 100 mW
- Input current max: 30 mA
- Internal capacitance max: 130 nF
- Internal inductance max: 10 µH
- Nominal voltage: 8.2 V DC
- Dimensions (H x L x W): 62.5mm x 62.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 threaded metal housing with nickel-plated brass
- Sensing range from 5 mm to 70 mm with safe sensing range of 56.7 mm
- NAMUR switching output with DC 2-wire electrical wiring
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wire-break, reverse polarity, and short-circuit protection
- ATEX certified for use in explosive atmospheres (EX II 1G Ex ia IIC T6 Ga EX II 1D Ex ia IIIC T 200 85 °C Da)
- Operating temperature range from -25 °C to +70 °C
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with NAMUR sensors and ATEX certified equipment to ensure compliance with safety standards.
Applications
- Industrial automation for position detection
- Hazardous area sensing with ATEX certification
- Machine safety and control systems
- Process control in explosive atmospheres
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable metal housing extends product life reducing waste
- Low power consumption (max 100 mW) supports energy efficiency
- Certified for safe use in hazardous environments minimizing risk of accidents
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MM12-70A-N-ZC0 NAMUR Proximity Sensor is available for immediate purchase, ideal for industrial automation and hazardous area sensing applications.
