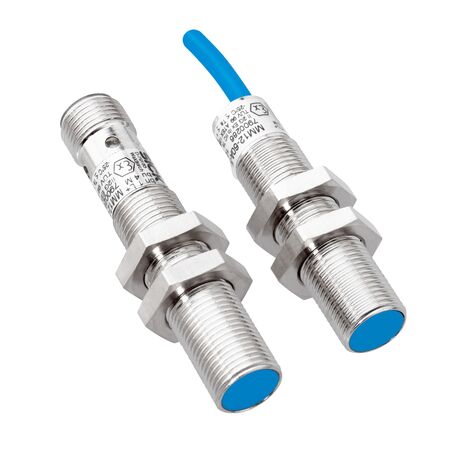

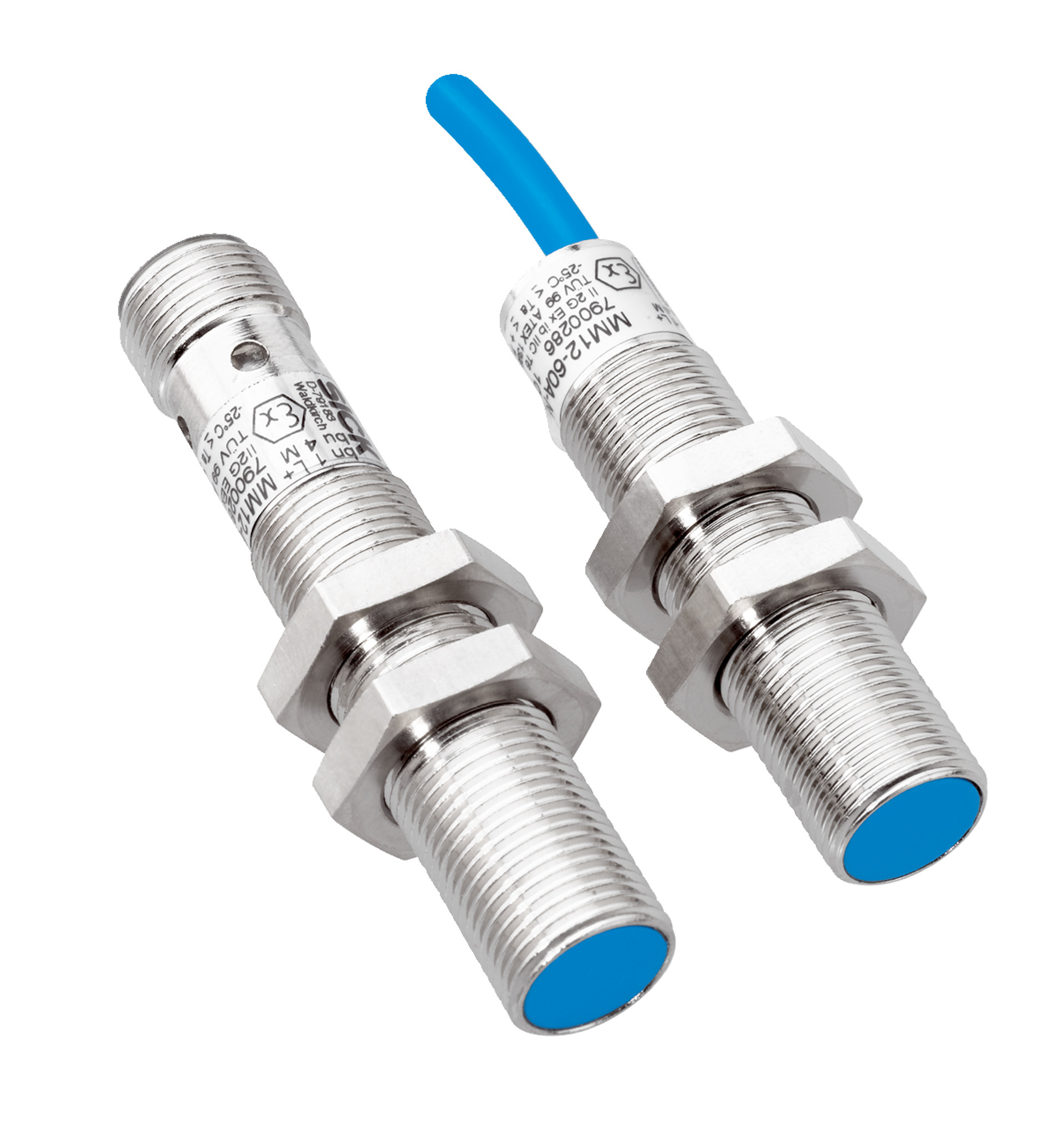

NAMUR Proximity Sensor M12 | 5mm to 70mm Sensing Range | IP67 Rated | by SICK
The NAMUR Proximity Sensor M12 is designed for precise position detection in industrial automation, featuring a sensing range from 5mm to 70mm and an IP67 rated enclosure for dust and water protection. With a magnetic sensitivity of 0.7 mT and a switching frequency of up to 1,000 Hz, this sensor is ideal for hazardous area applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 5 mm to 70 mm
- Safe sensing range Sa: 56.7 mm
- Magnetic sensitivity: 0.7 mT
- Switching frequency: 1,000 Hz
- Connection type: 2 m cable, 2-wire
- Switching output: NAMUR per EN 60947-5-6
- Electrical wiring: DC 2-wire
- Magnetic alignment: Axial
- Enclosure rating: IP67
- Ripple: ≤ 5%
- Time delay before availability: ≤ 2 ms
- Hysteresis: ≤ 25%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Current consumption activated: ≥ 2.3 mA
- Current consumption not activated: ≤ 1 mA
- Cable material: PVC
- Conductor size: 0.34 mm²
- Cable resistance: ≤ 50 Ω
- Wire-break, reverse polarity, and short-circuit protection included
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Nickel-plated brass
- Housing length: 50 mm
- Thread length: 40 mm
- Tightening torque max: ≤ 7 Nm
- Type approval: TÜV 19 ATEX 241335, UL22UKEX2385
- ATEX marking: EX II 1G Ex ia IIC T6 Ga EX II 1D Ex ia IIIC T 200 85 °C Da
- Ex area category: 1G, 1D
- Input voltage max: 16 V
- Input power max: 100 mW
- Input current max: 30 mA
- Internal capacitance max: 130 nF
- Internal inductance max: 10 µH
- Nominal voltage: 8.2 V DC
- Dimensions (H x L x W): 50mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 housing with 12 mm diameter
- Sensing range from 5 mm to 70 mm
- Safe sensing range of 56.7 mm
- Magnetic sensitivity of 0.7 mT
- Switching frequency up to 1,000 Hz
- NAMUR switching output with control current per EN 60947-5-6
- DC 2-wire electrical wiring
- Axial magnetic alignment
- IP67 rated enclosure for dust and water protection
- Includes two nickel-plated brass mounting nuts
- Wire-break, reverse polarity, and short-circuit protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Operating temperature range from -25 °C to +70 °C
- Housing made of nickel-plated brass
- ATEX certified for explosive atmospheres (EX II 1G Ex ia IIC T6 Ga EX II 1D Ex ia IIIC T 200 85 °C Da)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with NAMUR sensors and hazardous area equipment standards to ensure compliance and safety.
Applications
- Industrial automation for position detection
- Hazardous area sensing with ATEX certification
- Machine safety and control systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with input power max 100 mW
- Durable metal housing extends product life reducing waste
- Certified compliance with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MM12-70A-N-ZW0 NAMUR Proximity Sensor is available for immediate purchase, ideal for industrial automation and hazardous area sensing applications.
