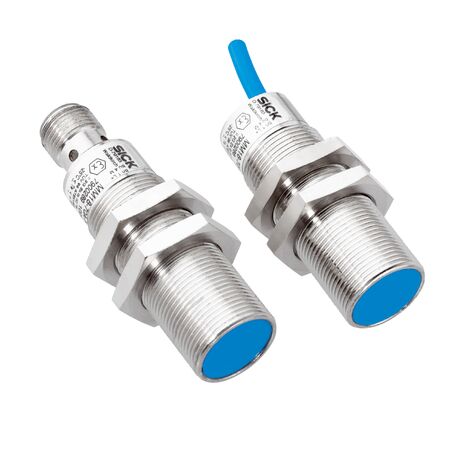

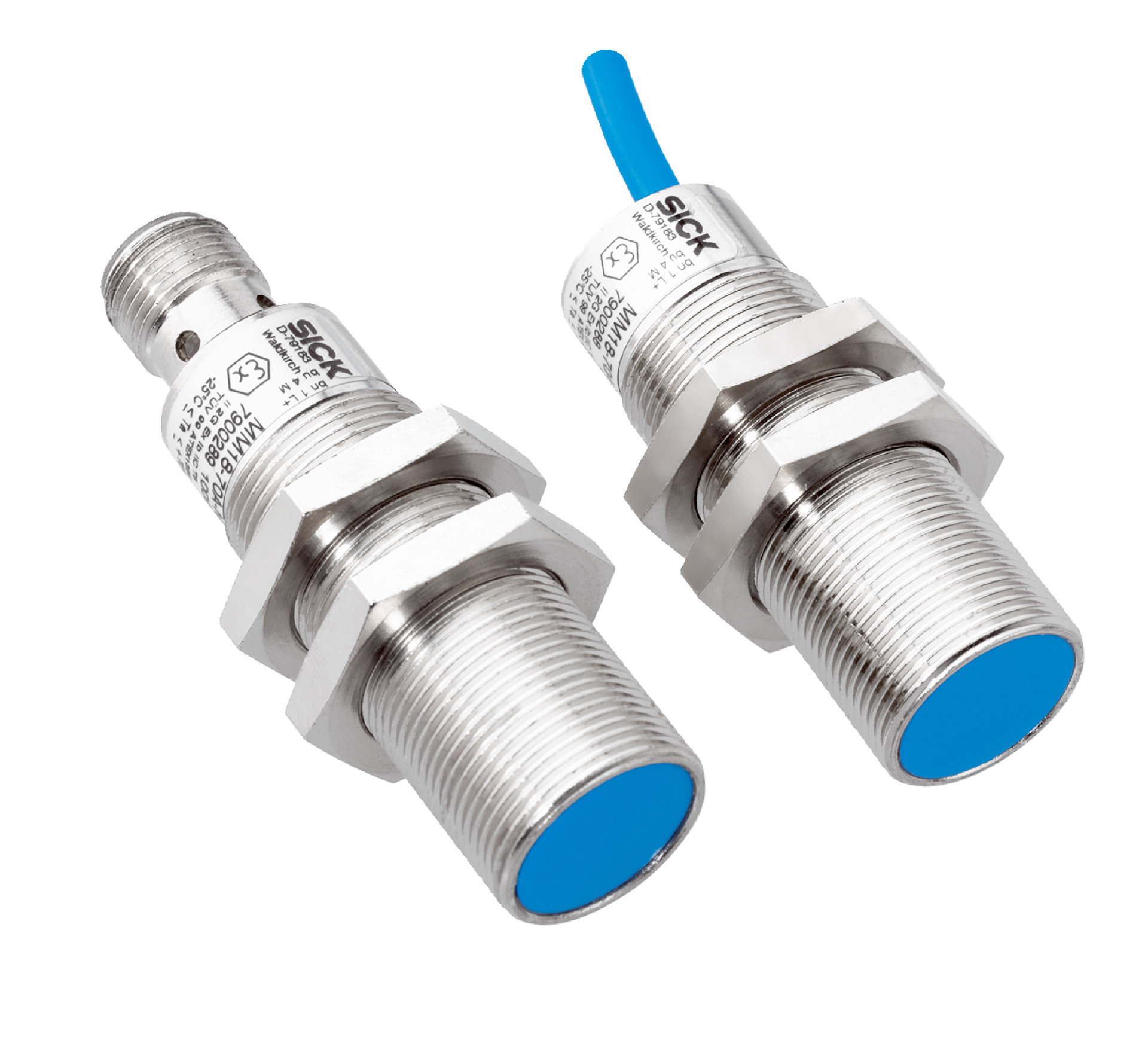

NAMUR Proximity Sensor M18 | 5 mm to 70 mm Sensing Range | IP67 Rated | by SICK
The NAMUR Proximity Sensor M18 is designed for precise position detection in industrial automation, featuring a sensing range from 5 mm to 70 mm and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 1,000 Hz and ATEX certification for hazardous areas, this sensor ensures reliable performance in challenging environments, making it ideal for metal object detection and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M18 x 1
- Sensing range Sn: 5 mm to 70 mm
- Safe sensing range Sa: 56.7 mm
- Magnetic sensitivity: 0.7 mT
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NAMUR
- Output characteristic: Control current depending on switching state according to NAMUR EN 60947-5-6
- Electrical wiring: DC 2-wire
- Magnetic alignment: Axial
- Enclosure rating: IP67
- Ripple: ≤ 5 %
- Time delay before availability: ≤ 2 ms
- Hysteresis: ≤ 25 %
- Reproducibility: ≤ 1 %
- Temperature drift (of Sr): ± 10 %
- EMC: According to EN 60947-5-2
- Current consumption activated: ≥ 2.3 mA
- Current consumption not activated: ≤ 1 mA
- Cable resistance: ≤ 50 Ω
- Wire-break protection: Yes
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Housing material: Metal, Nickel-plated brass
- Tightening torque max: ≤ 25 Nm
- Type approval certificate: TÜV 19 ATEX 241335
- UK type examination certificate: UL22UKEX2385
- ATEX marking: EX II 1G Ex ia IIC T6 Ga EX II 1D Ex ia IIIC T 200 85 °C Da
- Ex area category: 1G, 1D
- Input voltage Uimax: 16 V
- Input power Pimax: 100 mW
- Input current Iimax: 30 mA
- Internal capacitance Cimax: 130 nF
- Internal inductance Limax: 10 µH
- Nominal voltage: 8.2 V DC
- Dimensions (H x L x W): 18mm x 65mm x 18mm
- Weight: 0.1 kg
Key Features
- Metric M18 x 1 housing with 65 mm length
- Sensing range from 5 mm to 70 mm with safe sensing range of 56.7 mm
- NAMUR switching output with DC 2-wire electrical wiring
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Reverse polarity, short-circuit, and wire-break protection
- ATEX certified for use in explosive atmospheres (EX II 1G Ex ia IIC T6 Ga EX II 1D Ex ia IIIC T 200 85 °C Da)
- Operating temperature range from -25 °C to +70 °C
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ATEX certified equipment and electrical wiring standards to ensure safety and compliance.
Applications
- Industrial automation for position detection
- Hazardous area sensing with ATEX certification
- Metal object detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable metal housing reduces replacement frequency and waste
- Low power consumption with efficient DC 2-wire design
- Certified for safe use in hazardous environments minimizing risk of accidents
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MM18-70A-N-ZC0 NAMUR Proximity Sensor is available for immediate purchase, ideal for industrial automation and hazardous area sensing applications.
