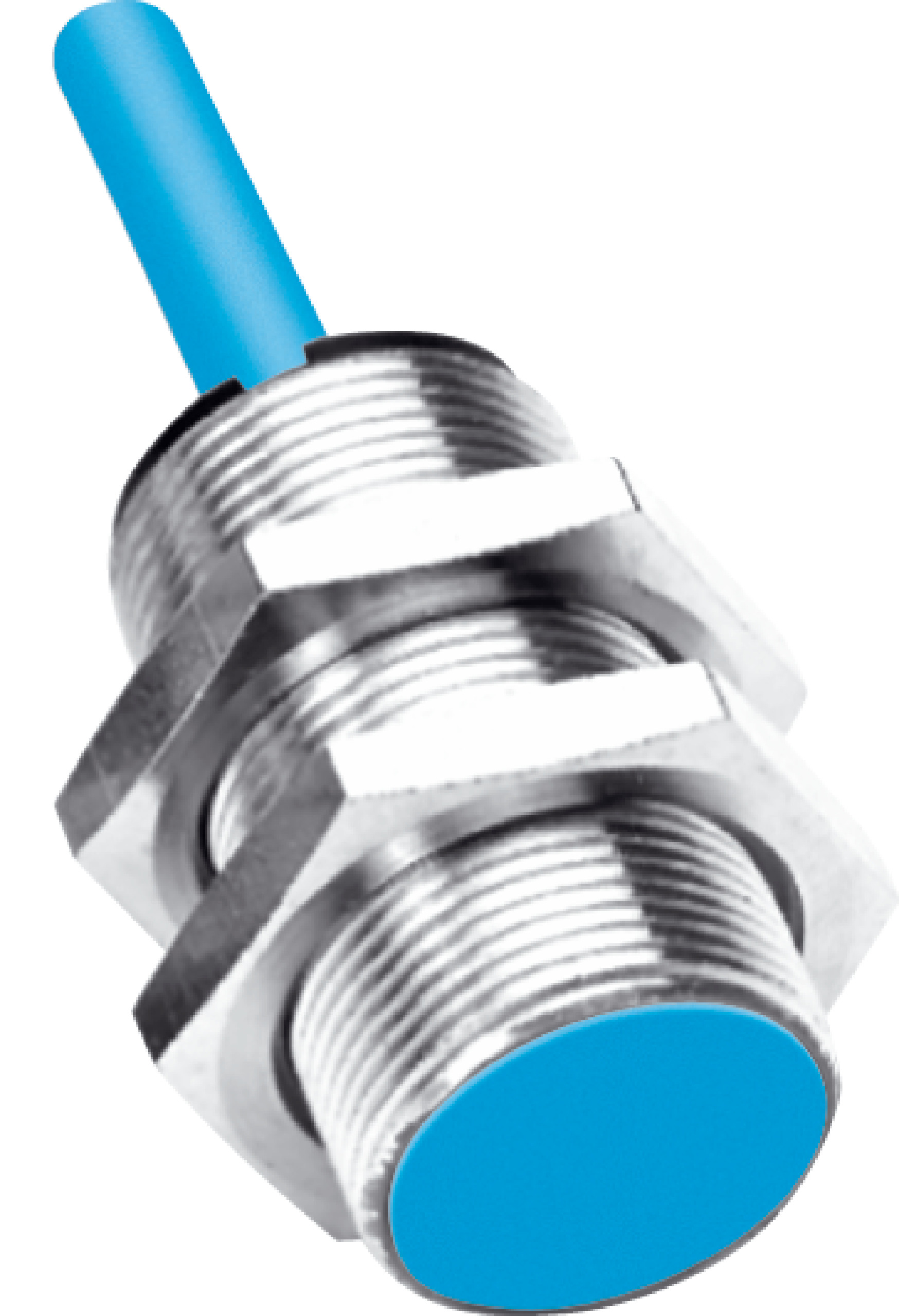

NAMUR Proximity Sensor M18 | 5mm Sensing Range | IP67 Rated | ATEX Certified | by SICK
The NAMUR Proximity Sensor M18 is designed for industrial automation, featuring a 5mm sensing range and IP67 enclosure for dust and water protection. Ideal for use in explosive areas, this sensor offers a high switching frequency of 720 Hz and is built with durable brass housing. Perfect for detecting metal objects in machinery and equipment, it ensures safety and reliability in hazardous environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M18 x 1 thread, brass nickel-plated
- Diameter: 18 mm
- Sensing range Sn: 5 mm
- Safe sensing range Sa: 4.05 mm
- Installation type: Flush
- Switching frequency: 720 Hz
- Connection type: Cable, 2-wire, 2 m length
- Switching output: NAMUR, NC function
- Enclosure rating: IP67
- Supply voltage: 7.5 V DC to 25 V DC
- Hysteresis: 1% to 15%
- Temperature drift: ±10%
- Current consumption activated: ≤ 1 mA
- Current consumption not activated: ≥ 2.2 mA
- Cable material: PVC, diameter 5.4 mm
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -20 °C to +70 °C
- Housing length: 33 mm
- Thread length: 32 mm
- Tightening torque max: 35 Nm
- Weight: 171 g
- Type approval: PTB 03 ATEX 2037
- Ex area category: 1G, 2G
- Device labeling: II 1G Ex ia IIC T6 Ga Ta –20 °C to +70 °C, II 2G Ex ia IIC T6 Gb Ta –20 °C to +70 °C
- Dimensions (H x L x W): 33mm x 33mm x 18mm
- Weight: 0.171 kg
Key Features
- Metric M18 x 1 thread size with Ø 18 mm diameter
- Sensing range of 5 mm with safe sensing range of 4.05 mm
- Flush installation type with NAMUR switching output (NC function)
- High switching frequency of 720 Hz
- Cable connection, 2-wire, 2 m length
- Enclosure rating IP67 for dust and water protection
- Suitable for explosive areas with ATEX certification
- Housing made of brass, nickel-plated with plastic PTB sensing face
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ATEX certified equipment and electrical safety standards.
Applications
- Industrial automation for detecting metal objects
- Use in explosive areas requiring ATEX certification
- Flush installation in machinery and equipment
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with supply voltage from 7.5 V DC to 25 V DC
- Certified for use in explosive environments enhancing safety and reducing risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

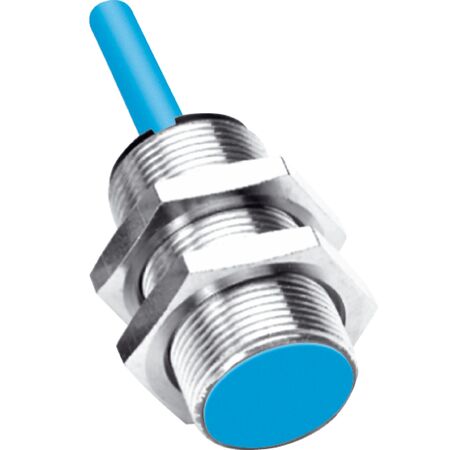

The SICK IM18-05B-N-ZW0 NAMUR Proximity Sensor is available for immediate purchase, ideal for industrial automation and hazardous area applications.
