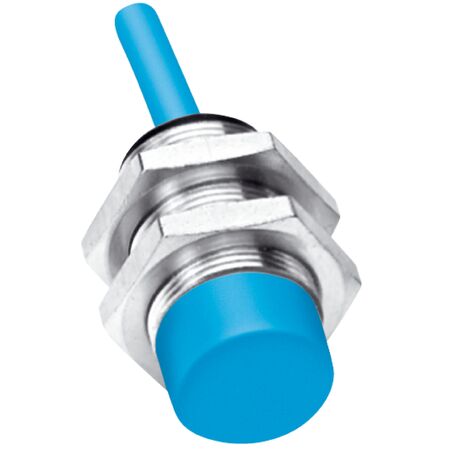

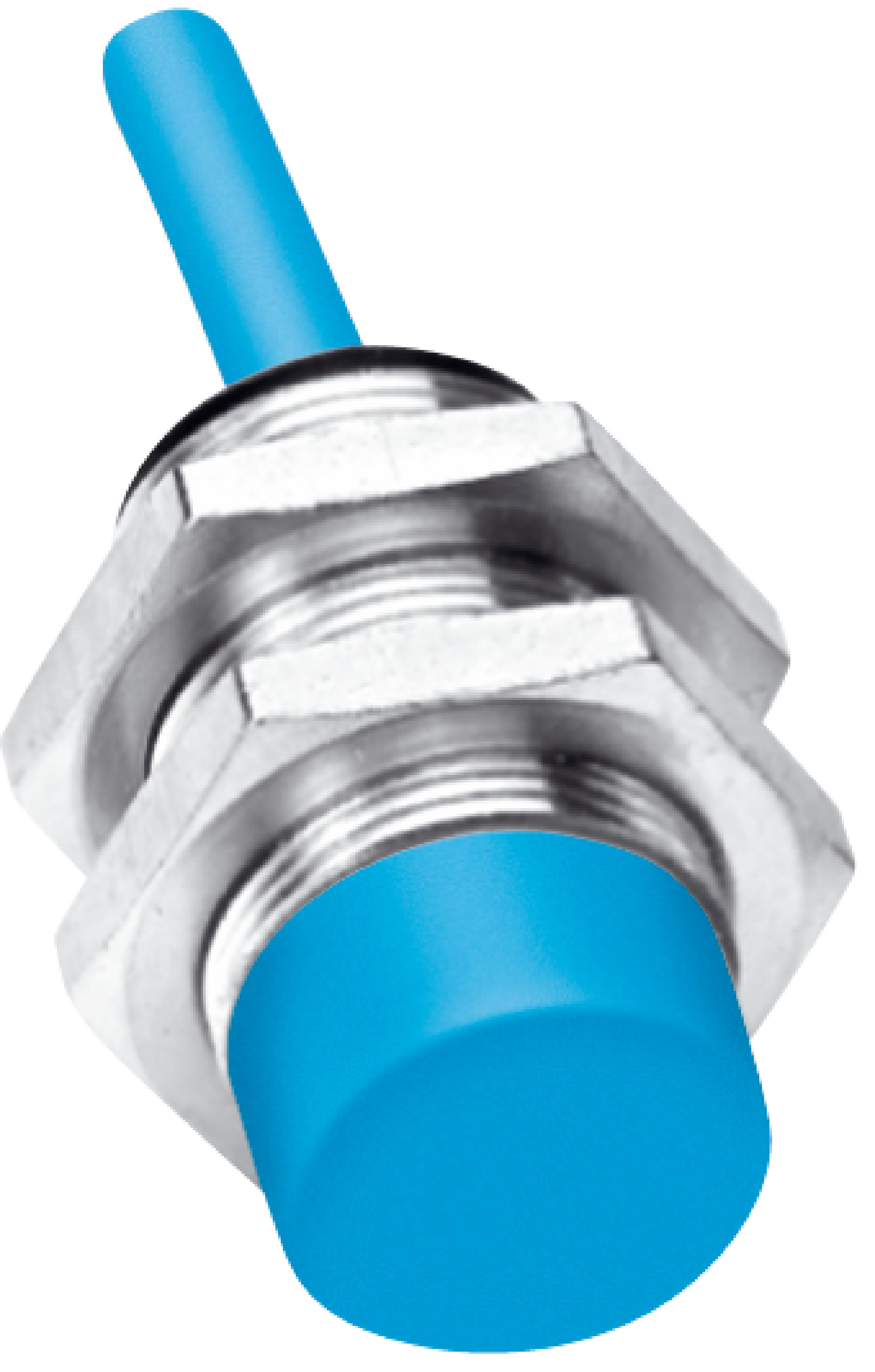

NAMUR Proximity Sensor M18 | IP67 Rated | 8mm Sensing Range | 300Hz Switching Frequency | by SICK
The NAMUR Proximity Sensor M18 is designed for use in explosive areas, featuring an 8mm sensing range and IP67 rated enclosure for dust and water protection. With a robust brass housing and a switching frequency of up to 300 Hz, this sensor is perfect for industrial automation and object detection applications, ensuring safety and reliability in hazardous environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.5 V DC to 25 V DC
- Switching frequency: 300 Hz
- Current consumption: ≤ 1 mA when activated, ≥ 2.2 mA when not activated
- Hysteresis: 1% to 15%
- Temperature drift of sensing range: ±10%
- Cable: 2-wire, 2 m length, PVC material, 0.5 mm² conductor size
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -20 °C to +70 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PTB certified
- Thread size: M18 x 1
- Enclosure rating: IP67
- Switching output: NAMUR, NC function
- Type approval certificate: PTB 03 ATEX 2037
- Ex area category: 1G, 2G
- Device labeling: II 1G Ex ia IIC T6 Ga Ta –20 °C to +70 °C, II 2G Ex ia IIC T6 Gb Ta –20 °C to +70 °C
- Dimensions (H x L x W): 33mm x 64mm x 18mm
- Weight: 0.164 kg
Key Features
- Metric M18 x 1 housing with 18 mm diameter
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- Switching frequency up to 300 Hz
- NAMUR switching output with NC function
- IP67 rated enclosure for dust and water protection
- Suitable for explosive areas with ATEX certification
- Supplied with two brass, nickel-plated mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with intrinsic safety and explosion protection standards.
Applications
- Use in explosive areas requiring intrinsic safety
- Industrial automation for object detection
- Non-flush mounting sensing applications
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption with supply voltage from 7.5 V to 25 V DC
- Durable brass housing with nickel plating for long service life
- Certified for use in explosive atmospheres reducing risk of environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IM18-08N-N-ZW0 NAMUR Proximity Sensor is available for immediate purchase, ideal for industrial automation in hazardous and explosive environments.
