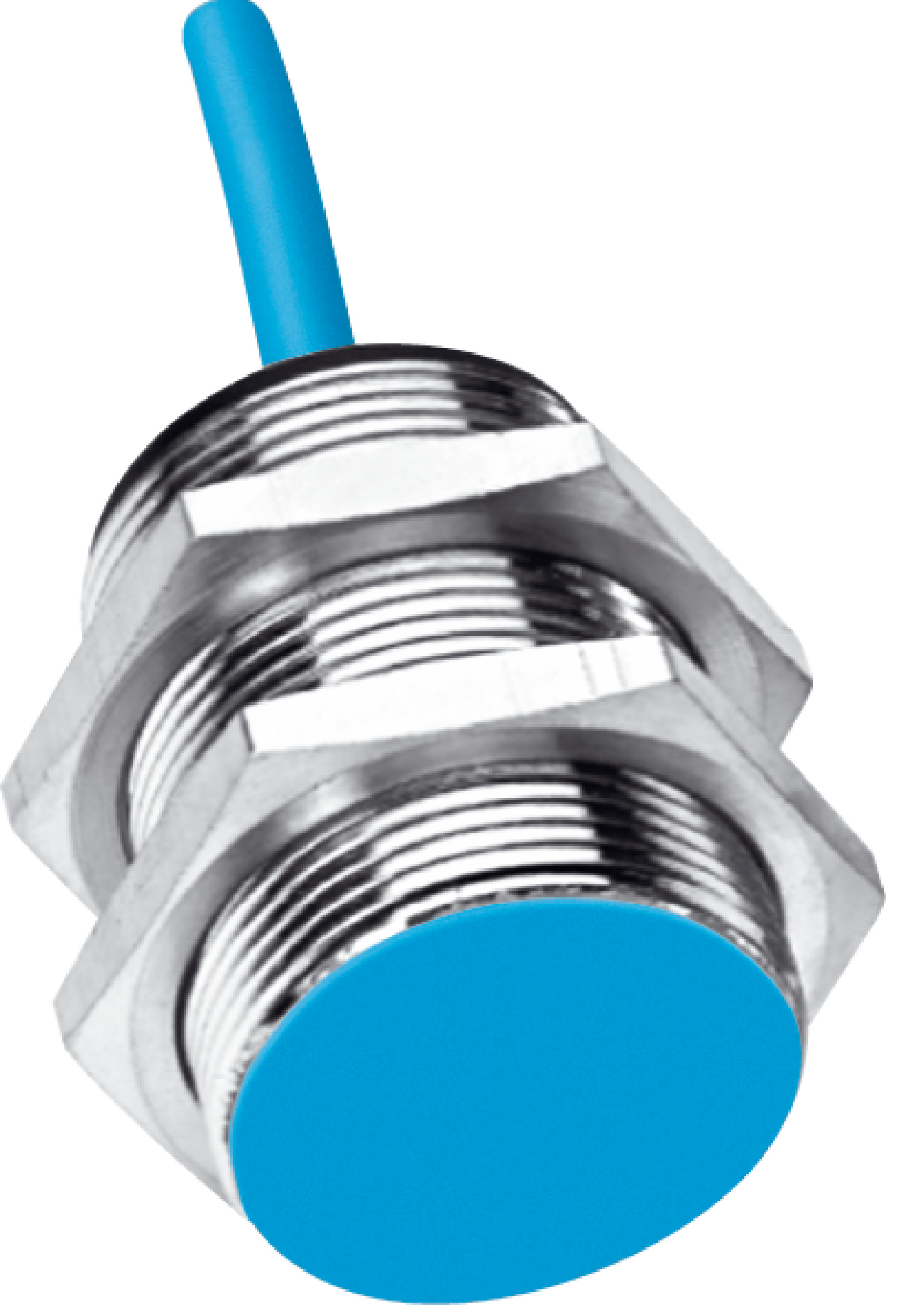

NAMUR Proximity Sensor M30 | 10 mm Sensing Range | IP67 Rated | ATEX Certified | by SICK
The NAMUR Proximity Sensor M30 is designed for industrial automation, featuring a 10 mm sensing range and an IP67 rated enclosure for dust and water protection. Ideal for use in explosive areas, this sensor ensures reliable performance with a switching frequency of 450 Hz and a flush installation type, making it perfect for detecting metal objects in machinery and equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M30 x 1.5 thread
- Diameter: 30 mm
- Sensing range Sn: 10 mm
- Safe sensing range Sa: 8.1 mm
- Installation type: Flush
- Switching frequency: 450 Hz
- Connection type: Cable, 2-wire, 2 m
- Switching output: NAMUR, NC function
- Enclosure rating: IP67
- Supply voltage: 7.5 V DC to 25 V DC
- Hysteresis: 1% to 15%
- Temperature drift: ±10%
- Current consumption activated: ≤ 1 mA
- Current consumption not activated: ≥ 2.2 mA
- Cable material: PVC, diameter 5.4 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Operating temperature: -20 °C to +70 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PTB
- Tightening torque max: 50 Nm
- Weight: 233 g
- ATEX certification: PTB 03 ATEX 2037, Ex area category 1G, 2G
- Dimensions (H x L x W): 41mm x 41mm x 30mm
- Weight: 0.233 kg
Key Features
- Metric M30 x 1.5 thread housing
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Flush installation type
- Switching frequency of 450 Hz
- NAMUR switching output with NC function
- IP67 rated enclosure for dust and water protection
- Suitable for explosive areas with ATEX certification
- Supplied with two nickel-plated brass mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ATEX certified equipment and electrical safety standards.
Applications
- Industrial automation for detecting metal objects
- Use in explosive areas requiring ATEX certification
- Flush installation in machinery and equipment
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption with supply voltage from 7.5 V to 25 V DC
- Durable brass housing extends product life reducing waste
- Certified for use in explosive environments enhancing safety and reducing risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

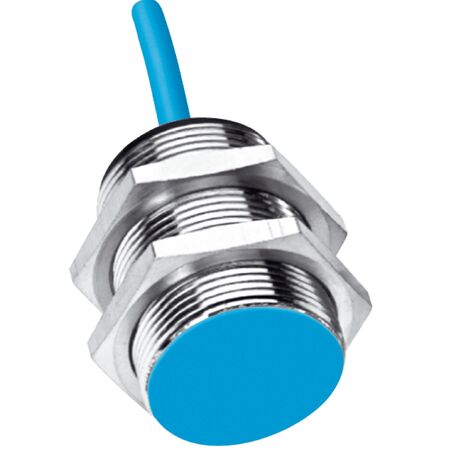

The SICK IM30-10B-N-ZW0 NAMUR Proximity Sensor is available for immediate purchase, ideal for industrial automation and hazardous area applications.
