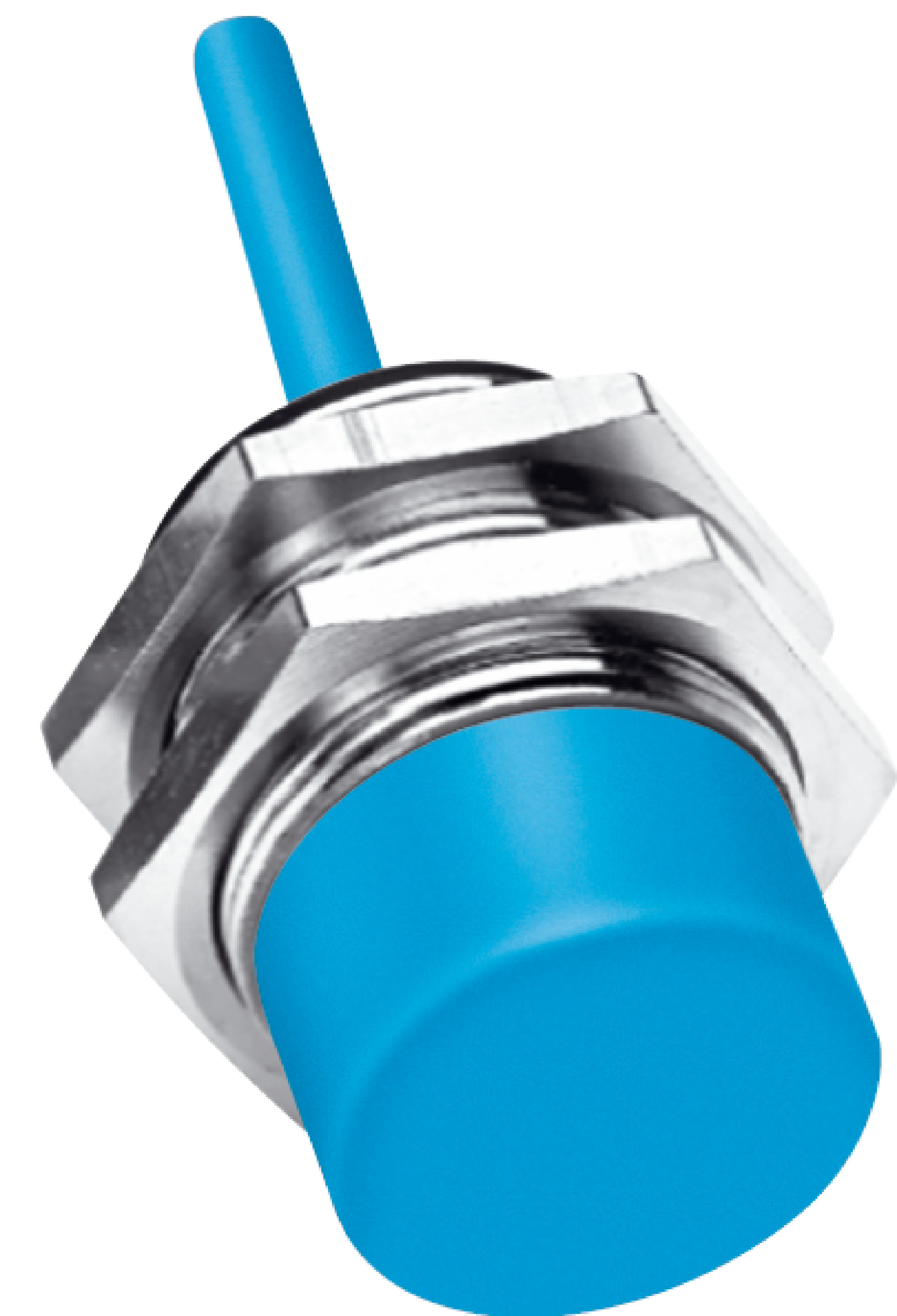

NAMUR Proximity Sensor M30 | 15 mm Sensing Range | IP67 Rated | Non-Flush Installation | by SICK
The NAMUR Proximity Sensor M30 is designed for reliable sensing in explosive environments, featuring a 15 mm sensing range and an IP67 rated enclosure for dust and water protection. Ideal for industrial automation and machinery applications, this sensor ensures safety with its ATEX certification and low power consumption, making it a perfect choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M30 x 1.5 thread
- Diameter: 30 mm
- Sensing range Sn: 15 mm
- Safe sensing range Sa: 12.15 mm
- Installation type: Non-flush
- Switching frequency: 200 Hz
- Connection type: Cable, 2-wire, 2 m
- Switching output: NAMUR, NC function
- Enclosure rating: IP67
- Supply voltage: 7.5 V DC to 25 V DC
- Hysteresis: 1% to 15%
- Temperature drift of Sr: ±10%
- EMC: According to EN 60947-5-6
- Current consumption activated: ≤ 1 mA
- Current consumption not activated: ≥ 2.2 mA
- Cable material: PVC, diameter 5.4 mm
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Operating temperature: -20 °C to +70 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PTB
- Tightening torque max: ≤ 50 Nm
- Weight: approx. 220 g
- Type approval certificate: PTB 03 ATEX 2037
- Ex area category: 1G, 2G
- Device labeling: II 1G Ex ia IIC T6 Ga Ta –20 °C to +70 °C, II 2G Ex ia IIC T6 Gb Ta –20 °C to +70 °C
- Dimensions (H x L x W): 41mm x 41mm x 30mm
- Weight: 0.22 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Non-flush installation type
- Switching frequency of 200 Hz
- NAMUR switching output with NC function
- IP67 rated enclosure for dust and water protection
- Suitable for explosive areas with ATEX certification
- Supplied with two brass, nickel-plated mounting nuts
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with ATEX certified equipment and explosive area safety standards.
Applications
- Explosive areas requiring safe sensing solutions
- Industrial automation with non-flush mounting
- Machinery requiring NAMUR switching output sensors
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption with input power max 120 mW
- Durable brass housing extends product life reducing waste
- Certified for use in explosive environments enhancing safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now

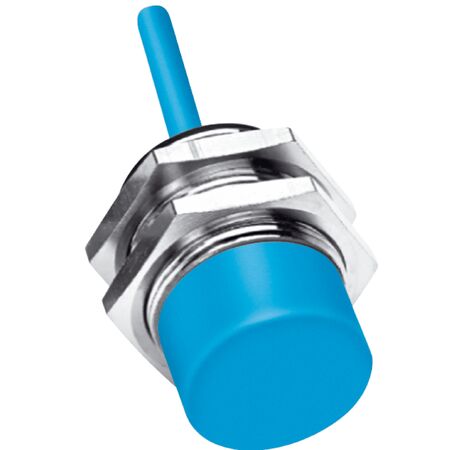

The SICK IM30-15N-N-ZW0 NAMUR Proximity Sensor is available for immediate purchase, ideal for industrial and explosive environment applications.
