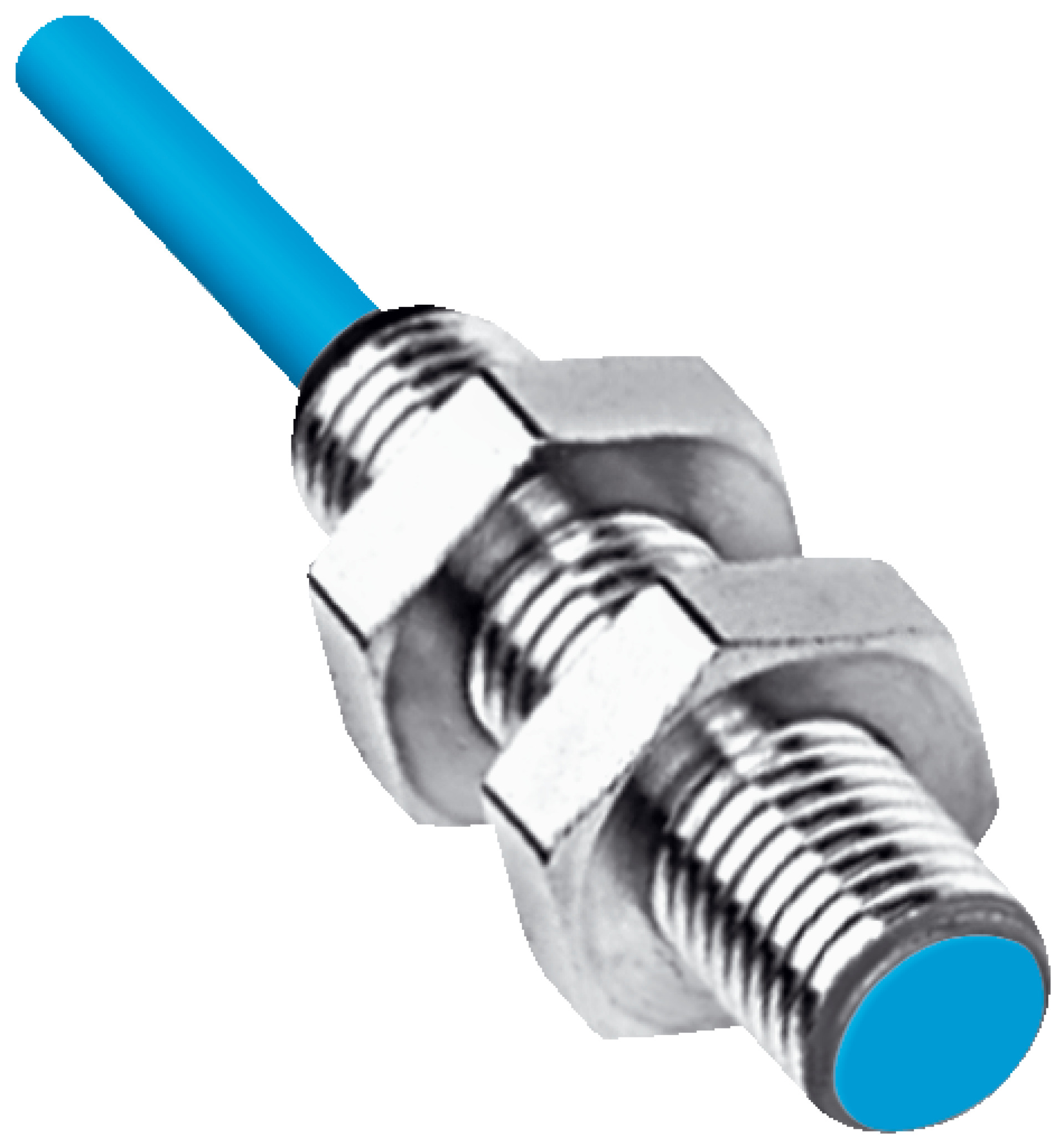

NAMUR Proximity Sensor M8 | IP67 Rated | 1 mm Sensing Range | 2000 Hz Switching Frequency | by SICK
The NAMUR Proximity Sensor M8 is designed for precise position detection in industrial automation, featuring a 1 mm sensing range and a robust IP67 rated enclosure for dust and water protection. With a high switching frequency of 2,000 Hz and ATEX certification for explosive areas, this sensor is perfect for machine safety and control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M8 x 1 thread, 8 mm diameter
- Sensing range Sn: 1 mm, Safe sensing range Sa: 0.81 mm
- Switching frequency: 2,000 Hz
- Connection type: 2-wire cable, 2 m length
- Switching output: NAMUR, Normally Closed (NC)
- Enclosure rating: IP67
- Supply voltage: 7.5 V DC to 25 V DC
- Current consumption activated: ≤ 1 mA, not activated: ≥ 2.2 mA
- Cable material: PVC, diameter 3.5 mm
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Operating temperature: -20 °C to +70 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PTB certified
- Weight: approximately 94 g
- ATEX certified for explosive areas (II 1G Ex ia IIC T6 Ga)
- Dimensions (H x L x W): 30mm x 30mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric M8 x 1 housing with 8 mm diameter
- Flush installation type
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- Switching frequency up to 2,000 Hz
- NAMUR switching output with NC function
- IP67 rated enclosure for dust and water protection
- Suitable for explosive areas with ATEX certification
- Supplied with two brass, nickel-plated mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ATEX certified equipment and electrical safety standards.
Applications
- Industrial automation for position detection
- Explosive area sensing applications
- Machine safety and control systems
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption with supply voltage from 7.5 V to 25 V DC
- Durable brass nickel-plated housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

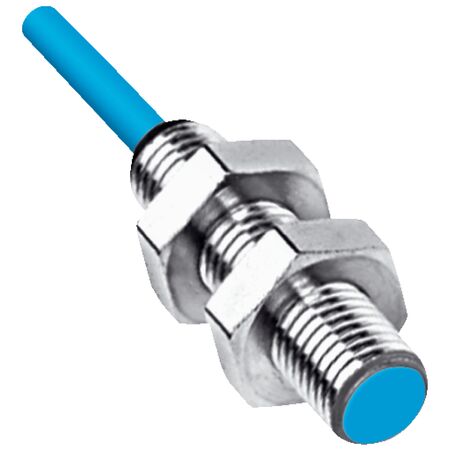

The SICK IM08-01B-N-ZW0 NAMUR Proximity Sensor is available for immediate purchase, ideal for industrial automation and explosive area sensing applications.
