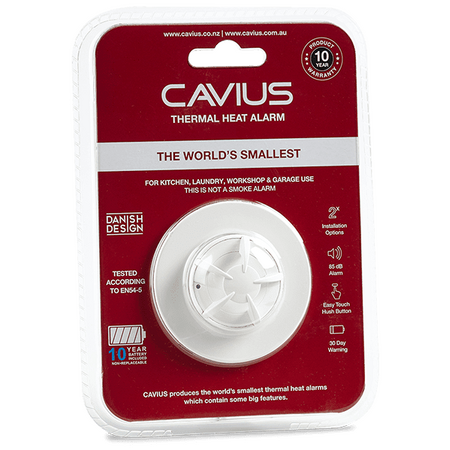

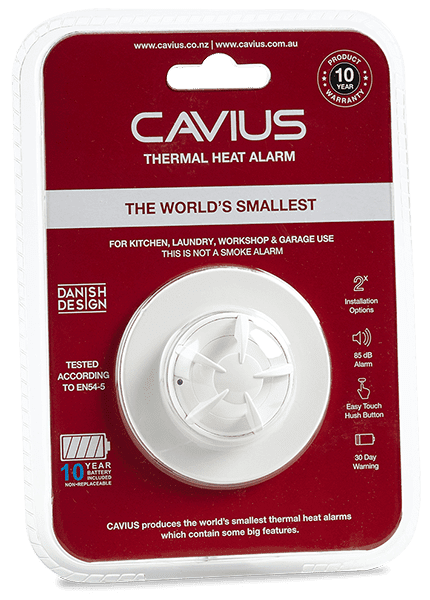

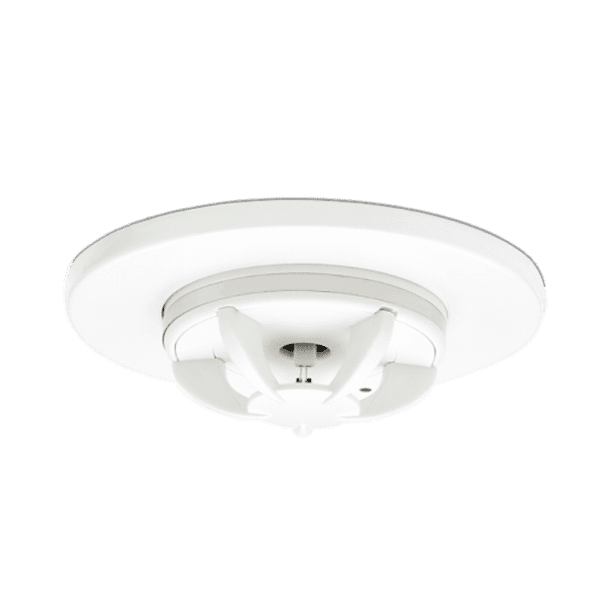

Nano 10 Year Battery Operated Thermal Heat Alarm | World's Smallest at 40mm | 85dB Sound Level | Intelligent Test Button | by Cavius
The Nano 10 Year Battery Operated Thermal Heat Alarm is designed for reliable heat detection in residential and commercial settings. With a compact 40mm diameter, it features a long-life sealed Duracell battery and an 85dB sound level, making it ideal for kitchens, garages, and workshops. Its intelligent test button ensures functionality, while the easy installation options provide flexibility for any space.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nano 10 Year Battery Operated Thermal Heat Alarm | World's Smallest at 40mm | 85dB Sound Level | Intelligent Test Button | by Cavius
Brand: Cavius
SKU: 3004 CAVTH10
Alternatively Known As: Thermal Heat Alarm, Heat Detector Alarm, 10 Year Heat Alarm, Battery Operated Heat Alarm
Technical Specifications
- Sensor Type: Thermistor heat detection
- Battery: Duracell Lithium CR123A 3V, 1600mAh (sealed)
- Sound Level: 85dB at 3 meters
- Operating Temperature: +4ºC to +38ºC
- Maximum Humidity: 95% RH non-condensing
- Dimensions: 40mm diameter
- Profile: 19mm recessed ceiling, 44mm flush mount
- Certifications: CE EN60065, EN54-5, RoHS, REACH
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- World’s smallest heat alarm at 40mm diameter
- 10-year long-life sealed Duracell Lithium battery
- 85dB sound level at 3 meters
- Intelligent test button for thermistor and software functionality
- 10-minute hush button to silence nuisance alarms
- 30-day low battery alert
- Easy installation with smart-clip ceiling mechanism
- Ceiling or wall installation with recessed or flush mount options
- Tested to EN54-5 standard
- Thermistor heat detection sensor
Professional Installation Requirements
- Professional installation is recommended to ensure correct placement and compliance with safety standards.
Applications
- Residential kitchens, garages, workshops, laundries
- Commercial kitchens and small workspaces requiring heat detection
- Areas prone to fast flaming fires where smoke alarms are unsuitable
Standards & Compliance
- Complies with AS/NZS 1670.1 for fire detection and alarm systems - System design, installation and commissioning
Environmental Benefits
- Long-life sealed battery reduces battery waste and replacement frequency
- Energy-efficient design minimizes power consumption
Warranty Information
10 years warranty covering the battery and device functionality.
Available Now
The Cavius Nano 10 Year Battery Operated Thermal Heat Alarm is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable heat detection.
