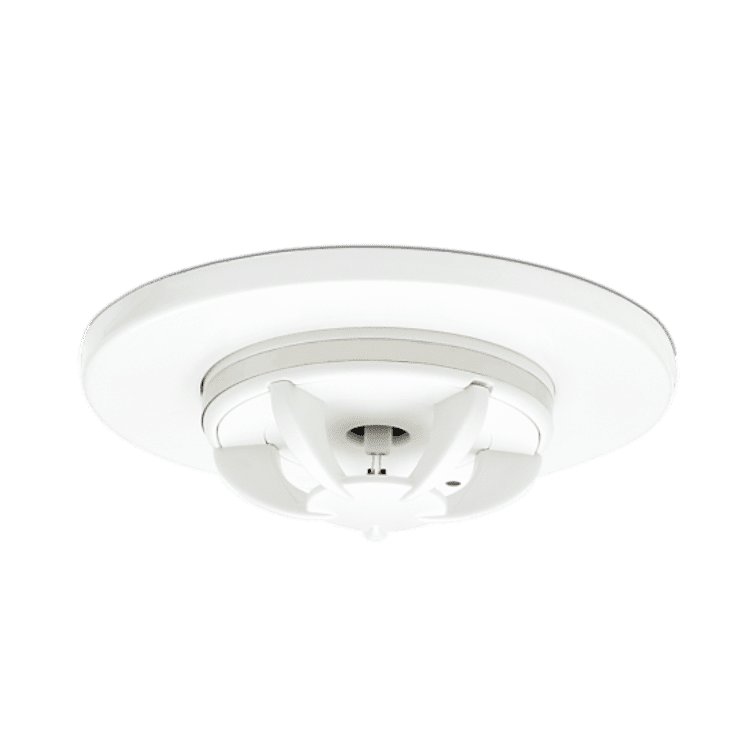

Nano 10 Year Thermal Heat Alarm 58C 40mm Sealed Battery Cavius

BRAND: Cavius
SKU: 3004 CAVTH10
$43.00 List price: $57.30
+ −
30 Days Return Electricians Unlock Trade Access
Cavius Nano 10yr thermal heat alarm, sounds above 58C, 40mm, sealed battery, 85dB. For kitchens, garages, laundries and workshops.

Alternatively Known As: Cavius 3004 CAVTH10, Nano 10 Year Thermal Heat Alarm, 40mm Cavius Heat Alarm

Technical Specifications
  • Product Code: 3004 CAVTH10
  • Alarm Type: Thermal heat alarm
  • Detection: Rapid temperature increase or temperature above 58°C
  • Battery: Sealed CR123A Lithium 3V 1600mAh
  • Battery Life: Minimum 10 years under normal conditions
  • Sound Level: 85dB at 3 metres
  • Diameter: 40mm
  • Profile: 14mm recessed / 37mm standard mount
  • Dimensions (H x L x W): 37mm x 40mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Ultra-compact 40mm design
  • 10-year sealed lithium battery
  • Thermal heat detection
  • Triggers when temperature exceeds 58°C
  • Detects rapidly increasing temperature
  • 85dB alarm sound level
  • 10-minute hush button
  • 30-day low battery warning
  • Smart-clip ceiling mounting mechanism
Professional Installation Requirements
  • Install according to the manufacturer's instructions and applicable heat alarm installation requirements.
Applications
  • Kitchens
  • Garages
  • Workshops
  • Laundries
  • Areas unsuitable for smoke alarms
  • Residential heat detection
Standards & Compliance
  • Tested according to EN54-5 heat alarm requirements.
  • CE certified.
  • RoHS compliant.
  • REACH compliant.
Environmental Benefits
  • 10-year battery life reduces battery replacement frequency
  • Long-life design helps reduce replacement waste
  • Compact design uses less material than larger alarm housings
Warranty Information

Warranty information should be confirmed with Cavius Australia or the authorised distributor.

Available Now

Available from Cavius Australia and authorised distributors.

Smoke Alarm Placement Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
