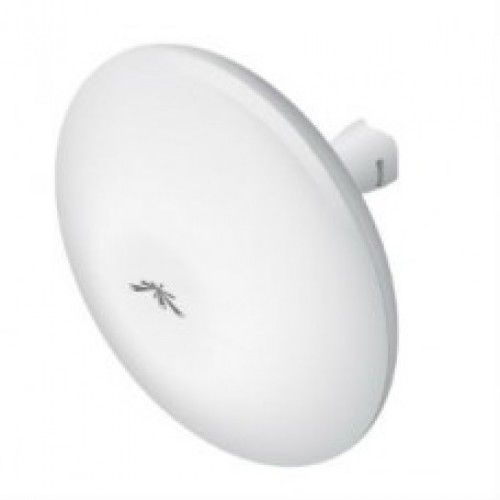

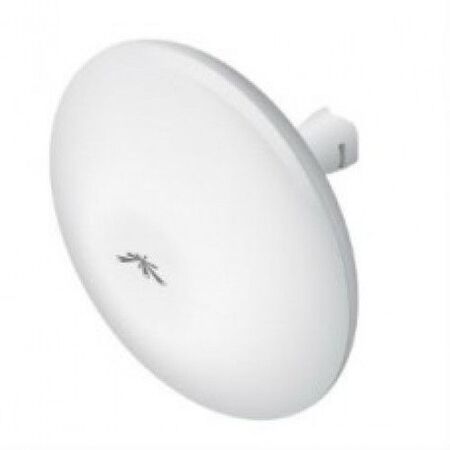

NanoBeam AC Wireless CPE 5GHz 450+ Mbps 15+ km Range Ness
Ness NanoBeam AC wireless CPE features 5GHz operation, 450+ Mbps speed and 15+ km range. Ideal for point to point wireless links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: NanoBeam AC, NBE-5AC-Gen2, NanoBeam NBE-AC-19, 5 GHz point-to-point wireless bridge
Technical Specifications
- Model: NBE-5AC-Gen2
- Wireless Technology: airMAX ac
- Frequency Range: 5150–5875 MHz
- Maximum Throughput: 450+ Mbps, application dependent
- Antenna Gain: 19 dBi
- Operating Modes: Access Point and Station
- Channel Widths: 10/20/30/40/50/60/80 MHz in PtP mode; 10/20/30/40 MHz in PtMP mode
- Networking Interface: 2 x Gigabit RJ45 Ethernet ports
- Power Method: 24 V passive PoE, 0.5 A adapter included
- Maximum Power Consumption: 8.5 W
- Enclosure: UV-stabilised polycarbonate
- Operating Temperature: -40 °C to 80 °C
- Operating Humidity: 5–95% non-condensing
- Wind Survivability: 200 km/h
- Certifications: CE, FCC and IC
- RoHS Compliance: Yes
- Dimensions (H x L x W): 125mm x 189mm x 189mm
- Weight: 0.53 kg
Key Features
- Designed for long-range 5 GHz point-to-point wireless links
- 450+ Mbps maximum wireless data rate under suitable link conditions
- Integrated 19 dBi directional antenna
- Two Gigabit Ethernet ports with passive PoE power input
- Pole mount included; optional wall mounting supported
- Wi-Fi management radio for local configuration
- UV-stabilised outdoor enclosure
- Enhanced surge protection and airMAX ac operating mode
- Ness catalogue reference: 101-748; available by customer order
Professional Installation Requirements
- Professional installation is recommended for outdoor mounting, line-of-sight alignment, grounding, surge protection and configuration of the PoE-powered wireless link. No refrigerant or high-voltage electrical connection is involved.
Applications
- Point-to-point building-to-building network links
- Wireless backhaul for security cameras and remote sites
- Connecting warehouses, workshops or outbuildings to an existing LAN
- Long-range wireless internet distribution and WISP deployments
- Point-to-multipoint client connectivity where compatible airMAX equipment is used
Standards & Compliance
- AS/NZS 4268:2017 Amd 1:2021 is the referenced Australian/New Zealand radio-equipment test standard for applicable short-range equipment; Australian deployment must also meet ACMA technical requirements and the applicable low-interference-potential-device class licence. ([acma.gov.au](https://www.acma.gov.au/technical-standards))
Environmental Benefits
- RoHS-compliant construction restricts specified hazardous substances. ([ca.store.ui.com](https://ca.store.ui.com/ca/en/category/wireless-airmax-5ghz/products/nanobeam-5ac))
- Low maximum power consumption of 8.5 W can reduce operating energy use. ([ca.store.ui.com](https://ca.store.ui.com/ca/en/category/wireless-airmax-5ghz/products/nanobeam-5ac))
- UV-stabilised outdoor housing and tested wind, vibration, temperature-shock and rain resistance can extend service life and reduce replacement waste. ([ca.store.ui.com](https://ca.store.ui.com/ca/en/category/wireless-airmax-5ghz/products/nanobeam-5ac))
Warranty Information
Ness states that Ness-manufactured or supplied products are covered for 3 years from the date of purchase unless otherwise specified. Warranty claims are subject to Ness terms, exclusions and Australian Consumer Law. ([ness.com.au](https://ness.com.au/product-warranty))
Available Now
Available through Ness and authorised Australian distributors by customer order; confirm current stock and lead time with the supplying branch. ([ness.com.au](https://ness.com.au/networking-wireless-wired))
