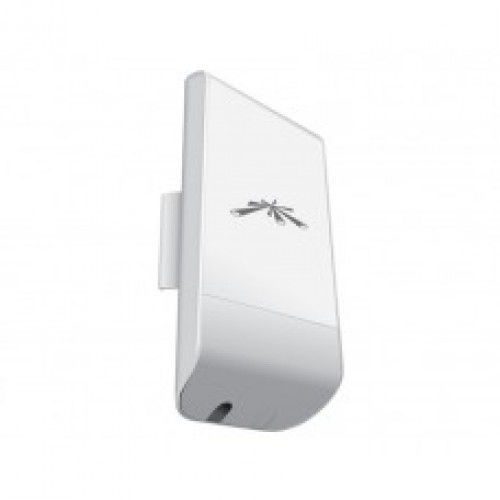

NanoStation 2.4GHz Wireless Link 150+ Mbps 5+ km Range Ness
Ness NanoStation wireless link features 2.4GHz operation, 150+ Mbps speed and 5+ km range. Ideal for point to point wireless links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ubiquiti airMAX NanoStation locoM2, NanoStation M2 loco, 2.4 GHz Outdoor Wireless CPE
Technical Specifications
- Wireless Frequency: 2.4 GHz
- Operating Frequency: 2412–2462 MHz
- Throughput: 150+ Mbps
- Range: 5+ km
- Wireless Technology: 2x2 MIMO airMAX TDMA
- Antenna Gain: 8.5 dBi
- Network Interface: 1 x 10/100 Ethernet port
- Beamwidth: 60° horizontal, vertical and elevation
- Power Method: Passive PoE
- Power Supply: 24 V PoE adapter included
- Maximum Power Consumption: 5.5 W
- Operating Temperature: -30°C to 75°C
- Operating Humidity: 5–95% non-condensing
- Enclosure: Outdoor UV-stabilised plastic
- Mounting: Pole-mount kit included
- Dimensions (H x L x W): 31mm x 163mm x 80mm
- Weight: 0.18 kg
Key Features
- Designed for point-to-point wireless bridging over distances up to 5 km
- 150+ Mbps wireless throughput for data and video networking
- Integrated 2x2 MIMO directional antenna
- airMAX TDMA technology for improved outdoor link efficiency
- Outdoor UV-stabilised enclosure
- Passive PoE power with included 24 V adapter
- Suitable for wireless connectivity to remote buildings and surveillance systems
Professional Installation Requirements
- Professional installation is recommended. Configure and install the wireless link by a suitably qualified network installer in accordance with the manufacturer's instructions, local ACMA requirements and applicable radio-frequency limits.
Applications
- Point-to-point wireless network bridging
- Connecting remote buildings, workshops or outbuildings
- Wireless connectivity for video surveillance systems
- Outdoor broadband and network extension
- airMAX customer-premises equipment deployments
Standards & Compliance
- AS/NZS 4268:2017 for applicable Australian/New Zealand short-range radio equipment testing and measurement requirements
Environmental Benefits
- Low maximum power consumption of 5.5 W helps reduce operating energy use
- Outdoor UV-stabilised construction supports extended service life and reduces replacement waste
- Long-distance wireless bridging can reduce the need for new inter-building copper or fibre cabling in suitable installations
Warranty Information
Ness supplied products are generally covered by a 3-year warranty from the date of purchase against manufacturing defects, subject to Ness warranty terms and exclusions.
Available Now
Available through Ness and authorised Australian distributors; confirm current stock before ordering.
