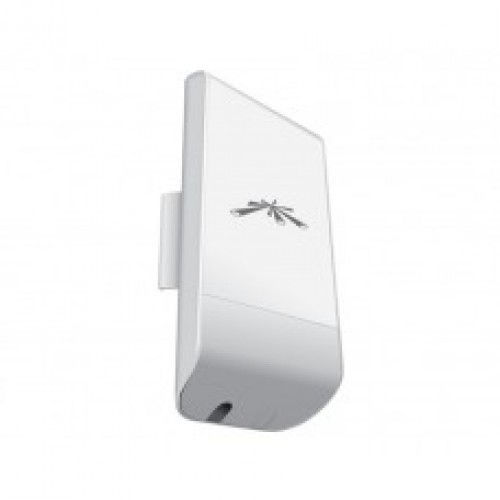

NanoStation 5GHz Wireless Link 150+ Mbps 10+ km Range Ness
Ness NanoStation wireless link features 5GHz operation, 150+ Mbps speed and 10+ km range. Ideal for point to point wireless links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ubiquiti NanoStation LocoM5, LocoM5, 5GHz airMAX Outdoor CPE, Wireless Point-to-Point Bridge
Technical Specifications
- Model: LocoM5
- Wireless Frequency: 5 GHz
- Wireless Standard: IEEE 802.11a/n
- Throughput: 150+ Mbps real outdoor throughput
- Range: 10+ km, subject to antenna alignment and environmental conditions
- Networking Interface: 1 x 10/100 Mbps RJ45 Ethernet port
- Antenna Gain: 13 dBi integrated dual-linear antenna
- Antenna Beamwidth: 45° horizontal, 45° vertical and 45° elevation
- Power Method: 24 V passive PoE, 2-pair
- Maximum Power Consumption: 5.5 W
- Operating Temperature: -30°C to 75°C
- Operating Humidity: 5% to 95% non-condensing
- Enclosure: Outdoor UV-stabilised polycarbonate
- Mounting: Pole mount included
- Environmental Compliance: RoHS
- Dimensions (H x L x W): 31mm x 161mm x 80mm
- Weight: 0.18 kg
Key Features
- 5 GHz outdoor wireless link for long-distance network connectivity
- 150+ Mbps real outdoor throughput
- 10+ km operating range for suitable line-of-sight installations
- Integrated airMAX technology for efficient outdoor wireless networking
- 2x2 MIMO with integrated 13 dBi dual-linear antenna
- Suitable for point-to-point bridging and point-to-multipoint deployments
- Software-enabled PoE output for powering a compatible external device
- UV-stabilised outdoor enclosure
- 24 V passive PoE adaptor included
Professional Installation Requirements
- Installation should be performed by a qualified network or electrical technician. Mount the unit with a clear line of sight, configure the wireless link and passive PoE correctly, and ensure operation complies with applicable ACMA frequency, power and interference requirements.
Applications
- Point-to-point wireless network bridging
- Connecting remote buildings or site offices
- Wireless backhaul for IP video surveillance systems
- Outdoor airMAX CPE deployments
- Extending Ethernet connectivity between separate locations
Standards & Compliance
- AS/NZS 4268:2017 with Amendment 1:2021 for applicable radio equipment performance and measurement requirements
- AS/NZS 60950.1 for information technology and communications equipment safety, as listed for this product by the Australian distributor
Environmental Benefits
- Low maximum power consumption of 5.5 W helps reduce operating energy use
- RoHS compliance restricts the use of certain hazardous substances
- UV-stabilised outdoor enclosure supports extended service life and reduces replacement waste
- Designed for reusable network infrastructure applications, reducing the need for new cable runs between remote locations
Warranty Information
Ness supplied products are covered by a 3-year warranty from the date of purchase against defects, unless otherwise specified. Products are repaired or replaced at Ness Corporation's discretion, subject to warranty conditions and exclusions.
Available Now
Available through Ness and authorised Australian distributors, subject to current stock and product lifecycle status.
