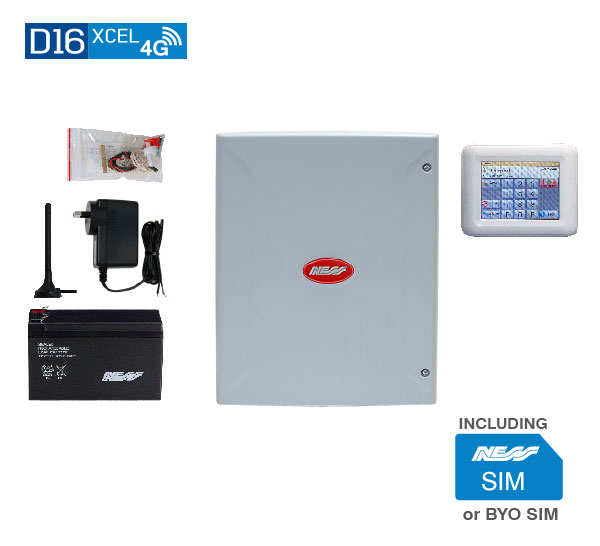

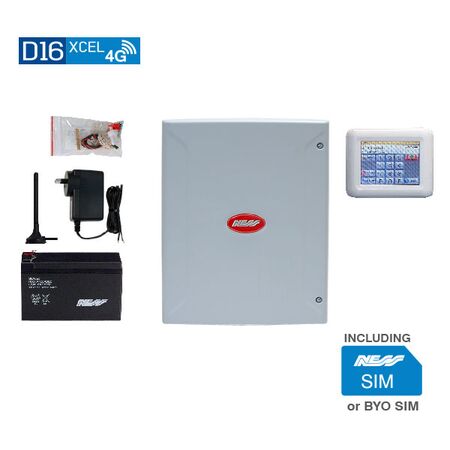

Navigator Security Keypad to Suit D16X4G Ness

BRAND: Ness
SKU: K-9323
$755.40 List price: $1,007.20
+ −
30 Days Return Electricians Unlock Trade Access
Ness Navigator security keypad features D8/D16XCEL 4G compatibility and secure reporting, to Suit D16X4G. Ideal for alarm system installs.

Alternatively Known As: Ness Navigator Touch Screen Keypad, Ness 106-101 Navigator Keypad, Ness Alarm System Touchscreen Keypad

Technical Specifications
  • Model: 106-101
  • Display: 3.5-inch colour LCD touchscreen
  • Display Resolution: 320 x 240 pixels
  • Operating Voltage: 12V DC supplied by the control panel ([ness.com.au](https://ness.com.au/images/uploaded/Products/106-100/890-411_navigator_installation_rev5c.pdf?utm_source=openai))
  • Current Draw: 25mA at 50% backlighting; 50mA at 100% backlighting ([ness.com.au](https://ness.com.au/images/uploaded/Products/106-100/890-411_navigator_installation_rev5c.pdf?utm_source=openai))
  • Data Interface: 2-wire proprietary Ness data bus
  • Maximum Keypads: Up to 4 Navigator keypads per control panel
  • Compatibility: Ness D8/D16XCEL 3G and 4G, DPlus, and D8x/D16x panels version 7 and later ([ness.com.au](https://ness.com.au/nav-106-101?utm_source=openai))
  • Supplied Items: Keypad, wiring loom and manual ([ness.com.au](https://ness.com.au/nav-106-101?utm_source=openai))
  • Dimensions (H x L x W): 86mm x 15mm x 108mm
  • Weight: 0.2 kg
Key Features
  • Touchscreen user interface with plain-English prompts
  • Colour display for zone status, system alarms and user prompts
  • Supports arming, home mode, zone exclusion, event memory and emergency functions
  • Displays cellular signal strength when connected to compatible XCEL 4G panels
  • Compatible with Ness D16XCEL 4G control panels
  • Wall-mountable design with included wiring loom
  • Supports up to four Navigator keypads per compatible panel
Professional Installation Requirements
  • Installation and connection should be performed by a suitably qualified security-system installer in accordance with the control-panel installation instructions and applicable Australian requirements. The keypad connects to a 12V DC alarm panel and is not a standalone device.
Applications
  • Residential security alarm systems
  • Commercial intruder alarm systems
  • Ness D16XCEL 4G alarm panel installations
  • Replacement or additional keypad installations for compatible Ness control panels
Standards & Compliance
  • AS/NZS 2201.1:2007 — Intruder alarm systems, client premises design, installation, commissioning and maintenance; applicable to the installed alarm system rather than a stated product certification ([intertekinform.com](https://www.intertekinform.com/en-au/standards/product-details-117334_saig_as_as_245553/?utm_source=openai))
Environmental Benefits
  • Low-voltage 12V DC operation reduces reliance on mains-connected equipment at the keypad
  • Replaceable keypad component can extend the service life of the wider alarm system and reduce complete-system replacement waste
  • Compact electronic design minimises material use compared with replacing a complete alarm control system
Warranty Information

Ness Corporation’s general warranty provides 3 years from the date of purchase for Ness-manufactured or Ness-supplied products, unless otherwise specified. Warranty claims require return through a Ness Corporation branch and are subject to the published exclusions. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))

Available Now

Available through Ness Corporation and authorised Australian security-system distributors.
