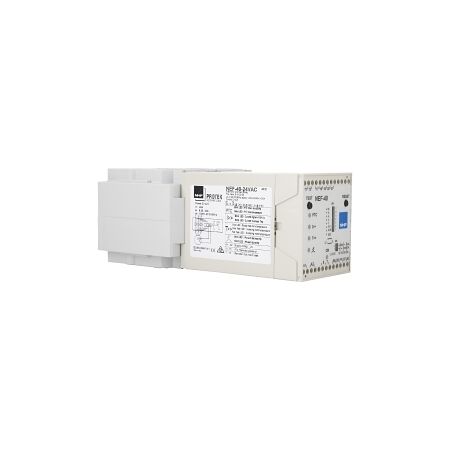

NEF Motor Protection Relay 8.25-40A 24VAC Control NHP
NHP NEF-range electronic motor protection relay, 8.25-40A adjustable current range, 24VAC control supply. For motor overload protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Adjustable current range: 8.25-40 A
- Max rated operation voltage: 1000 V
- Voltage type for actuating: AC
- Control supply voltage: 24 V at AC 50 Hz
- Mounting method: Separate positioning
- Type of electrical connection: Through-feed current converter
- Dimensions (H x L x W): 77mm x 165mm x 127mm
- Weight: 1.5 kg
Key Features
- Adjustable current range from 8.25 to 40 A.
- Automatic and push-button reset functions.
- Includes one normally closed and one changeover auxiliary contact.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in manufacturing and processing plants
- Commercial: Equipment protection in commercial facilities
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design helps reduce power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Motor Protection Relays Overload Electronic 8.25 to 40A 24VAC Control is available now for immediate purchase. Ideal for industrial and commercial applications.
