NEMA 1 Cable Ladder HDG | 3m Length | 248kg/m Load | Hot Dip Galvanised by Ezy Strut

BRAND: EzyStrut
SKU: N1L150H
$133.10 List price: $161.10
Free pick up (over 1 meter)
For delivery quote message
NEMA 1 cable ladder with 3m standard length and 248kg/m load capacity—ideal for industrial and commercial cable management. Built for durability with hot dip galvanised finish and pre-welded tabs for easy vertical installation.

Product Name/Title: N1L150H NEMA 1 Cable Ladder HDG

Brand: Ezy Strut

SKU: N1L150H

Alternatively Known As: NEMA 1 Cable Ladder, Steel Cable Ladder, Hot Dip Galvanised Cable Ladder

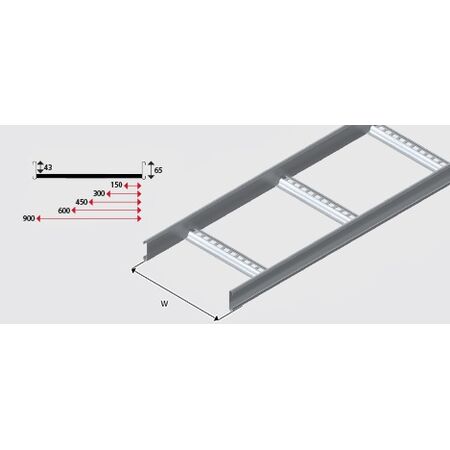

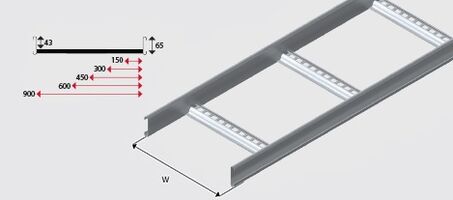

Technical Specifications
  • Cable Laying Depth: 43mm
  • Cable Laying Widths: 150-900mm
  • Standard Length: 3 metres, 6 metres (MTO only)
  • Manufactured to AS/NZS1365, AS1594, AS/NZS4680, ISO1461
  • Supports 248kg/m over a 1.5m span or 112kg/m over a 3m span
  • Dimensions (H x L x W): 65mm x 3000mm x 176mm
  • Weight: 10 kg
Key Features
  • Manufactured from strip steel with hot dip galvanised finish.
  • Meets Nema 12B loading requirements.
  • Available in standard lengths of 3m, with 6m lengths made to order.
  • Pre-welded tabs for vertical installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Cable management in factories and warehouses
  • Commercial: Supporting electrical cabling in commercial buildings
  • General: Suitable for various cable support needs
Standards & Compliance
  • Complies with AS/NZS1365, AS1594, AS/NZS4680, ISO1461 for safety and performance standards.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The N1L150H NEMA 1 Cable Ladder HDG is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable cable support.
