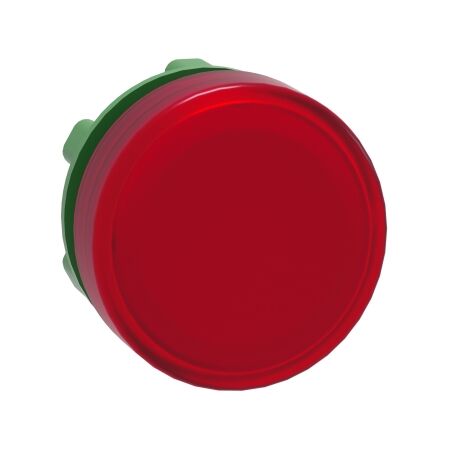

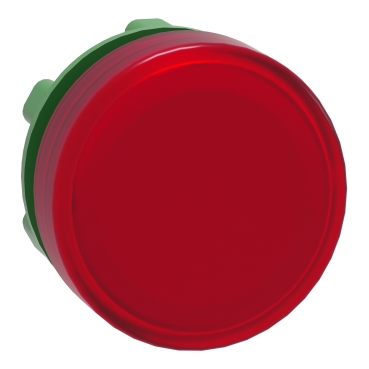

Neon Pilot Light Head | Red LED | 22mm Mounting Diameter | IP20 Rated | by Clipsal
The Neon Pilot Light Head is a red LED indicator designed for clear status indication in industrial control panels and electrical installations. With a 22mm mounting diameter and IP20 rating, it features long-life LED technology for reduced maintenance and a snap-fit design for easy installation. Ideal for licensed electricians, this pilot light ensures high visibility and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Neon Pilot Light Head | Red LED | 22mm Mounting Diameter | IP20 Rated | by Clipsal
Brand: Clipsal
SKU: SCHZB5AV04S
Alternatively Known As: Red LED Pilot Light, Indicator Light Head, Panel Indicator Lamp, Neon Indicator Light, 22mm Pilot Light
Technical Specifications
- Type: Neon Pilot Light Head
- LED Color: Red
- Mounting Diameter: 22mm
- Voltage: 24-240V AC/DC (universal)
- Base: 4-based LED
- Ingress Protection: IP20
- Operating Temperature: -25°C to +70°C
- Dimensions (H x L x W): 30mm x 22mm x 22mm
- Weight: 0.1 kg
Key Features
- Red neon LED pilot light head for clear status indication
- Long-life LED technology for reduced maintenance
- Snap-fit design for easy installation
- Compatible with 22mm diameter mounting holes
- High visibility in control and indicator panels
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Electrical switchboards
- Machinery status indication
- Commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- LED technology reduces energy consumption compared to traditional incandescent indicators.
- Long operational life minimizes replacement waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Neon Pilot Light Head SCHZB5AV04S is available for immediate purchase. Ideal for use in industrial control panels and commercial electrical installations.
