Scout® Pro Max Network Cable Tester | Tests RJ11, RJ12, RJ45 & Coax | 2000 ft Cable Length Measurement | by Wattmaster

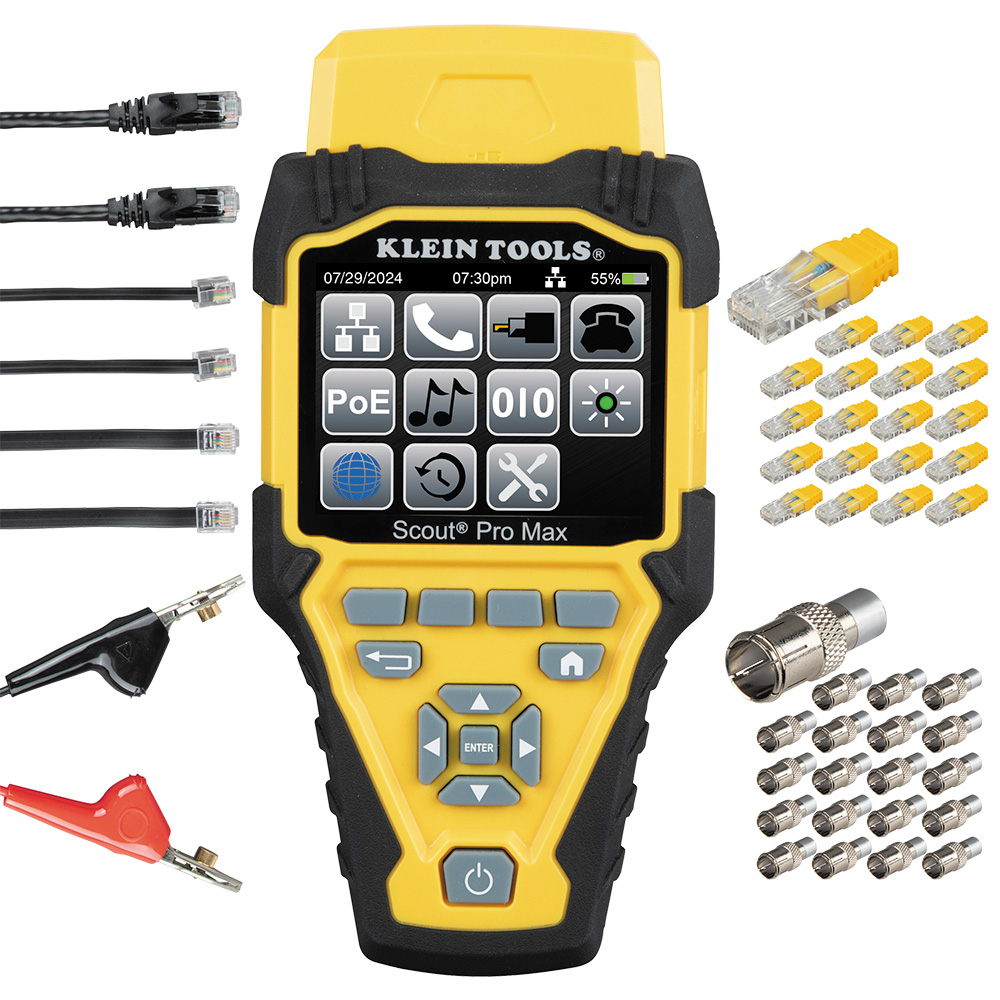

The Scout® Pro Max Network Cable Tester is designed for testing and troubleshooting RJ11, RJ12, RJ45, and coaxial cables. With a full-color backlit LCD and the ability to measure cable lengths up to 2000 feet, it’s perfect for professional network installers and technicians. This versatile tool includes 20 remote locators for efficient cable management and supports both digital and analogue tone generation for precise cable tracing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Scout® Pro Max Network Cable Tester | Tests RJ11, RJ12, RJ45 & Coax | 2000 ft Cable Length Measurement | by Wattmaster
Brand: Wattmaster
SKU: A-VDV501-770
Alternatively Known As: Network Cable Tester, RJ45 Cable Tester, Ethernet Cable Tester, PoE Tester, Cable Fault Locator, TDR Cable Tester
Technical Specifications
- Cable Types: RJ11, RJ12, RJ45, Coax F-connector
- Cable Length Measurement: Up to 2000 feet (610 m) using TDR
- Display: Full colour backlit LCD
- Tone Generation: Digital and analogue (5 styles, requires separate probe)
- Remote Locators: 20 included
- Power: 3× AA alkaline batteries
- Battery Life: 15 hours active, 1 year standby
- Drop Protection: 2 meters
- Accuracy: ± (2% + 3' or 1 m)
- Supported Cable Types: Shielded/unshielded CAT6, coaxial
- Connectivity: USB-C to USB-A cable included for data download
- Weight: 447 g
- Dimensions (H x L x W): 38mm x 203mm x 102mm
- Weight: 0.447 kg
Key Features
- Tests shielded and unshielded cables including CAT6 and coaxial
- Full colour backlit LCD screen with internal memory for storing and downloading test results

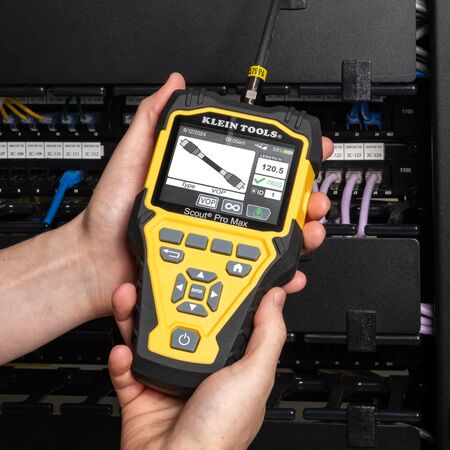

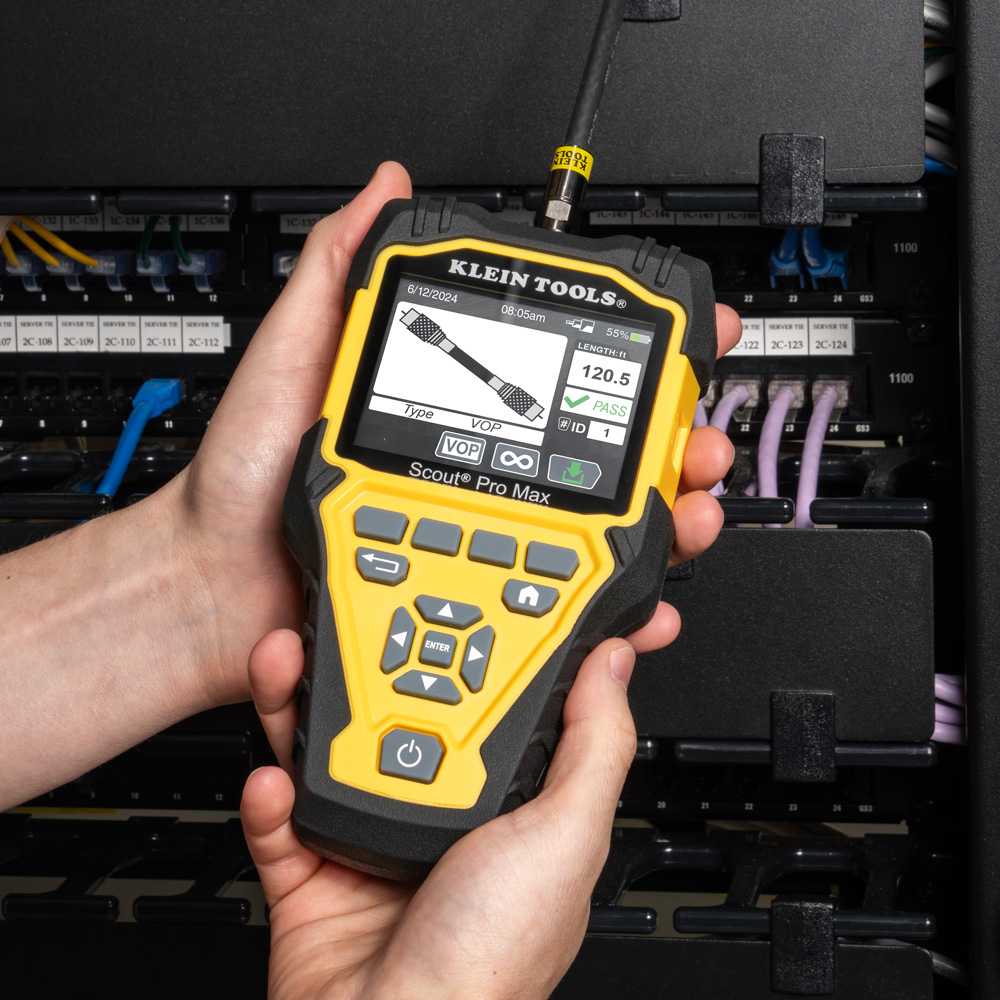

- Measures cable length up to 2000 feet (610 m) and distance to fault using TDR
- Digital and analogue tone generation for cable tracing (requires separate probe)

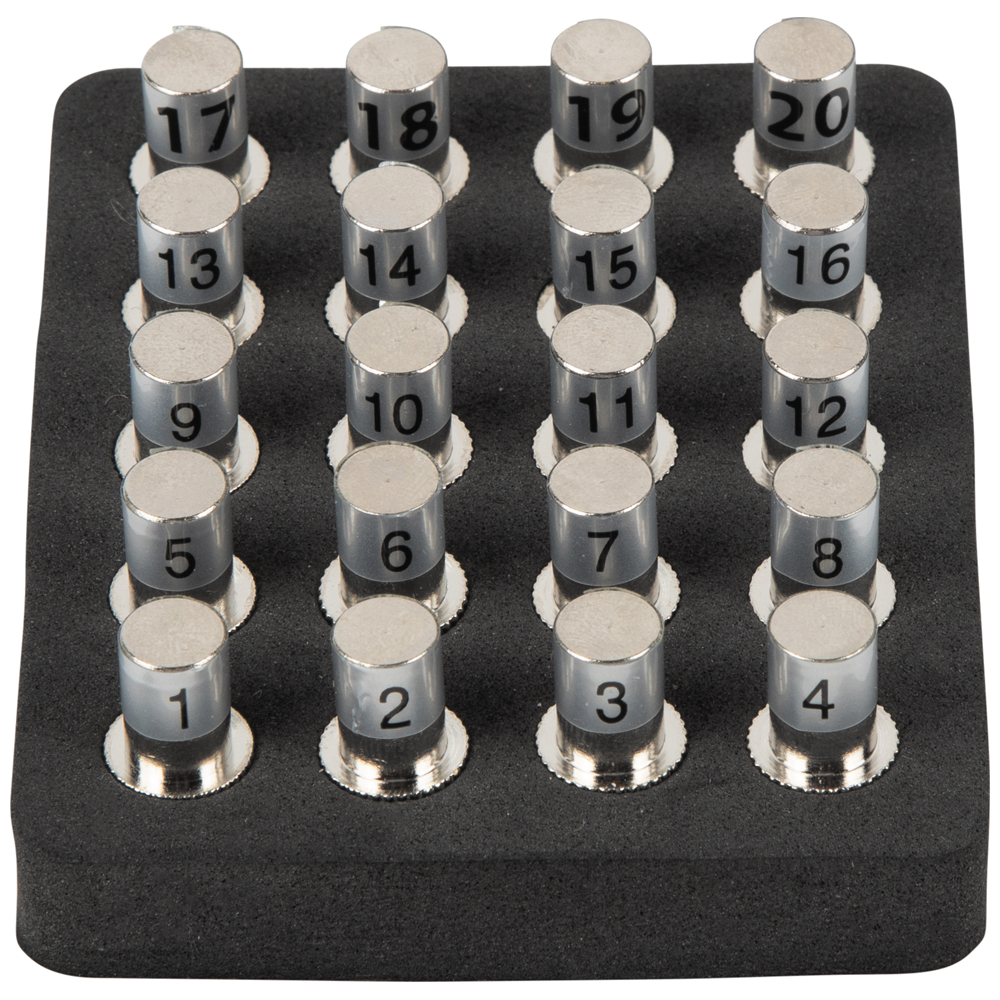

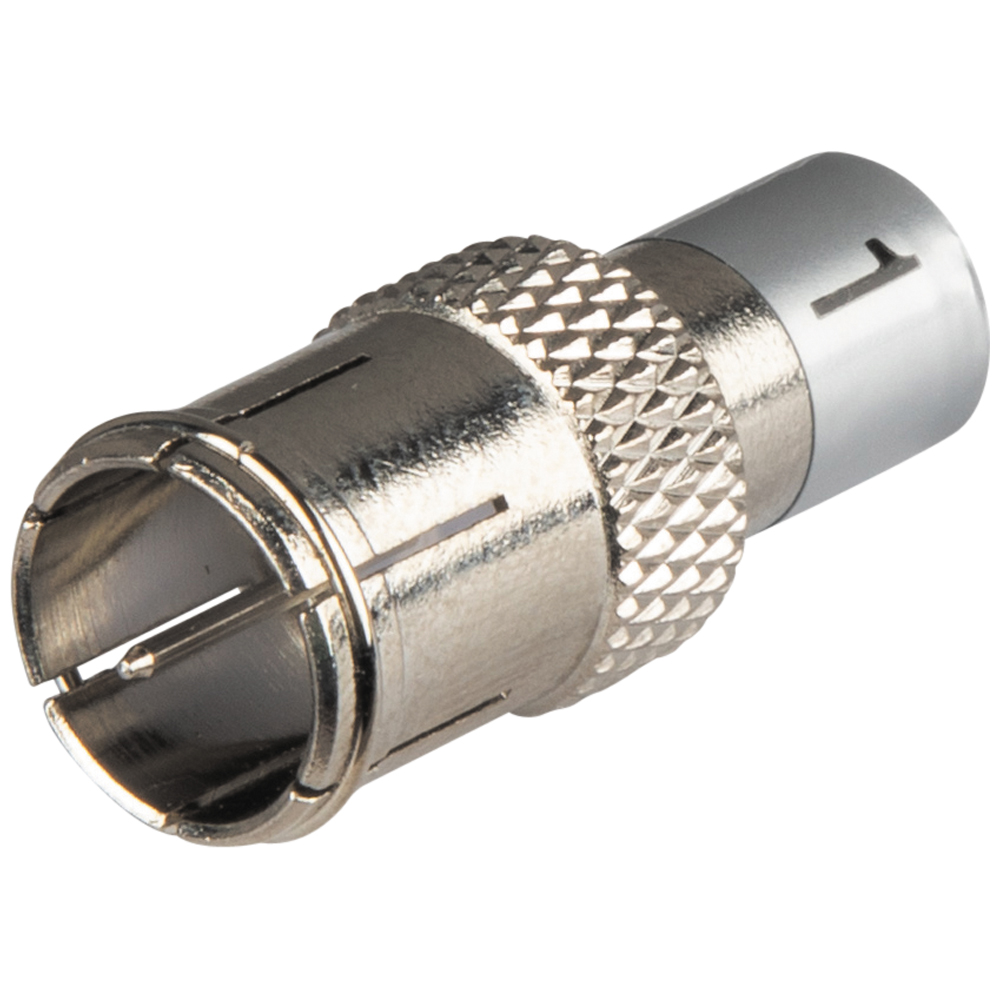

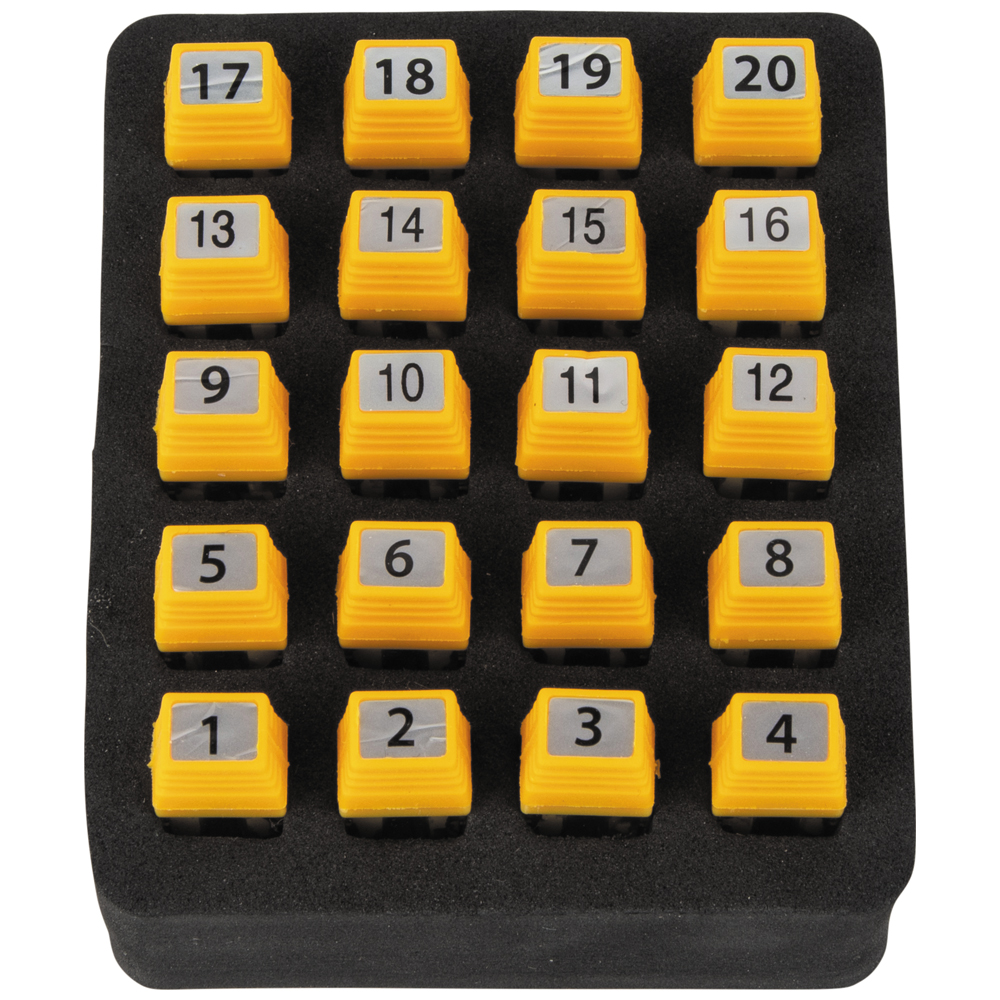

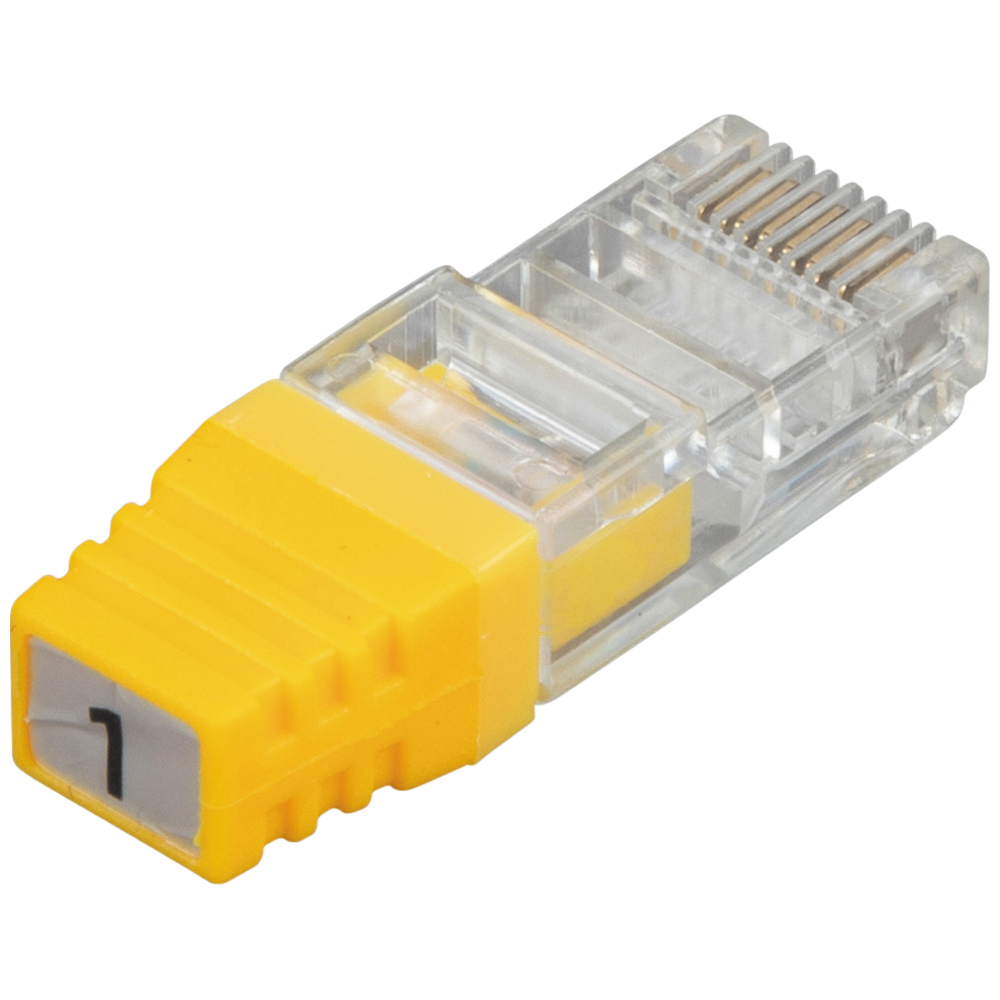

- Includes 20 remote locators for cable identification and management

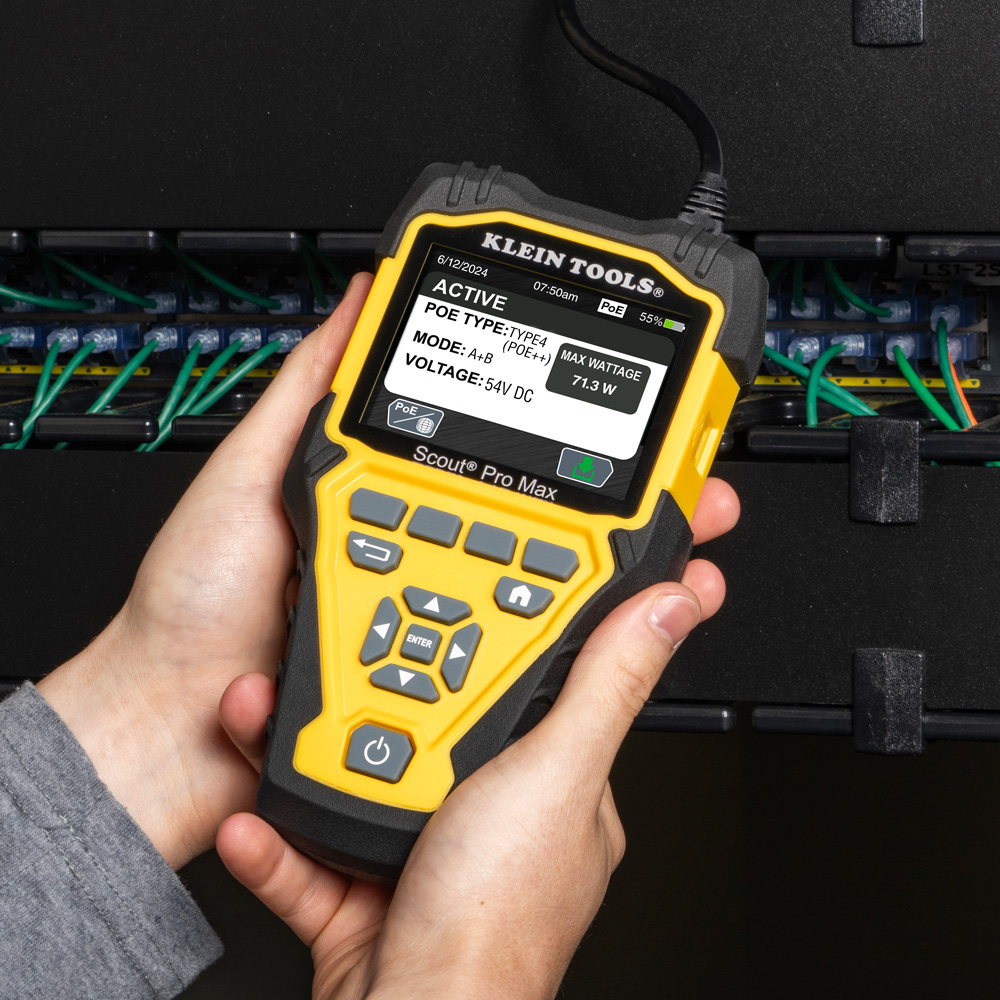

- Detects active and passive Power over Ethernet (PoE)

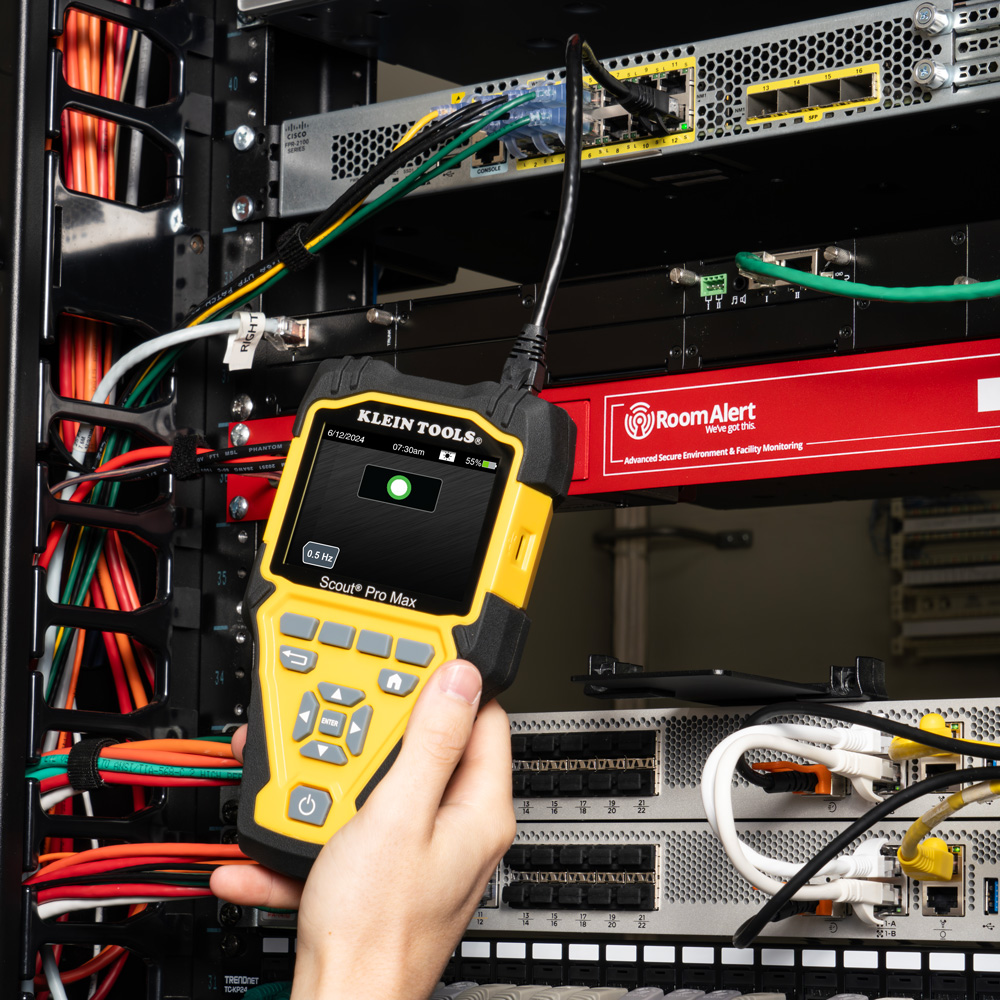

- Hub blink feature to identify and locate cables
- Supports Ethernet/data and coaxial cable testing
- Accuracy of ± (2% + 3' or 1 m) with known VoP and consistent cable parameters
- Drop protection up to 2 meters
- Battery life: 15 hours active, 1 year standby
Professional Installation Requirements
- No professional installation required; recommended for use by trained technicians or electricians familiar with network cable testing and safety precautions.

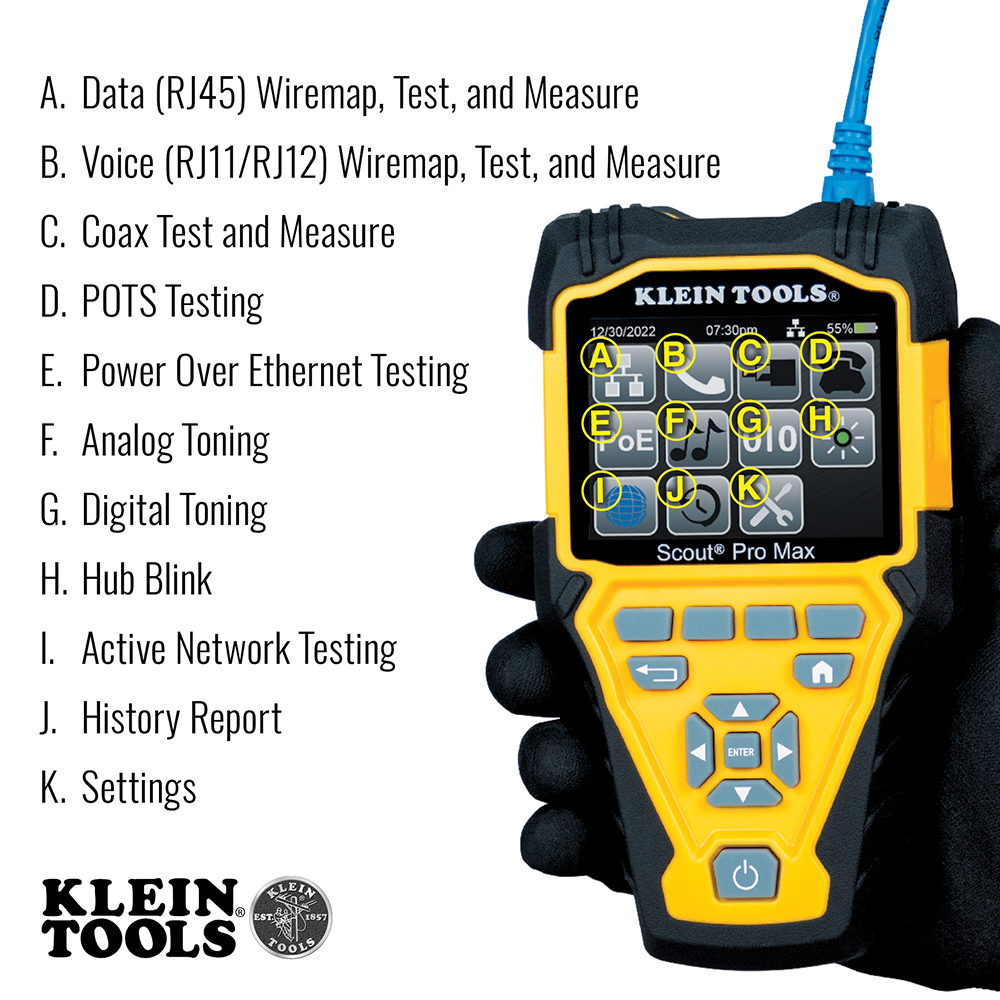

Applications

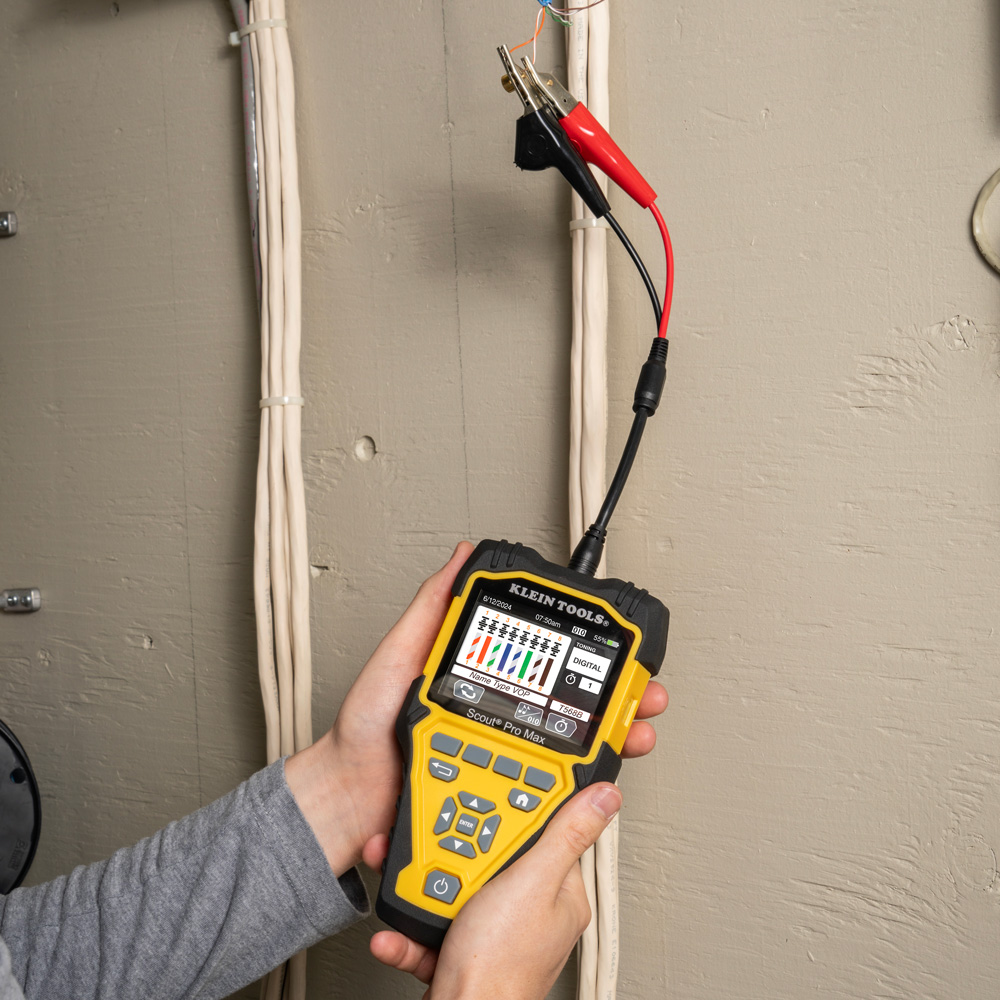

- Testing and troubleshooting RJ11, RJ12, RJ45, and F-connector terminated cables
- Cable length measurement and fault distance detection
- Network capability and connection speed detection up to 10Gbps

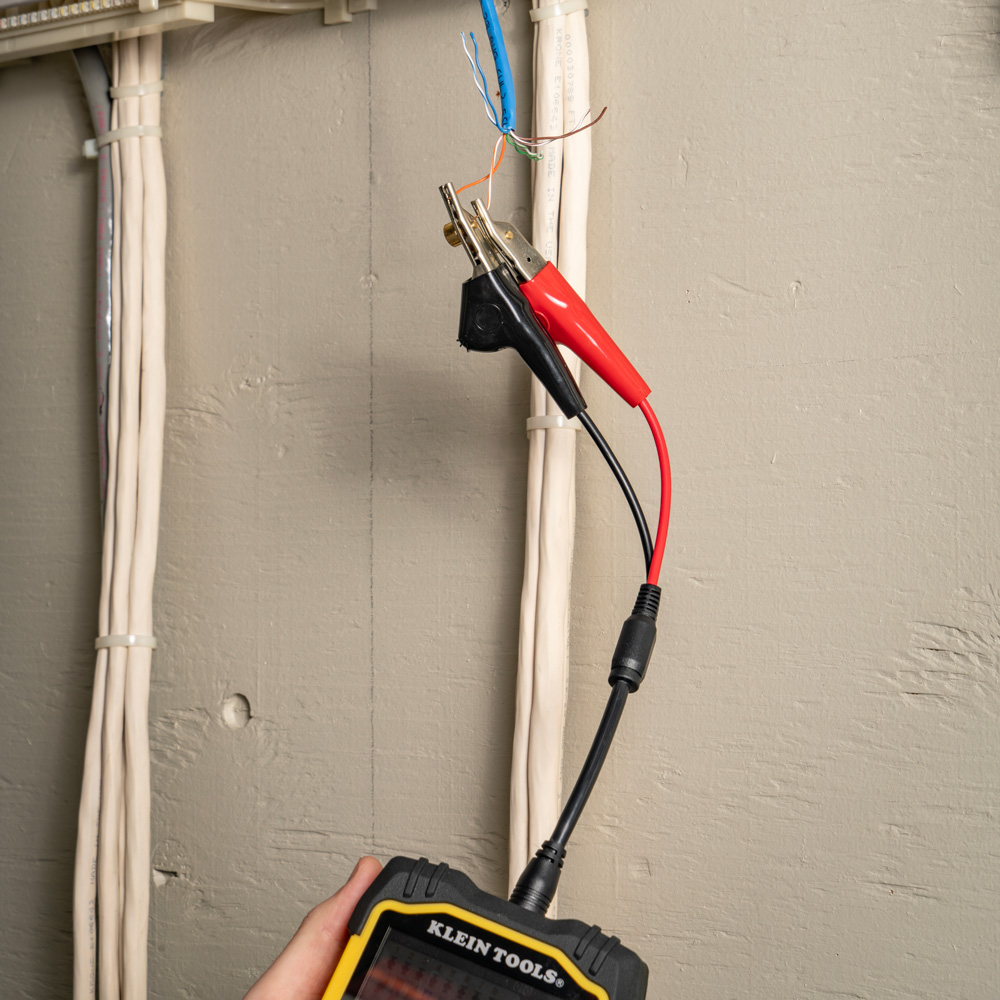

- Hub blink testing and POTS testing
- Cable tracing with analogue and digital tone generation
- Suitable for data, voice, LAN, and coaxial cable testing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps reduce cable waste by accurately identifying faults and cable issues before replacement
- Supports efficient network installations reducing unnecessary resource use
Warranty Information
Warranty details available from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Scout® Pro Max Network Cable Tester With Remote Set by Wattmaster is available for immediate purchase, ideal for professional network installers, technicians, and maintenance teams.
