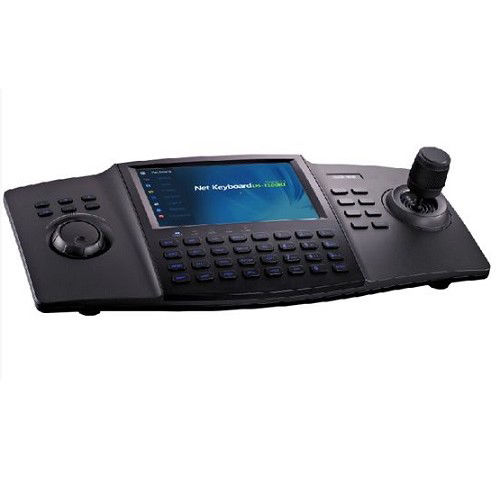

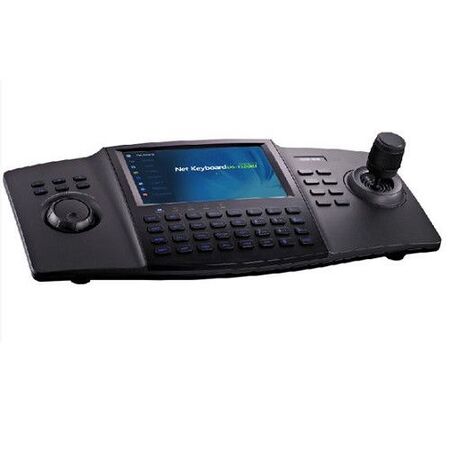

Network Keyboard with Joystick and LCD Hikvision
Hikvision network keyboard features a joystick and LCD display. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision PTZ Control Keyboard, Hikvision CCTV Network Keyboard, Hikvision Video Wall Control Keyboard
Technical Specifications
- Control Mode: IP-based
- Display: 7-inch TFT LCD touch panel
- Display Resolution: 800 × 480 pixels
- Joystick: 4-axis joystick with pan, tilt and zoom control
- Network Interface: 1 × 10/100/1000 Mbps Ethernet port
- Serial Interfaces: 1 × RS-232 and 1 × RS-485
- USB Interface: 1 × USB 2.0
- Power Supply: 12 VDC
- Power Consumption: ≤15 W
- Operating Temperature: -10°C to +55°C
- Operating Humidity: 10% to 90% relative humidity
- Certifications Listed: CE-EMC, CE-LVD, RoHS, CB, UL, FCC-SDoC and BIS
- Dimensions (H x L x W): 110mm x 435mm x 193mm
- Weight: 2 kg
Key Features
- 7-inch LCD touch screen for local monitoring and configuration
- 4-axis joystick for precise PTZ camera control
- Supports network access to compatible NVRs, DVRs, network cameras, domes, decoders, video wall controllers and matrix systems
- Supports local live view and playback functions up to 1080p
- Provides camera, preset, patrol, pattern and video wall control functions
- Supports USB storage for configuration files and captured images
- Supports HikCentral and ONVIF-compatible device access
- Supports management of multiple users and connected devices
Professional Installation Requirements
- Configuration and integration should be performed by a qualified CCTV or security-system technician. The keyboard operates from 12 VDC, but the associated power supply and network infrastructure should be installed in accordance with applicable electrical and communications requirements.
Applications
- CCTV control rooms and monitoring centres
- PTZ camera operation
- NVR and DVR control
- Video wall and decoder control
- Security system and surveillance network management
- Commercial, transport, education, government and infrastructure security installations
Standards & Compliance
- AS/NZS 62368.1:2022 is the relevant Australian/New Zealand safety standard for audio, video, information and communication technology equipment; product-specific Australian declaration of conformity should be confirmed for the supplied regional model.
Environmental Benefits
- RoHS certification listed by the manufacturer supports restriction of hazardous substances
- 12 VDC operation and a maximum power consumption of 15 W support relatively low operating energy demand
- Durable professional control hardware can reduce replacement frequency and electronic waste
- Long-term compatibility with networked surveillance equipment may extend system service life
Warranty Information
Warranty is subject to Hikvision Australia’s applicable product warranty and RMA terms and must be purchased through an authorised distributor. A fixed warranty period for the DS-1100KI model was not specified in the manufacturer documentation located.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to regional model and stock status.
