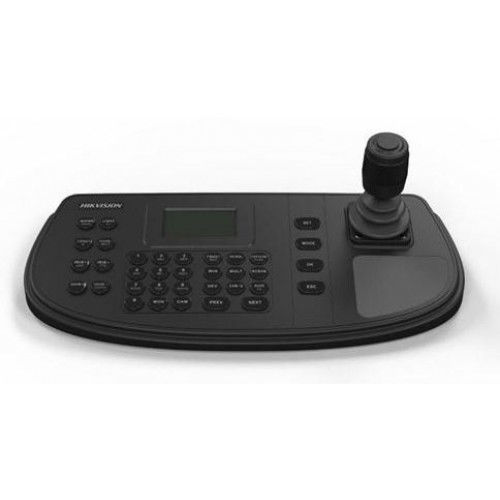

Network Keyboard with Joystick Hikvision
Hikvision network keyboard features joystick control. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision PTZ Keyboard, Hikvision CCTV Network Keyboard, Hikvision DS-1200KI(B) Network Keyboard
Technical Specifications
- Display: 128 x 64 pixel LCD screen
- Joystick: 4-axis joystick
- Control Modes: Network, RS-232, RS-422 and RS-485
- Network Interface: 10/100 Mbps self-adaptive Ethernet
- Serial Interfaces: 1 x RS-232, 1 x RS-422 and 1 x RS-485
- USB Interface: 1 x USB 2.0
- Power Supply: 12 VDC
- Power Consumption: 4.5 W maximum
- Operating Temperature: -10°C to +55°C
- Operating Humidity: 10% to 90%
- Manufacturer Certifications: CE-EMC, CE-LVD, RoHS, CB, UL, FCC-SDoC and BIS
- Dimensions (H x L x W): 110mm x 193mm x 435mm
- Weight: 1 kg
Key Features
- 4-axis joystick for pan, tilt and zoom control of PTZ cameras
- Supports network and serial control connections
- Compatible with Hikvision video management, recording and display equipment
- 128 x 64 pixel LCD status and control display
- USB interface for configuration and peripheral connection
- Designed for CCTV, security monitoring and control-room installations
Applications
- PTZ camera control
- CCTV control-room operation
- Hikvision NVR and DVR system control
- Video wall and security monitoring installations
- Commercial and industrial security systems
Standards & Compliance
- AS/NZS 62368.1:2026 is the relevant safety standard category for audio/video and information and communication technology equipment; product-specific Australian declaration or RCM evidence should be confirmed before supply.
Environmental Benefits
- RoHS certification indicates restriction of specified hazardous substances in the product
- Low maximum power consumption of 4.5 W can reduce operating energy use
- Durable control hardware can help reduce replacement frequency and electronic waste
Warranty Information
Warranty is subject to Hikvision Australia and the authorised distributor's applicable product terms. Confirm the warranty period and Australian support eligibility at purchase; Hikvision's published extended five-year warranty applies only to listed premium project-oriented product series.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to regional model and stock availability.
