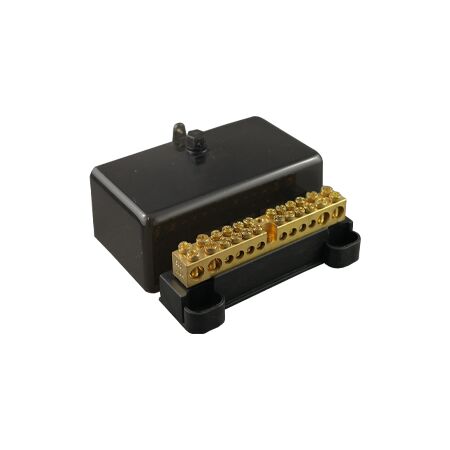

Neutral Link 12 Hole 110A 500V 25mm² Black Connected Switchgear
Connected Switchgear Neutral Link Hole Brass Black features 500V voltage, 110A current rating and 12 terminal holes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product Code: LN12
- Voltage: 500V
- Current Rating: 110A
- Configuration: 12 terminal holes
- Cable Size: Accepts up to 25mm²
- Dimensions (H x L x W): 50mm x 200mm x 100mm
- Weight: 0.5 kg
Key Features
- Manufactured from a high percentage of brass material.
- Rated at 500V in both 110A and 350A.
- Terminal diameter accepts cable size up to 25mm².
- Comes complete with a black transparent screw-on cover.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Electrical installations in residential and commercial buildings
- Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 60947.7.3:2015 for electrical equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
5 years warranty against manufacturing defects, covering replacement and installation by an authorised electrician.
Available Now
The 12 Hole Neutral Link is available now for immediate purchase, ideal for electrical installations in various settings.
