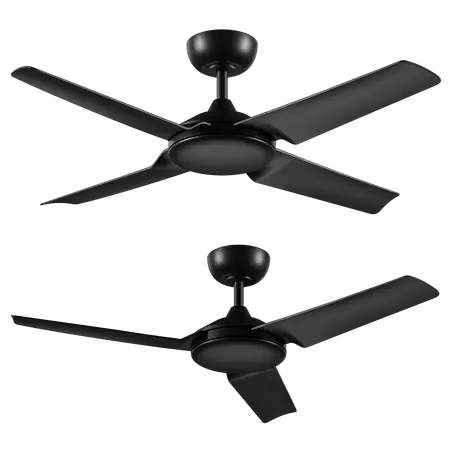

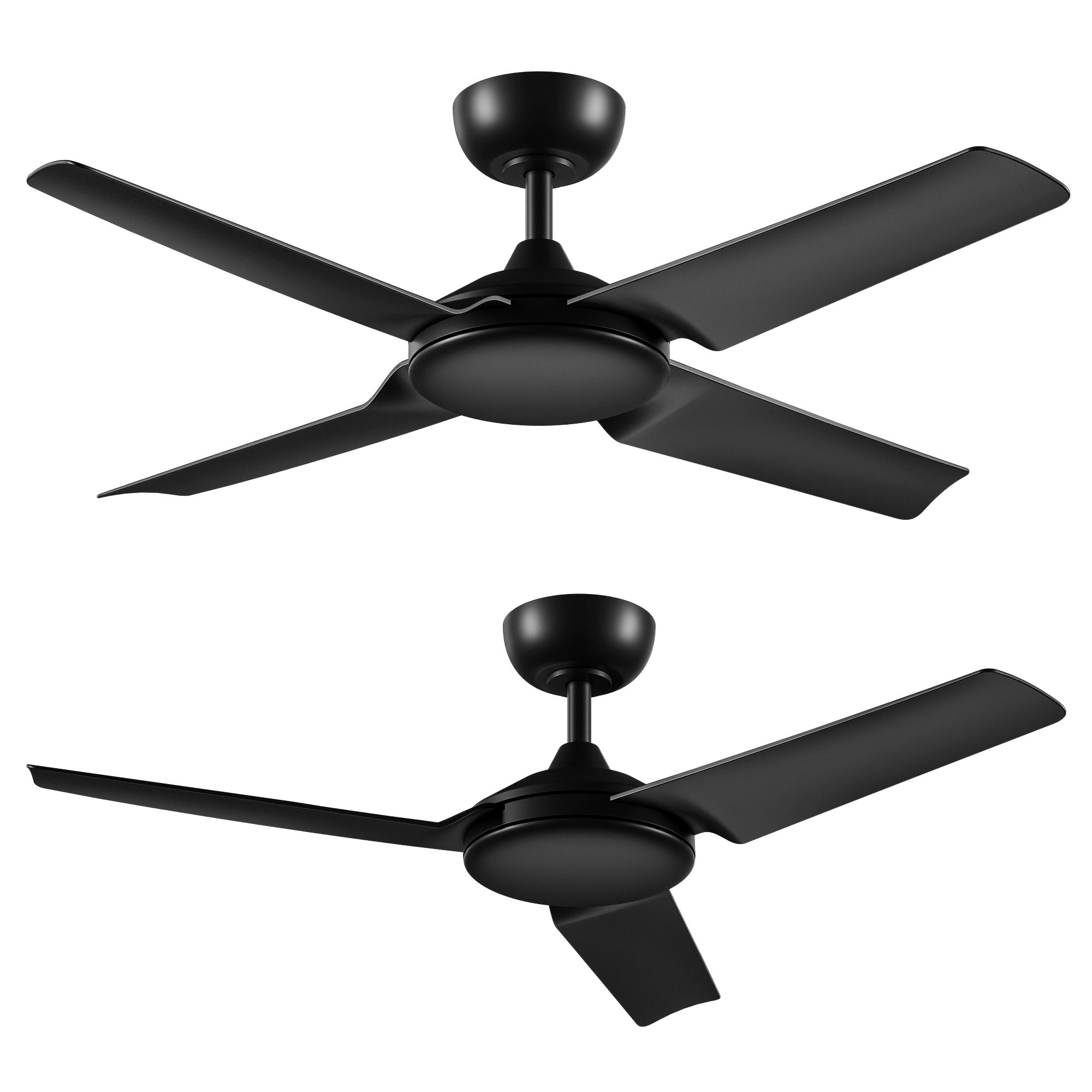

Nevada 48 Inch 1220mm Smart DC Ceiling Fan 4 Blade Black Domus
Domus Nevada 48 inch (1220mm) smart DC ceiling fan, 4 blade, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Nevada 48, NEVADA-48, 1220mm DC Ceiling Fan, Smart DC Ceiling Fan
Technical Specifications
- Input Voltage: 240V AC
- Motor Type: DC motor
- Motor Power: 35W
- Number of Blades: 4; configurable to 3 blades
- Blade Diameter: 48 inch / 1220mm
- Blade Pitch: 11 degrees
- Maximum Airflow: 12,745m³/h
- Airflow Speeds: 3,587 to 12,745m³/h across six speeds
- Control: Included six-speed remote control
- Light Compatibility: Optional dimmable LED light kit
- Construction: ABS polymer motor housing, canopy and blades
- Ingress Protection: IP20
- Operation: Summer/winter reverse function
- Climate Rating: Tropically rated
- Ceiling Compatibility: Raked ceilings up to 15 degrees without optional ceiling kit
- Dimensions (H x L x W): 278mm x 1220mm x 1220mm
- Weight: 4.9 kg
Key Features
- Black finish with four-blade configuration
- Energy-efficient 35W DC motor
- Six-speed remote control included
- Summer/winter reverse function for year-round air circulation
- Quiet operation suitable for bedrooms and living areas
- Optional dimmable LED light kit available separately
- ABS polymer construction for the motor housing, canopy and blades
- Extension rods available for increased ceiling clearance
Professional Installation Requirements
- Installation and fixed wiring must be completed by a licensed electrician. The fan requires an isolation switch, suitable structural ceiling fixing and blades installed more than 2.1m above floor level. Use the optional ceiling kit for raked or sloped ceilings exceeding 15 degrees.
Applications
- Bedrooms
- Living rooms
- Open-plan residential areas
- Indoor coastal locations
- Sheltered pergolas and outdoor areas protected from wind and rain
Standards & Compliance
- Applicable safety standard: AS/NZS 60335.2.80:2025 for household and similar electric fans
- Electrical installation and isolation requirements: AS/NZS 3000 Wiring Rules
- Installation manual references AS/NZS 60335.1 safety requirements
Environmental Benefits
- 35W DC motor can reduce operating energy consumption compared with higher-wattage AC fan motors
- Summer/winter reverse function supports seasonal air circulation and may reduce reliance on mechanical heating and cooling
- Long-life fan construction and replaceable components can reduce replacement waste
- Optional LED light kit uses an efficient LED light source with an expected 10,000-hour lifespan
Warranty Information
Fan: 3-year in-home warranty plus 3-year parts replacement warranty. Receiver and remote control: 1-year in-home warranty plus 1-year parts replacement warranty. Warranty is available within Australia and requires installation by an appropriately licensed person.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
