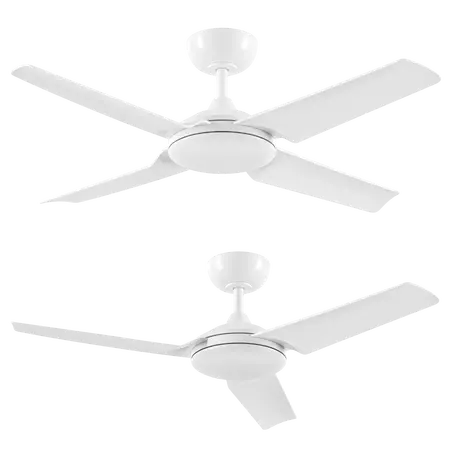

Nevada 48 Inch 1220mm Smart DC Ceiling Fan 4 Blade White Domus
Domus Nevada 48 inch (1220mm) smart DC ceiling fan, 4 blade, white.
Sign in
Please login to continue to your account.
Alternatively Known As: Domus NEVADA-48 White Ceiling Fan, Nevada 48 4-Blade DC Fan, 60184
- Model: NEVADA-48
- Variant: 60184
- Finish Colour: White
- Number of Blades: 4-blade configuration; 3-blade configuration also supported
- Blade Length: 48 inch / 1220mm
- Input Voltage: 240V AC
- Motor Type: DC motor
- Motor Wattage: 35W
- Blade Pitch: 11 degrees
- Maximum Airflow: 12,745m³/h
- Airflow by Speed: 3,587 / 5,216 / 8,155 / 9,855 / 11,043 / 12,745m³/h
- Construction: ABS polymer motor, canopy and blades
- IP Rating: IP20
- Controls: Six-speed remote control included
- Reverse Function: Summer/Winter operation
- Light Compatibility: Adaptable to optional Nevada/Twister 24W LED light kit
- Raked Ceiling Compatibility: Up to 15 degrees without optional ceiling kit
- Tropical Rating: Yes
- Dimensions (H x L x W): 278mm x 1220mm x 1220mm
- Weight: 4.9 kg

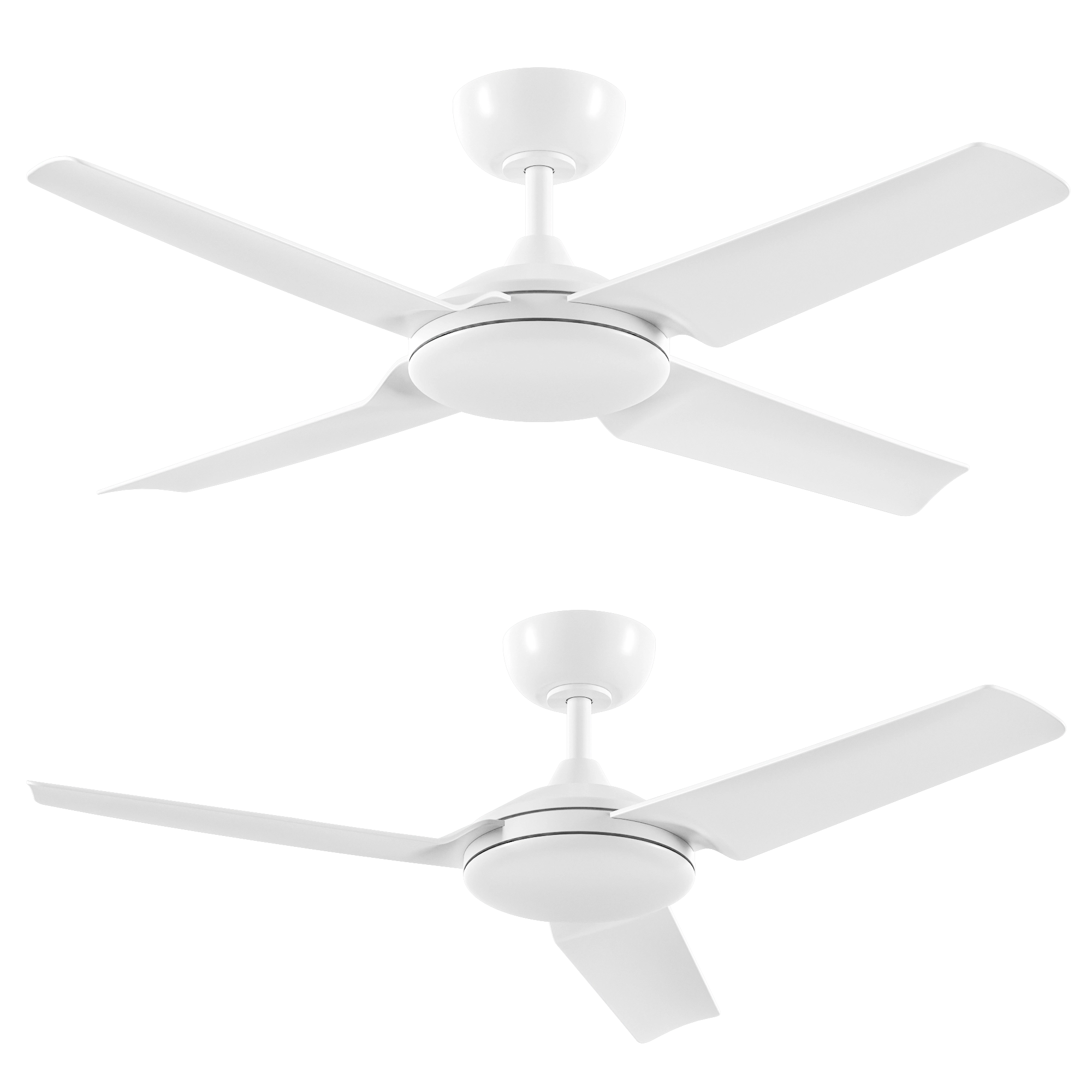

- Selectable three- or four-blade configuration
- Energy-efficient 35W DC motor
- Six-speed remote control included
- Summer/Winter reverse function
- Quiet operation design
- Optional dimmable LED light kit available separately
- Suitable for indoor and sheltered outdoor applications protected from wind and rain
- Compatible with optional extension rods
- One remote can be paired to operate up to four fans
- Fixed wiring, power outlets and ceiling-fan mounting must be installed by a licensed electrician. Installation must include suitable isolation and comply with AS/NZS 3000 wiring requirements and the manufacturer's installation instructions. The fan must be mounted to a structure capable of supporting the required load, with blades installed at least 2.1m above floor level.
- Bedrooms
- Living rooms
- Open-plan residential areas
- Indoor commercial spaces
- Sheltered outdoor areas, pergolas and covered patios protected from wind and rain
- AS/NZS 60335.2.80:2025, applicable safety requirements for household and similar electric fans
- AS/NZS 60335.1, general safety requirements referenced in the manufacturer's installation manual
- AS/NZS 3000, Australian and New Zealand electrical installation wiring requirements
- DC motor technology can reduce operating energy consumption compared with less efficient motor designs
- Long-life ABS polymer construction helps reduce replacement frequency and associated material waste
- Optional LED light kit uses efficient LED technology and avoids replacing the complete fan when lighting is required
Fan: 3 years in-home warranty plus 3 years parts replacement. Receiver and remote: 1 year in-home warranty plus 1 year parts replacement. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation instructions. Domus' general air-movement warranty policy provides 6 years total coverage for ceiling fans, comprising 3 years in-home followed by 3 years parts replacement.
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
