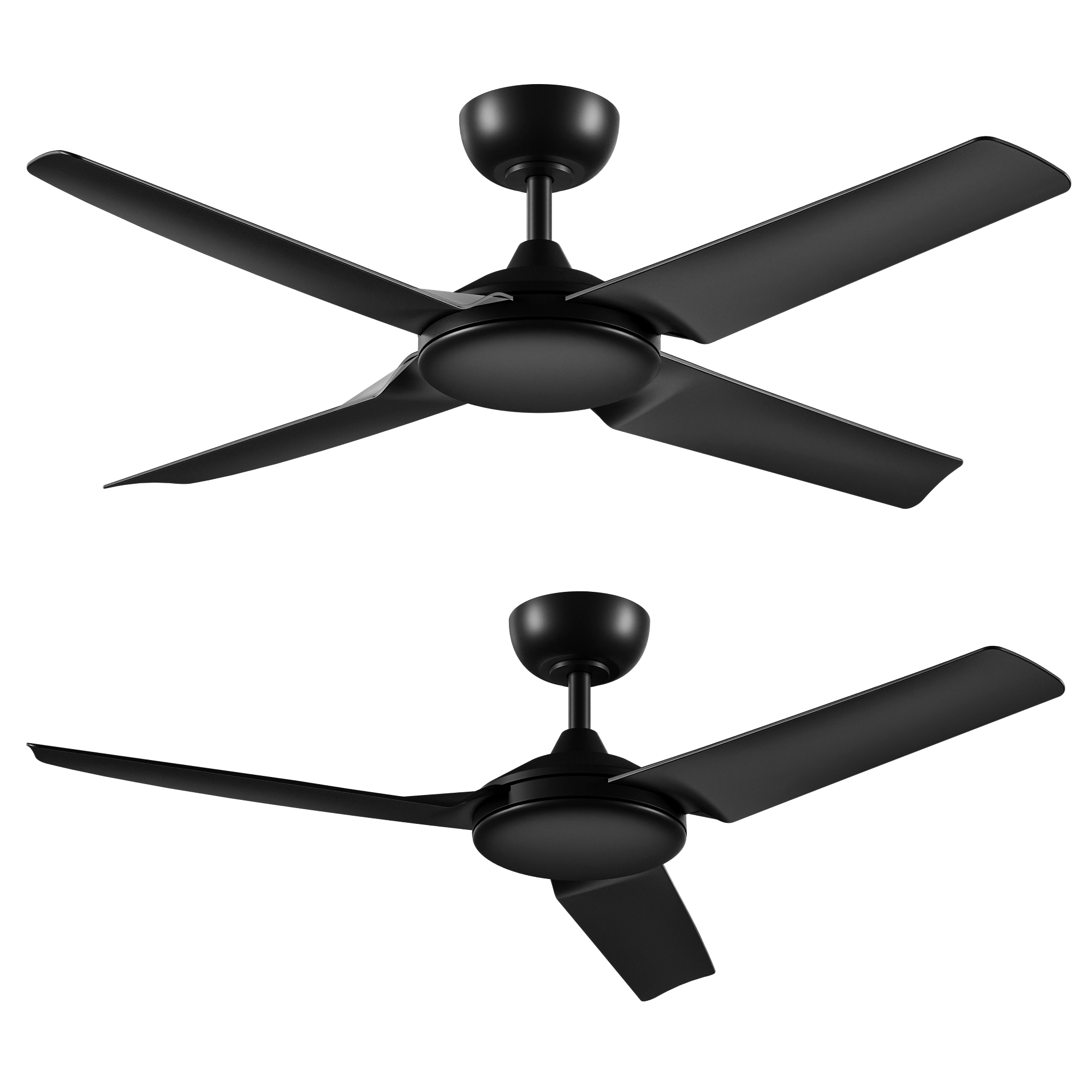

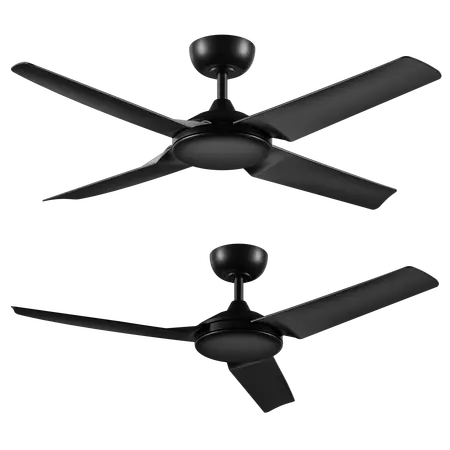

Nevada 52 Inch 1320mm Smart DC Ceiling Fan 4 Blade Black Domus
Domus Nevada 52 inch (1320mm) smart DC ceiling fan, 4 blade, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus NEVADA-52, Nevada 1320mm DC Ceiling Fan, Nevada Smart Ceiling Fan, Nevada 4-Blade Ceiling Fan
Technical Specifications
- Model: NEVADA-52
- Finish Colour: Black
- Blade Configuration: 4-blade configuration available; 3-blade configuration also supported
- Blade Length: 52 inch / 1320mm
- Input Voltage: 240V AC
- Motor Type: DC
- Motor Power: 35W
- Blade Pitch: 11°
- Maximum Airflow: 14,850m³/h
- Airflow Settings: 6 speeds; 3,659 to 14,850m³/h
- Remote Control: 6-speed remote included
- Smart Control: Smart fan design with app-control functionality
- Summer/Winter Function: Yes
- Light Compatibility: Optional dimmable LED light kit
- Construction: ABS polymer motor, canopy and blades
- Ingress Protection: IP20
- Tropical Rating: Yes
- Raked Ceiling Compatibility: Up to 15° without optional ceiling kit
- Extension Rod: Available separately
- Dimensions (H x L x W): 290mm x 1320mm x 1320mm
- Weight: 5 kg
Key Features
- Selectable 3-blade or 4-blade configuration
- Energy-efficient 35W DC motor
- Black ABS polymer construction
- Quiet operation for residential interiors
- Six-speed remote control included
- Summer and winter reverse function
- Smart control capability
- Optional dimmable LED light kit with switchable 3000K, 4000K and 6500K colour temperatures
- Suitable for indoor and sheltered coastal or outdoor areas protected from wind and rain
- One remote can operate up to four fans
Professional Installation Requirements
- Installation and fixed wiring must be carried out by a licensed electrician. Install an isolation switch with full disconnection in accordance with the wiring rules, secure the mounting system to suitable structural support, and ensure the blades are at least 2.1m above floor level.
Applications
- Bedrooms
- Living rooms
- Open-plan residential areas
- Indoor coastal environments
- Sheltered pergolas and outdoor areas protected from wind and rain
- Residential and light commercial air movement
Standards & Compliance
- AS/NZS 60335.1 for electrical appliance safety
- AS/NZS 60335.2.80 for household and similar electric fans
- AS/NZS 3000 for fixed electrical wiring and installation requirements
Environmental Benefits
- DC motor technology can reduce operating energy consumption compared with conventional AC fan motors
- Long-life ABS polymer construction supports extended product service life and reduced replacement waste
- Optional LED light kit uses efficient LED technology and avoids the need for a separate light fitting
- Reversible summer/winter operation can support seasonal air circulation and reduce reliance on mechanical heating or cooling
Warranty Information
Fan: 3-year in-home warranty plus 3-year parts replacement warranty. Receiver and remote: 1-year in-home warranty plus 1-year parts replacement warranty. Warranty eligibility requires installation by a licensed electrician and compliance with the installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
