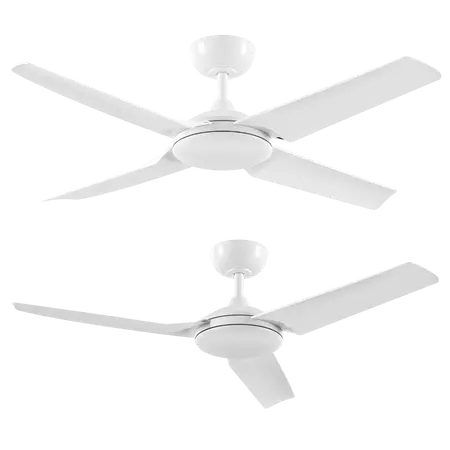

Nevada 52 Inch 1320mm Smart DC Ceiling Fan 4 Blade White Domus
Domus Nevada 52 inch (1320mm) smart DC ceiling fan, 4 blade, white.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Nevada 52 Ceiling Fan, Domus NEVADA-52, 1320mm DC Ceiling Fan, 4 Blade Smart Ceiling Fan
Technical Specifications
- Model: NEVADA-52
- Finish Colour: White
- Blade Configuration: 3 or 4 blades; configured here as 4 blades
- Blade Diameter: 1320mm (52 inches)
- Motor Type: DC motor
- Motor Power: 35W
- Input Voltage: 240V AC
- Maximum Airflow: 14,850m3/h
- Blade Pitch: 11 degrees
- Control: Six-speed remote control included
- Summer/Winter Function: Yes
- Light: Optional dimmable LED light kit available separately
- Construction: ABS polymer motor housing, canopy and blades
- IP Rating: IP20
- Tropical Rating: Yes
- Raked Ceiling Compatibility: Up to 15 degrees without optional ceiling kit
- Extension Rod: Available separately
- Dimensions (H x L x W): 290mm x 1320mm x 1320mm
- Weight: 5 kg
Key Features
- Configurable 3-blade or 4-blade design
- Energy-efficient 35W DC motor
- Six-speed remote control included
- Summer and winter reverse function
- Quiet operation for bedrooms, living areas and open-plan spaces
- Optional dimmable LED light kit with selectable 3000K, 4000K and 6500K colour temperatures
- Suitable for indoor and sheltered outdoor locations protected from wind and rain
- Maximum airflow of 14,850m3/h
- Optional 90cm extension rod available
Professional Installation Requirements
- Installation and fixed wiring must be completed by a licensed electrician in accordance with Australian wiring rules. Install the fan with the blades at least 2.1m above floor level. A suitable solid ceiling structure and isolation switch are required; use the optional ceiling kit for raked ceilings exceeding 15 degrees.
Applications
- Residential bedrooms
- Living rooms and family rooms
- Open-plan living areas
- Indoor coastal environments
- Sheltered pergolas and covered outdoor areas protected from wind and rain
Standards & Compliance
- AS/NZS 60335.1 requirements referenced in the installation manual for household appliance safety and isolation provisions
- AS/NZS 60335.2.80:2016 applicable to electric fans, including ceiling fans
- AS/NZS 3000 wiring rules applicable to fixed electrical installation
Environmental Benefits
- 35W DC motor supports lower-power fan operation compared with higher-wattage motor designs
- Reversible summer/winter operation can assist seasonal air circulation and reduce reliance on heating or cooling
- Durable ABS polymer construction may extend service life and reduce replacement waste
- Optional LED light kit uses efficient LED technology and provides selectable colour temperatures for more targeted lighting use
Warranty Information
Fan: 3-year in-home warranty plus 3-year parts replacement warranty. Remote control and receiver: 1-year in-home warranty plus 1-year parts replacement warranty. Warranty applies in Australia and requires installation by a licensed electrician in accordance with the installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
