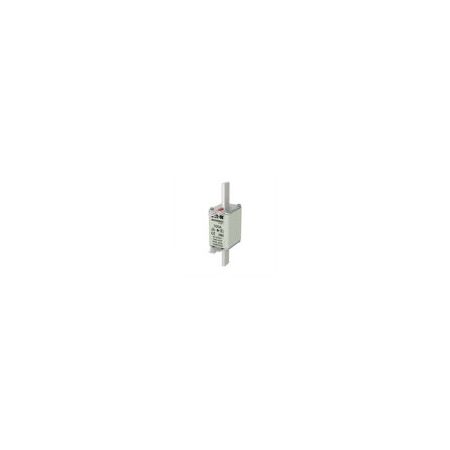

NH Fuse 100A 500V | Class gG/gL | 120 kA Breaking Capacity | Secure Live Gripping Lug by Eaton

BRAND: Eaton
SKU: 100NHG02B
$23.60 List price: $29.50
+ −
30 Days Return Delivery Options
The NH Fuse 100A 500V is designed for low voltage electrical protection, featuring a high breaking capacity of 120 kA and a secure live gripping lug for reliable connections. Ideal for industrial and commercial applications, it ensures protection against overloads and short circuits.

Product Name/Title: NH Fuse 100A 500V | Class gG/gL | 120 kA Breaking Capacity | Secure Live Gripping Lug by Eaton

Brand: Eaton

SKU: 100NHG02B

Alternatively Known As: NH Fuse 100 Amp 500 Volt, NH Size 2 Fuse, Bussmann NH Fuse, Low Voltage NH Fuse

Technical Specifications
  • Amperage Rating: 100 A
  • Voltage Rating: 500 V AC
  • Breaking Capacity: 120 kA
  • Class: Class gG/gL
  • Frequency Rating: 45 Hz to 62 Hz
  • Fuse Size: NH02
  • Insulated Metal Gripping Lugs (IMGL): No
  • Suitable for Microswitch BVL50
  • Certifications: IEC 60269-1, IEC 60269-2, DIN 43620
  • Dimensions (H x L x W): 63mm x 150mm x 40mm
  • Weight: 0.395 kg
Key Features
  • Live gripping lug for secure connection
  • Combination fuse status indicator for easy fuse condition monitoring
  • Blade end connection for reliable contact
  • Class C gL/gG fuse providing general purpose protection
  • Square-body with knife blade contact design
  • High breaking capacity of 120 kA
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
  • Low voltage electrical protection in industrial and commercial electrical systems
  • Protection of electrical circuits and equipment from overload and short circuit
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • RoHS compliant, ensuring reduced hazardous substances
  • CE marked for safety and environmental standards compliance
Warranty Information

Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.

Available Now

The Eaton NH Fuse 100A 500V GG/GL Size 02 is available now for immediate purchase. Ideal for industrial and commercial electrical circuit protection.

Product specifications (skuPage.100NHG02B.pdf, 54 Kb) [Download]
