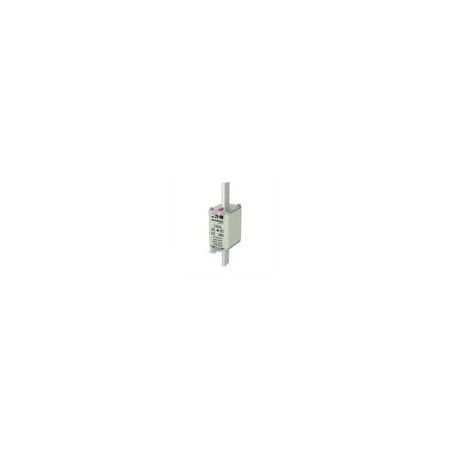

NH Fuse 125A 500V | gG/gL Class | Dual Indicator & Live Gripping Lugs | Size 02 by Eaton
NH Fuse 125A 500V designed for low voltage electrical protection, featuring a gG/gL classification and dual indicator for fuse status. Ideal for industrial and commercial applications, it ensures safe handling with live gripping lugs and a breaking capacity of 120 kA.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NH Fuse 125A 500V | gG/gL Class | Dual Indicator & Live Gripping Lugs | Size 02 by Eaton
Brand: Eaton
SKU: 125NHG02B
Alternatively Known As: NH Fuse 125 Amp 500 Volt, NH02 Fuse Link, Low Voltage NH Fuse, gG Fuse 125A, gL Fuse 125A
Technical Specifications
- Amperage Rating: 125 A
- Voltage Rating: 500 V AC
- Fuse Size: NH02
- Class: gG/gL
- Breaking Capacity: 120 kA
- Frequency Rating: 45 Hz to 62 Hz
- Dual Indicator for fuse status
- Live gripping lugs for safe installation and removal
- Dimensions (H x L x W): 63mm x 150mm x 40mm
- Weight: 0.426 kg
Key Features
- Fuse-link, LV, 125 A, AC 500 V
- NH02 size with gL/gG classification
- Dual indicator for fuse status
- Live gripping lugs for safe handling
- Breaking capacity of 120 kA
- Complies with IEC 60269-1, IEC 60269-2, DIN 43620 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse handling.
Applications
- Low voltage electrical protection in industrial and commercial electrical systems
- Use with NH fuse bases and fuse switch-disconnectors for circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton NH Fuse 125A 500V GG/GL Size 02 is available now for immediate purchase. Ideal for industrial and commercial electrical circuit protection applications.
