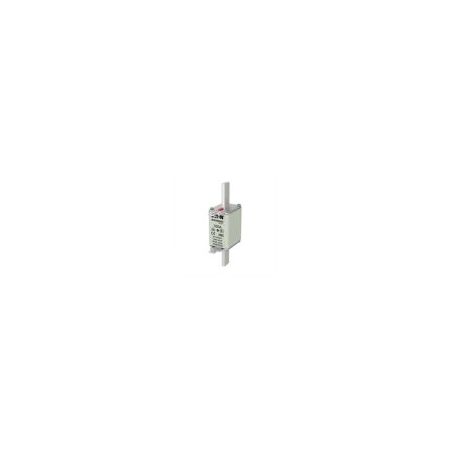

NH Fuse 160A 500V | 120kA Breaking Capacity | gG/gL Class | Size 02 by Eaton
NH Fuse 160A 500V with a high breaking capacity of 120kA and gG/gL class—ideal for low voltage electrical protection in industrial and commercial systems. Built for secure connections with a live gripping lug and combination fuse status indicator for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NH Fuse 160A 500V | 120kA Breaking Capacity | gG/gL Class | Size 02 by Eaton
Brand: Eaton
SKU: 160NHG02B
Alternatively Known As: NH Fuse 160 Amp 500 Volt, NH Size 2 Fuse, Low Voltage NH Fuse, Bussmann NH Fuse
Technical Specifications
- Amperage Rating: 160 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Class: gG/gL
- Frequency Rating: 45 Hz to 62 Hz
- Fuse Size: NH02
- Connection Type: Blade end with knife blade contact
- Fuse Status Indicator: Combination type
- Insulated Metal Gripping Lugs: No
- Dimensions (H x L x W): 63mm x 150mm x 40mm
- Weight: 0.39 kg
Key Features
- Live gripping lug for secure connection
- Combination fuse status indicator for easy fuse condition monitoring
- Blade end connection with square-body and knife blade contact
- Class gG/gL fuse providing general purpose protection
- High breaking capacity of 120 kA at 500 V AC
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse operation.
Applications
- Low voltage electrical protection in industrial and commercial electrical systems
- Protection of transformers, motors, and cables from overload and short circuit
- Use in switchboards and distribution panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard Eaton warranty applies, covering manufacturing defects and performance under specified conditions.
Available Now
The Eaton NH Fuse 160A 500V GG/GL Size 02 is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
