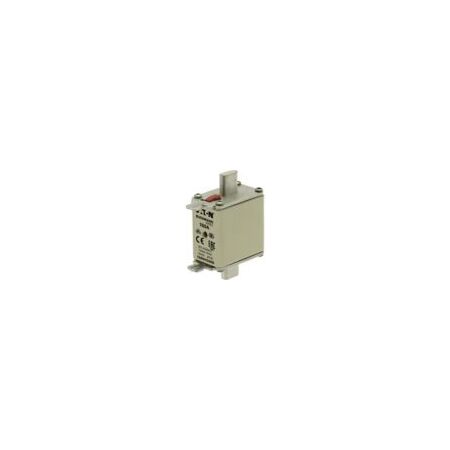

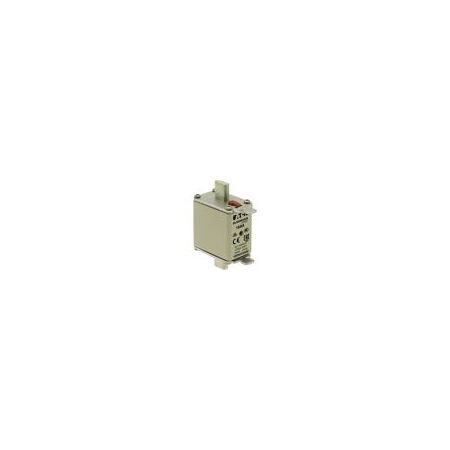

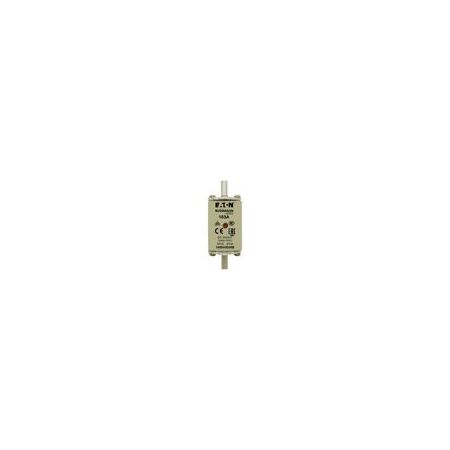

NH Fuse 160A 500V gG/gL | 120 kA Breaking Capacity | Dual Indicator by Eaton
NH Fuse with 160A amperage and 500V voltage rating—ideal for low voltage electrical protection in industrial and commercial systems. Built for safety compliance, featuring a 120 kA breaking capacity and dual indicator for fuse status.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NH Fuse 160A 500V gG/gL | 120 kA Breaking Capacity | Dual Indicator by Eaton
Brand: Eaton
SKU: 160NHG00B
Alternatively Known As: NH Fuse 160 Amp 500 Volt, NH00 Fuse, Low Voltage NH Fuse, Bussmann NH Fuse
Technical Specifications
- Amperage Rating: 160 A
- Voltage Rating: 500 V AC
- Fuse Size: NH00
- Class: gG/gL
- Breaking Capacity: 120 kA
- Frequency Rating: 45 Hz to 62 Hz
- Certifications: IEC 60269-1, IEC 60269-2, DIN 43620
- Insulated Metal Gripping Lugs (IMGL): No
- Dimensions (H x L x W): 58mm x 79mm x 30mm
- Weight: 0.182 kg
Key Features
- 160 A amperage rating
- 500 V AC voltage rating
- Class gG/gL fuse type for general purpose protection
- Breaking capacity of 120 kA
- Dual indicator for fuse status
- Complies with IEC 60269-1, IEC 60269-2, and DIN 43620 standards
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Low voltage electrical protection in industrial and commercial electrical systems
- Use with SD00-D Single pole NH Fuse base
- Compatible with Microswitch 170H0236 EBH Size 00 to 4 Horizontal fuse switch-disconnectors
- Use with TD00-D Triple pole NH Fuse base
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Warranty terms as per Eaton standard product warranty policy.
Available Now
The Eaton NH Fuse 160A 500V GG/GL Size 00 is available now for immediate purchase. Ideal for industrial and commercial low voltage electrical protection applications.
