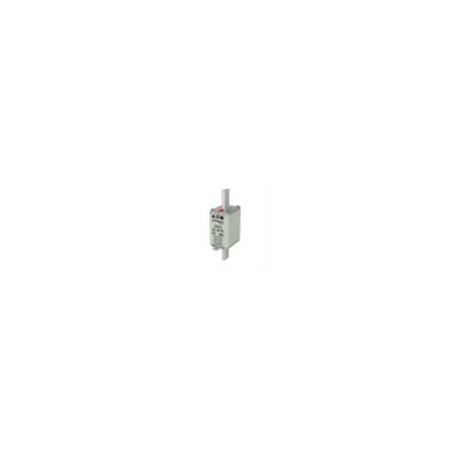

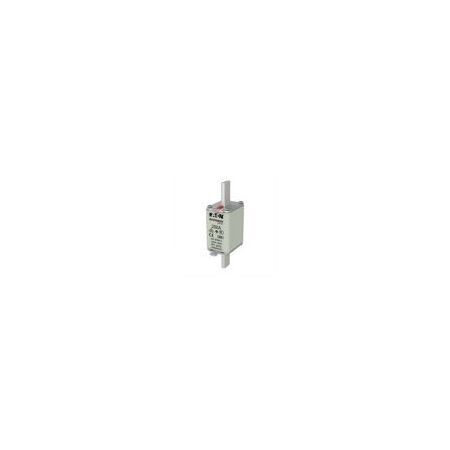

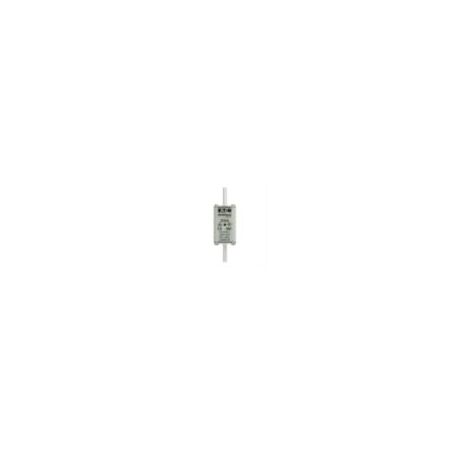

NH Fuse 200A 500V | 120 kA Breaking Capacity | Class gG/gL | Ceramic Construction by Eaton
NH Fuse 200A 500V with 120 kA breaking capacity and class gG/gL rating—ideal for low voltage electrical protection in industrial and commercial systems. Built for reliability, featuring a live gripping lug and combination fuse status indicator for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NH Fuse 200A 500V | 120 kA Breaking Capacity | Class gG/gL | Ceramic Construction by Eaton
Brand: Eaton
SKU: 200NHG1B
Alternatively Known As: NH Fuse 200 Amp 500 Volt, NH1 Fuse, Low Voltage NH Fuse, Bussmann NH Fuse
Technical Specifications
- Amperage Rating: 200 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Frequency Rating: 45 Hz to 62 Hz
- Fuse Size: NH1
- Class: gG/gL
- Certifications: IEC 60269-1, IEC 60269-2, DIN 43620
- Insulated Metal Gripping Lugs: No
- Dimensions (H x L x W): 63mm x 135mm x 40mm
- Weight: 0.41 kg
Key Features
- Live gripping lug for secure connection
- Combination fuse status indicator for easy monitoring
- Blade end connection for reliable contact
- Class C gL/gG fuse providing general purpose protection
- Square-body with knife blade contact
- Ceramic construction for durability and safety
- Breaking capacity of 120 kA at 500 V AC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse integration.
Applications
- Low voltage electrical protection in industrial and commercial electrical systems
- Use with SD1-D Single pole NH Fuse base Microswitch 170H0236
- Compatible with EBH Size 00 to 4 Horizontal fuse switch-disconnectors
- Suitable for TD1-D Triple pole NH Fuse base
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard Eaton warranty applies; typically 1 year against manufacturing defects.
Available Now
The Eaton NH Fuse 200A 500V GG/GL Size 1 is available now for immediate purchase. Ideal for industrial and commercial electrical protection applications.
