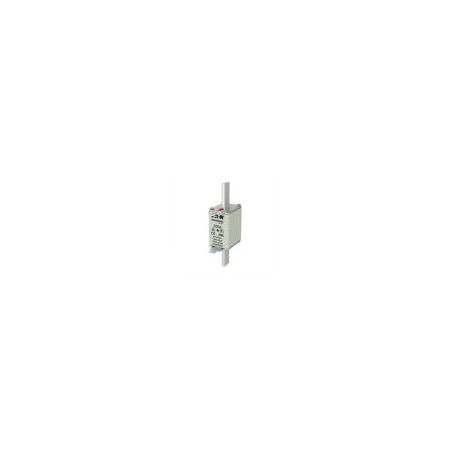

NH Fuse 200A 500V | 120 kA Breaking Capacity | gL/gG Class | Blade End by Eaton
NH Fuse with 200A amperage and 500V AC voltage—ideal for low voltage electrical protection in industrial and commercial systems. Built for safety, featuring a 120 kA breaking capacity and combination fuse status indicator.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NH Fuse 200A 500V | 120 kA Breaking Capacity | gL/gG Class | Blade End by Eaton
Brand: Eaton
SKU: 200NHG02B
Alternatively Known As: NH Fuse 200 Amp 500 Volt, NH Size 2 Fuse, Low Voltage NH Fuse, Bussmann NH Fuse
Technical Specifications
- Amperage Rating: 200 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Class: gL/gG
- Frequency Rating: 45-62 Hz
- Fuse Size: NH02
- Certifications: IEC 60269-1, IEC 60269-2, DIN 43620
- Fuse Status Indicator: Combination type
- Connection Type: Blade end with live gripping lug
- Dimensions (H x L x W): 63mm x 150mm x 40mm
- Weight: 0.4 kg
Key Features
- 200A amperage rating
- 500V AC voltage rating
- 120 kA breaking capacity
- Combination fuse status indicator
- Blade end connection
- Class gL/gG fuse type
- Square-body with knife blade contact
- Live gripping lug design
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure proper fuse fitting and electrical safety.
Applications
- Low voltage electrical protection in industrial and commercial electrical systems
- Protection of transformers, motors, and cables from overload and short circuit
- Use in switchboards and distribution panels
Standards & Compliance
- Complies with AS/NZS 60269 series for low voltage fuses
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard Eaton warranty applies, typically 1 year against manufacturing defects.
Available Now
The Eaton NH Fuse 200A 500V GL/GG Size 02 Dual In is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
