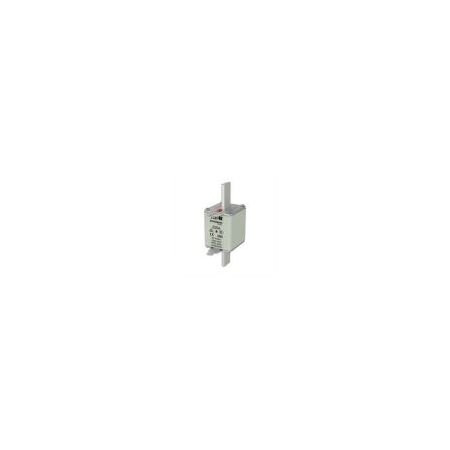

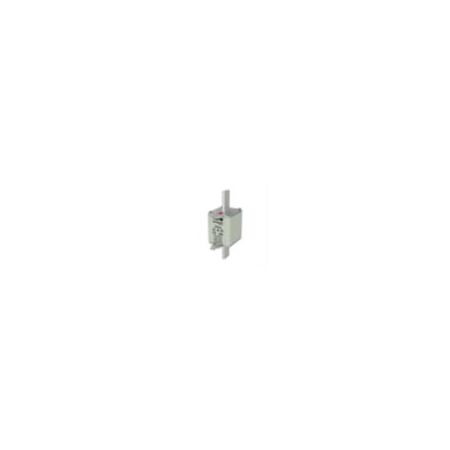

NH Fuse 250A 500V | 120 kA Breaking Capacity | gG/gL Class | Blade End Connection by Eaton
NH Fuse 250A 500V with a high breaking capacity of 120 kA and gG/gL class—ideal for low voltage electrical protection in industrial and commercial systems. Built for secure connections with a blade end design, ensuring reliable operation for transformers, motors, and cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NH Fuse 250A 500V | 120 kA Breaking Capacity | gG/gL Class | Blade End Connection by Eaton
Brand: Eaton
SKU: 250NHG03B
Alternatively Known As: NH Fuse 250 Amp 500 Volt, NH03 Fuse, Low Voltage NH Fuse, Bussmann NH Fuse
Technical Specifications
- Amperage Rating: 250 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Class: gG/gL
- Frequency Rating: 45 Hz to 62 Hz
- Fuse Size: NH03
- Connection Type: Blade end with knife blade contact
- Fuse Status Indicator: Combination type
- Insulated Metal Gripping Lugs: No
- Suitable for Microswitch BVL50
- Dimensions (H x L x W): 71mm x 150mm x 54mm
- Weight: 0.62 kg
Key Features
- Live gripping lug for secure connection
- Combination fuse status indicator for easy fuse condition monitoring
- Blade end connection with square-body and knife blade contact
- Class gG/gL fuse providing general purpose protection
- High breaking capacity of 120 kA at 500 V AC
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper fuse operation.
Applications
- Low voltage electrical protection in industrial and commercial electrical systems
- Protection of transformers, motors, and cables
- Use in switchgear and distribution boards
Standards & Compliance
- Complies with AS/NZS 60269 series (aligned with IEC 60269-1 and IEC 60269-2)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard Eaton warranty applies; typically 1 year against manufacturing defects.
Available Now
The Eaton NH Fuse 250A 500V GG/GL Size 03 is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
