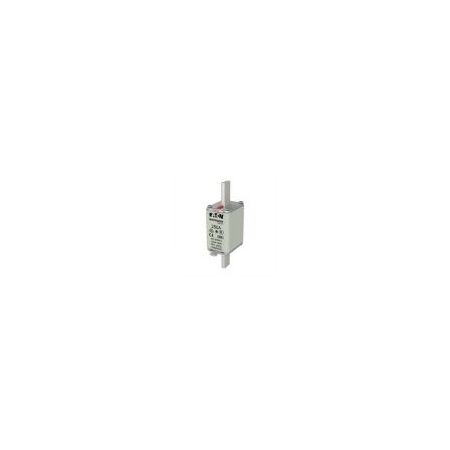

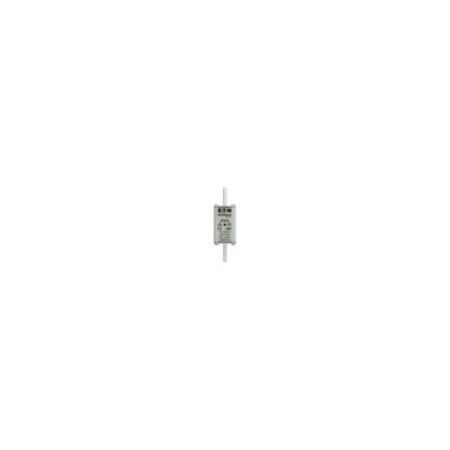

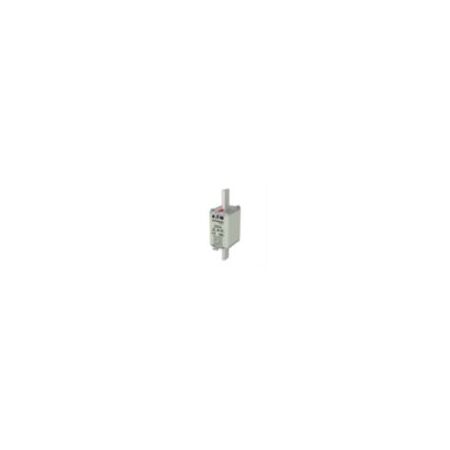

NH Fuse 250A 500V gG/gL | 120 kA Breaking Capacity | Secure Live Gripping Lug by Eaton
NH Fuse 250A 500V with 120 kA breaking capacity and secure live gripping lug—ideal for low voltage electrical protection in industrial and commercial systems. Built for safety compliance, with a combination fuse status indicator for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NH Fuse 250A 500V gG/gL | 120 kA Breaking Capacity | Secure Live Gripping Lug by Eaton
Brand: Eaton
SKU: 250NHG1B
Alternatively Known As: NH Fuse 250 Amp 500 Volt, NH1 Fuse, Low Voltage NH Fuse, Bussmann NH Fuse
Technical Specifications
- Amperage Rating: 250 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Class: gG/gL
- Frequency Rating: 45 Hz to 62 Hz
- Fuse Size: NH1
- Certifications: IEC 60269-1, IEC 60269-2, DIN 43620
- Compliances: CE Marked, RoHS Compliant
- Dimensions (H x L x W): 63mm x 135mm x 40mm
- Weight: 0.41 kg
Key Features
- Live gripping lug for secure connection
- Combination fuse status indicator for easy fuse condition monitoring
- Blade end connection with square-body and knife blade contact
- Class gG/gL fuse providing general purpose protection
- High breaking capacity of 120 kA at 500 V AC
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse operation.
Applications
- Low voltage electrical protection in industrial and commercial electrical systems
- Use with SD1-D Single pole NH Fuse base Microswitch 170H0236
- Compatible with EBH Size 00 to 4 Horizontal fuse switch-disconnectors
- Suitable for TD1-D Triple pole NH Fuse base
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard Eaton warranty applies; refer to Eaton for specific warranty terms and conditions.
Available Now
The Eaton NH Fuse 250A 500V GG/GL Size 1 is available now for immediate purchase. Ideal for industrial and commercial electrical protection applications.
