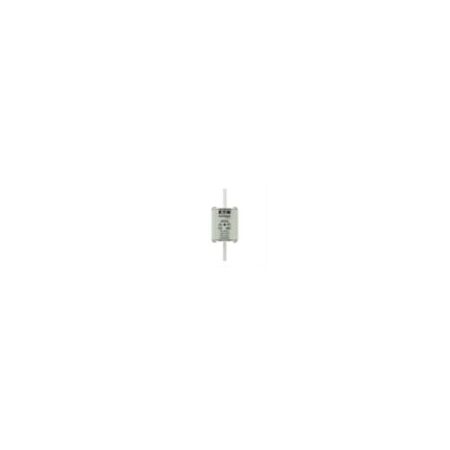

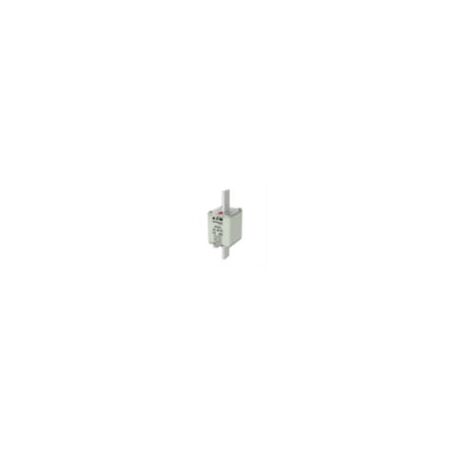

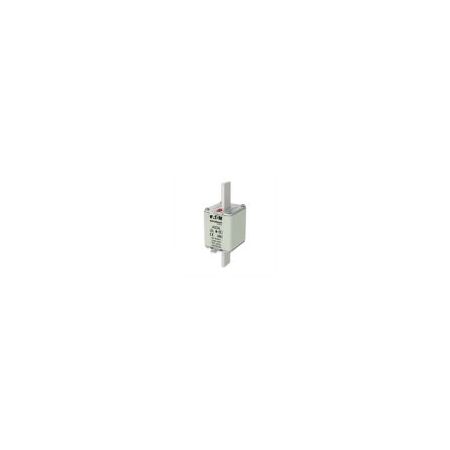

NH Fuse 400A 500V 120kA-Breaking-Capacity gG/gL Size-2 Eaton
NH Fuse 400A 500V with 120 kA breaking capacity and gG gL class—ideal for low voltage electrical protection in industrial and commercial systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Amperage Rating: 400 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Class: gG/gL (General purpose fuse)
- Frequency Rating: 45 Hz to 62 Hz
- Fuse Size: NH2
- Certifications: IEC 60269-1, IEC 60269-2, DIN 43620
- Compliances: RoHS Compliant, CE Marked
- Dimensions (H x L x W): 71mm x 150mm x 54mm
- Weight: 0.659 kg
Key Features
- Live gripping lug for secure connection
- Combination fuse status indicator for easy fuse condition monitoring
- Blade end connection for reliable contact
- Class C gL/gG fuse providing general purpose protection
- Square-body with knife blade contact
- Ceramic construction for durability and safety
- Breaking capacity of 120 kA at 500V AC
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper fuse operation.
Applications
- Low voltage electrical protection in industrial and commercial electrical systems
- Use with SD2-D Single pole NH Fuse base
- Compatible with Microswitch 170H0235 and 170H0236
- Suitable for EBH Size 00 to 4 Horizontal fuse switch-disconnectors
- Use with TD2-D Triple pole NH Fuse base
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable ceramic construction extends product life reducing waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton NH Fuse 400A 500V GG/GL Size 2 is available now for immediate purchase. Ideal for industrial and commercial electrical protection applications.
