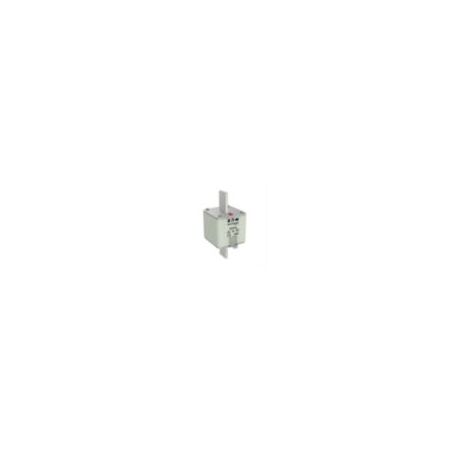

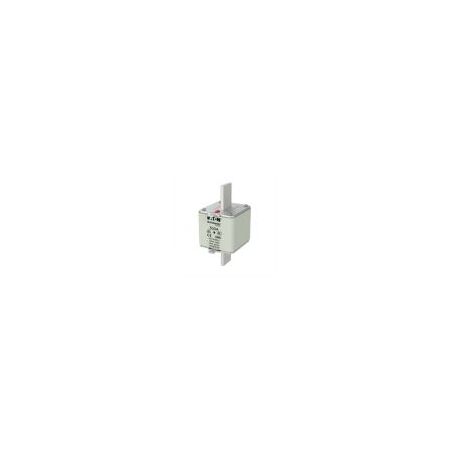

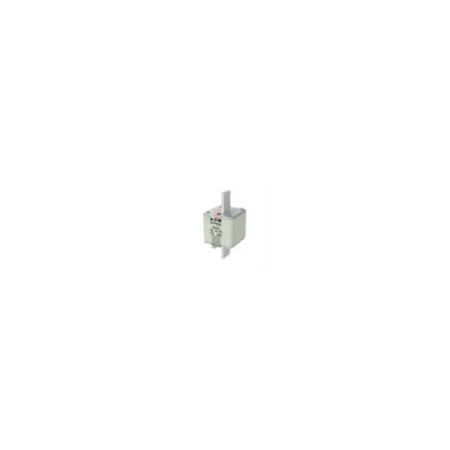

NH Fuse 500A 500V | 120 kA Breaking Capacity | gG/gL Class | Size 3 by Eaton

BRAND: Eaton
SKU: 500NHG3B
$43.50 List price: $54.20
+
NH Fuse 500A 500V with a high breaking capacity of 120 kA and gG/gL class—ideal for low voltage electrical protection in industrial and commercial systems. Built for reliable overload and short circuit protection, with a secure live gripping lug for easy installation.

Product Name/Title: NH Fuse 500A 500V | 120 kA Breaking Capacity | gG/gL Class | Size 3 by Eaton

Brand: Eaton

SKU: 500NHG3B

Alternatively Known As: NH Fuse 500A, NH Size 3 Fuse, Low Voltage NH Fuse, Bussmann NH Fuse, 500V NH Fuse

Technical Specifications
  • Amperage Rating: 500 A
  • Voltage Rating: 500 V AC
  • Breaking Capacity: 120 kA
  • Class: gG/gL
  • Frequency Rating: 45 Hz to 62 Hz
  • Fuse Size: NH01
  • Certifications: IEC 60269-1, IEC 60269-2, DIN 43620
  • Compliances: RoHS Compliant, CE Marked
  • Suitable for Microswitch 170H0235
  • Dimensions (H x L x W): 86mm x 150mm x 71mm
  • Weight: 1.03 kg
Key Features
  • Live gripping lug for secure connection
  • Combination fuse status indicator for easy fuse condition monitoring
  • Blade end connection with square-body and knife blade contact
  • Class gG/gL fuse providing full range protection
  • High breaking capacity of 120 kA at 500 V AC
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper fuse operation.
Applications
  • Low voltage electrical protection in industrial and commercial electrical systems
  • Protection of transformers, motors, and cables from overload and short circuit
  • Use in switchgear and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • RoHS compliant ensuring reduced hazardous substances
  • Durable design reduces waste and replacement frequency
Warranty Information

Standard Eaton warranty applies; typically 1 year against manufacturing defects.

Available Now

The Eaton NH Fuse 500A 500V GG/GL Size 3 is available now for immediate purchase. Ideal for industrial and commercial electrical protection applications.

Product specifications (skuPage.500NHG3B.pdf, 54 Kb) [Download]
