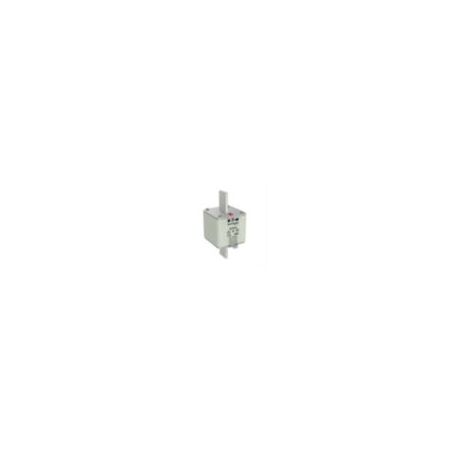

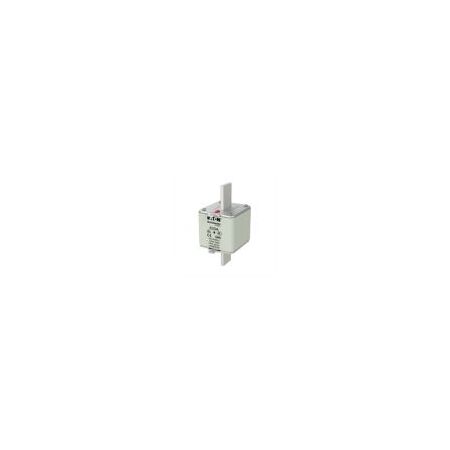

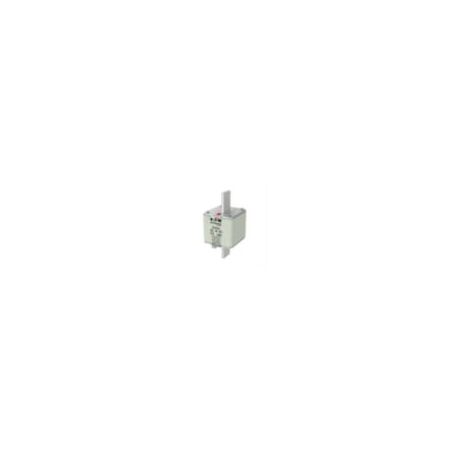

NH Fuse 630A 500V gG/gL | 120 kA Breaking Capacity | Live Gripping Lug | Combination Fuse by Eaton
NH Fuse 630A 500V gG/gL offers a high breaking capacity of 120 kA and a live gripping lug for secure connections—ideal for low voltage electrical protection in industrial and commercial systems. Built for qualified electricians, this combination fuse features a status indicator for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NH Fuse 630A 500V gG/gL | 120 kA Breaking Capacity | Live Gripping Lug | Combination Fuse by Eaton
Brand: Eaton
SKU: 630NHG3B
Alternatively Known As: NH Fuse 630 Amp 500 Volt gG gL Size 3, NH0 Fuse 630A, Low Voltage NH Fuse
Technical Specifications
- Amperage Rating: 630 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Class: gG/gL
- Frequency Rating: 45 Hz to 62 Hz
- Fuse Size: NH0
- Certifications: IEC 60269-1, IEC 60269-2, DIN 43620
- Fuse Type: Combination fuse with status indicator
- Connection Type: Blade end with knife blade contact
- Dimensions (H x L x W): 86mm x 150mm x 71mm
- Weight: 1.07 kg
Key Features
- Live gripping lug for secure connection
- Combination fuse status indicator for easy fuse condition monitoring
- Blade end connection with square-body and knife blade contact
- Class gG/gL fuse providing general purpose protection
- High breaking capacity of 120 kA at 500V AC
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse operation.
Applications
- Low voltage electrical protection in industrial and commercial electrical systems
- Use with EBF Vertical fuse rail and EBV Vertical fuse switch-disconnectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard Eaton warranty applies; refer to Eaton for specific warranty terms.
Available Now
The Eaton NH Fuse 630A 500V GG/GL Size 3 is available for immediate purchase, ideal for industrial and commercial low voltage electrical protection applications.
