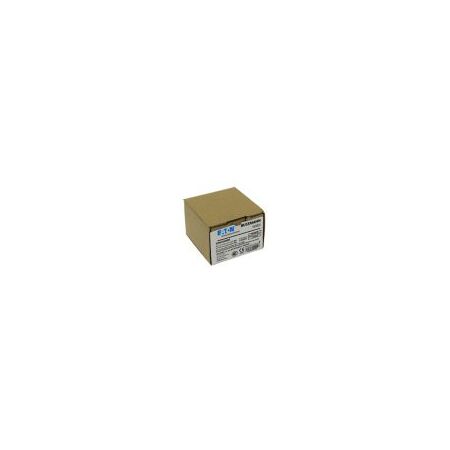

NH Fuse 63A 500V | 120 kA Breaking Capacity | Live Gripping Lug & Status Indicator | Size 000 by Eaton
NH Fuse 63A 500V with 120 kA breaking capacity and live gripping lug—ideal for low voltage electrical protection in industrial settings. Built for safety compliance, featuring a combination fuse status indicator for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NH Fuse 63A 500V | 120 kA Breaking Capacity | Live Gripping Lug & Status Indicator | Size 000 by Eaton
Brand: Eaton
SKU: 63NHG000B
Alternatively Known As: NH Fuse 63A 500V, NH000 Fuse, Low Voltage NH Fuse, Bussmann NH Fuse
Technical Specifications
- Amperage Rating: 63 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Class: gG/gL
- Frequency Rating: 45 Hz to 62 Hz
- Fuse Size: NH000
- Certifications: IEC 60269-1, IEC 60269-2, DIN 43620
- Compliances: RoHS Compliant, CE Marked
- Dimensions (H x L x W): 51mm x 79mm x 21mm
- Weight: 0.12 kg
Key Features
- Live gripping lug
- Combination fuse status indicator
- Blade end connection
- Square-body with knife blade contact
- Class C gL/gG fuse
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse operation.
Applications
- Suitable for Microswitch 170H0236
- EBF Vertical fuse rail
- EBV Vertical fuse switch-disconnectors
- EBH Size 000 Horizontal fuse switch-disconnectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard Eaton warranty against manufacturing defects. Please refer to Eaton's official warranty policy for details.
Available Now
The Eaton NH Fuse 63AMP 500V Size 000 GG MGL is available for immediate purchase, ideal for low voltage electrical protection applications in industrial and commercial settings.
