NHP Panelboard 72 Way 250A | Integrated Metering | IP42 Rated | Orange by NHP
NHP panelboard with 72 outgoing ways and integrated energy metering—ideal for industrial and commercial facilities. Built for robust electrical distribution, with IP42 protection and surface-mounted design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

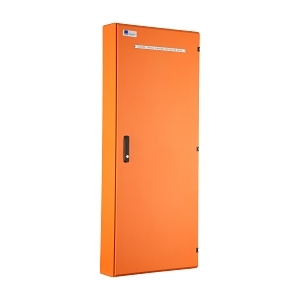

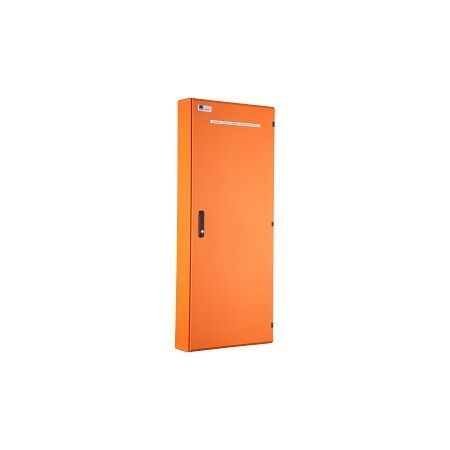

Product Name/Title: NHP Concept Plus Panelboard DIN-T EV and SCZ 72 Way 3x24 250A MSW 9M-1944mm Orange
Brand: NHP
SKU: CPLMSXCS72M250O
Alternatively Known As: EV Distribution Board, Electrical Distribution Panel, NHP Panelboard
Technical Specifications
- Rated Current: 250 A
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Insulation Voltage: 500 V
- Number of Poles: 3
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1944mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- 72 outgoing ways for extensive circuit management.
- Integrated energy metering function for monitoring usage.
- IP42 rated for protection against solid objects and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings
- General: Any location requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient energy management reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard DIN-T EV and SCZ 72 Way 250A is available now for immediate purchase, ideal for commercial and industrial applications.
