NHP Panelboard 72 Way | 250A | IP42 Steel Housing | 1944mm Grey by NHP
NHP panelboard with 72 outgoing ways and 250A rated current—ideal for industrial and commercial electrical distribution. Built for extensive distribution needs, with robust IP42 steel housing and integrated energy metering.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

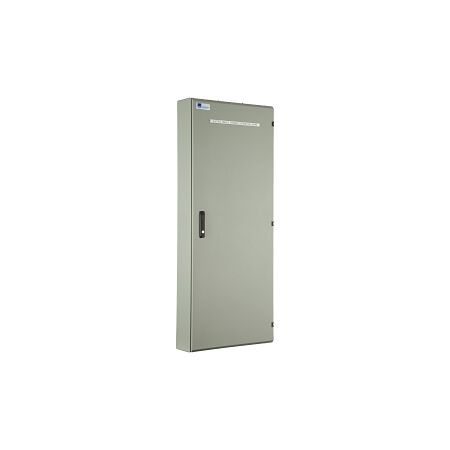

Product Name/Title: NHP Concept Plus Panelboard DIN-T EV and SCZ 72 Way 3x24 250A MSW 9M-1944mm Grey
Brand: NHP
SKU: CPLMSXCS72M250G
Alternatively Known As: NHP EV Distribution Board, NHP Panelboard, NHP 72 Way Distribution Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 72
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Insulation Voltage: 500 V
- Number of Poles (Main Switch): 3
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1944mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- 72 outgoing ways for extensive distribution needs.
- Integrated energy metering function for monitoring usage.
- Robust steel housing with IP42 protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings
- General: Electrical distribution in various settings
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient energy distribution reduces overall energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard DIN-T EV and SCZ 72 Way 250A is available now for immediate purchase, ideal for commercial and industrial electrical distribution.
