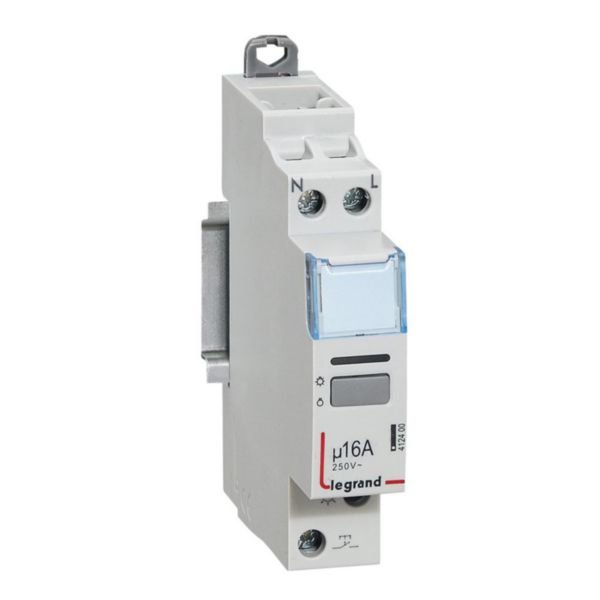

Noiseless Pulse Operated Latching Relay CX³ | 16A-250V | 1 NO Contact | DIN Rail Mount | @EA of 1 | by Legrand
The Noiseless Pulse Operated Latching Relay CX³ is designed for efficient control in residential and small commercial electrical panels. With a rated current of 16A and a control coil voltage of 230V, this relay ensures noiseless operation thanks to its electronic technology. Ideal for centralized control systems, it features a clear orange light indicator and easy DIN rail mounting for quick installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Noiseless Pulse Operated Latching Relay CX³ | 16A-250V | 1 NO Contact | DIN Rail Mount | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412400
Alternatively Known As: Pulse Latching Relay, Noiseless Latching Relay, CX3 Latching Relay, Single Pole Relay 16A, 230V Control Relay
Technical Specifications
- Contact Configuration: 1 Normally Open (NO) contact
- Rated Current: 16A
- Rated Voltage: 250V AC
- Control Coil Voltage: 210-250V AC, 50-60 Hz
- Mounting: DIN rail
- Width: 1 modular spacing (18mm)
- Built-in Depth: 44 mm
- Electronic centralized control function
- Conforms to EN 60669-2-2
- Dimensions (H x L x W): 90mm x 44mm x 18mm
- Weight: 0.1 kg
Key Features
- Noiseless operation due to electronic technology
- Clear orange light indicator on front face showing ON position
- Front face push-button for direct on-site control
- Easy DIN rail mounting with two clamps for quick clipping and unclipping
- Label holder for clear circuit identification
- Conforms to EN 60669-2-2 standard
Professional Installation Requirements
- Installation should be performed by a qualified electrician following all relevant electrical installation rules to ensure safety and compliance.
Applications
- Residential and small commercial electrical panels
- Control circuits requiring noiseless latching relay operation
- Centralized control systems in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Noiseless electronic operation reduces noise pollution in electrical installations
- Energy efficient control reduces unnecessary power consumption
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand Noiseless Pulse Operated Latching Relay CX³ is available for immediate purchase, ideal for residential and small commercial panel control applications.
