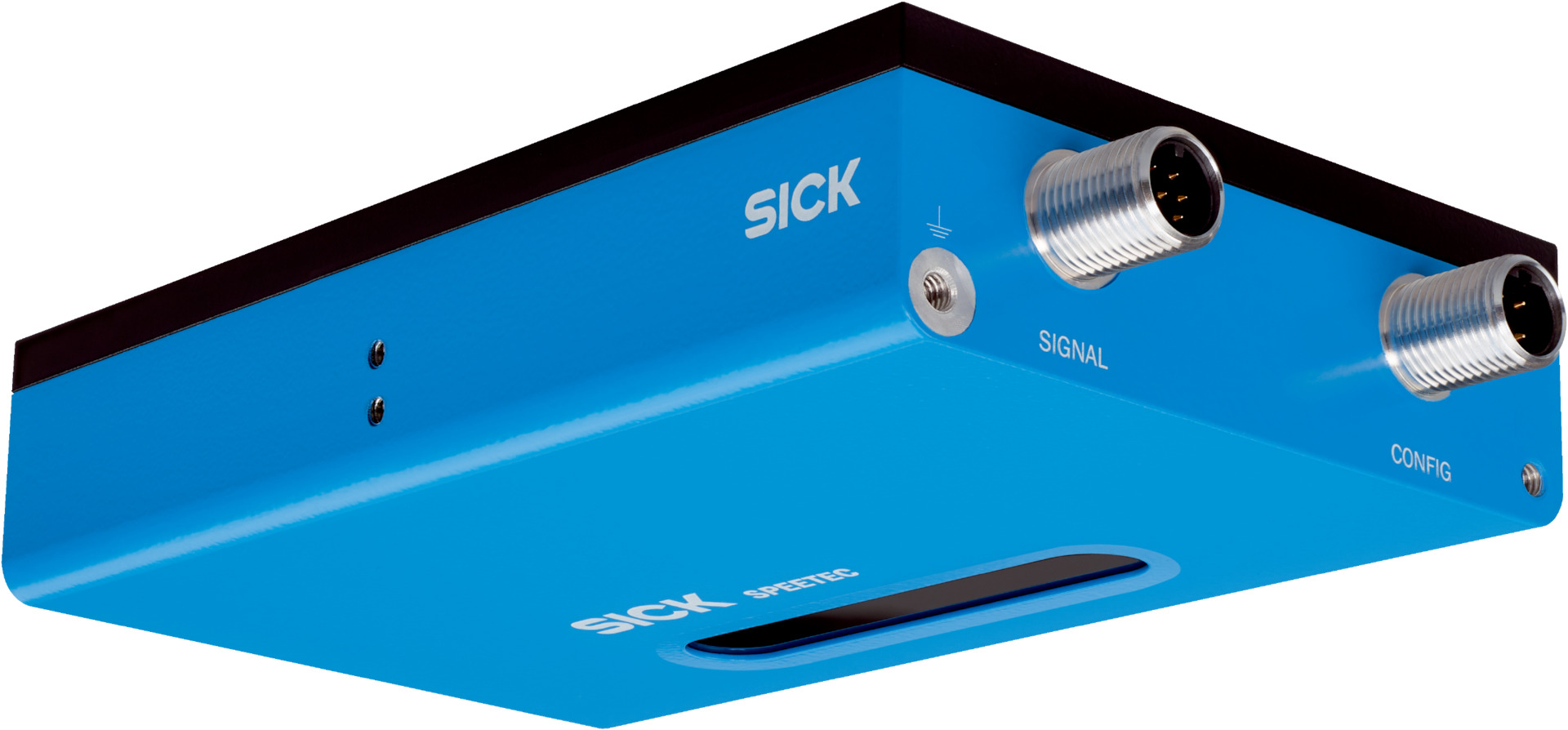

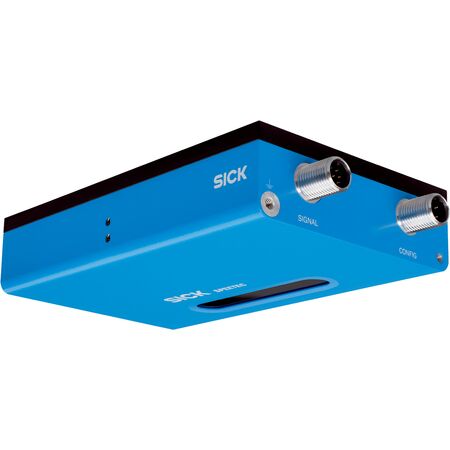

Non-Contact Velocity Sensor | Class 1 Laser | 0.1% Accuracy | IP65/IP67 Rated | by SICK
The Non-Contact Velocity Sensor NCV50B-11CC0100100 utilizes a Class 1 laser for precise motion monitoring, achieving a remarkable accuracy of 0.1% and a speed range of up to 10 m/s. Ideal for industrial applications, this sensor features robust IP65/IP67 protection, ensuring durability in various environments while minimizing wear and tear through non-contact measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: 2 continuous beam lasers
- Laser wavelength: 850 nm
- Laser class: 1 (IEC 60825-1:2014)
- Measurement field size: 2 mm x 3 mm at 50 mm distance
- Nominal measuring distance: 50 mm
- Static mounting tolerance: ±5 mm
- Speed measuring range: 0 to 10 m/s
- Permissible acceleration: ≤ 30 m/s²
- Measurement accuracy: 0.1%
- Repeatability: 0.05%
- Internal sampling rate: 330 µs
- Latency: 2.9 ms
- Supply voltage: 12 V to 30 V
- Communication interface: TTL / RS-422
- Output frequency: ≤ 625 kHz
- Connection type: Male connector, M12, 8-pin, A-coded
- Power consumption: < 8 W
- Load current: ≤ 30 mA per channel
- Protection class: III according to DIN EN 61140
- Enclosure rating: IP65 and IP67
- Operating temperature range: 0 °C to +45 °C
- Storage temperature range: -32 °C to +60 °C
- Resistance to shocks: 30 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 32.5mm x 95mm x 140mm
- Weight: 0.4 kg
Key Features
- Non-contact measurement using no measuring elements
- Class 1 laser with invisible infrared light at 850 nm wavelength
- High measurement accuracy of 0.1% and repeatability of 0.05%
- Bidirectional movement detection with speed range up to 10 m/s
- Static mounting tolerance approximately ±5 mm allowing quick and easy mounting
- Robust aluminum housing with IP65/IP67 protection rating
- Reverse polarity protection and short-circuit resistant outputs
- Low power consumption under 8 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure proper mounting and compliance with safety regulations.
Applications
- Motion monitoring on various surfaces and objects
- Retrofit installations requiring easy mounting
- End-customer applications needing high measurement accuracy with large mounting tolerances
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor lifespan
- Low power consumption contributes to energy efficiency
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK NCV50B-11CC0100100 Non-Contact Velocity Sensor is available for immediate purchase, ideal for industrial motion monitoring and retrofit applications requiring precise and reliable velocity measurement.
