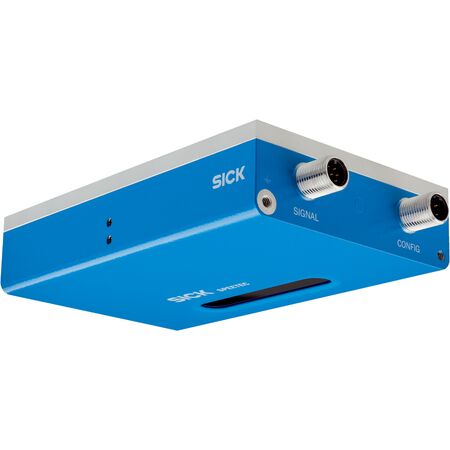

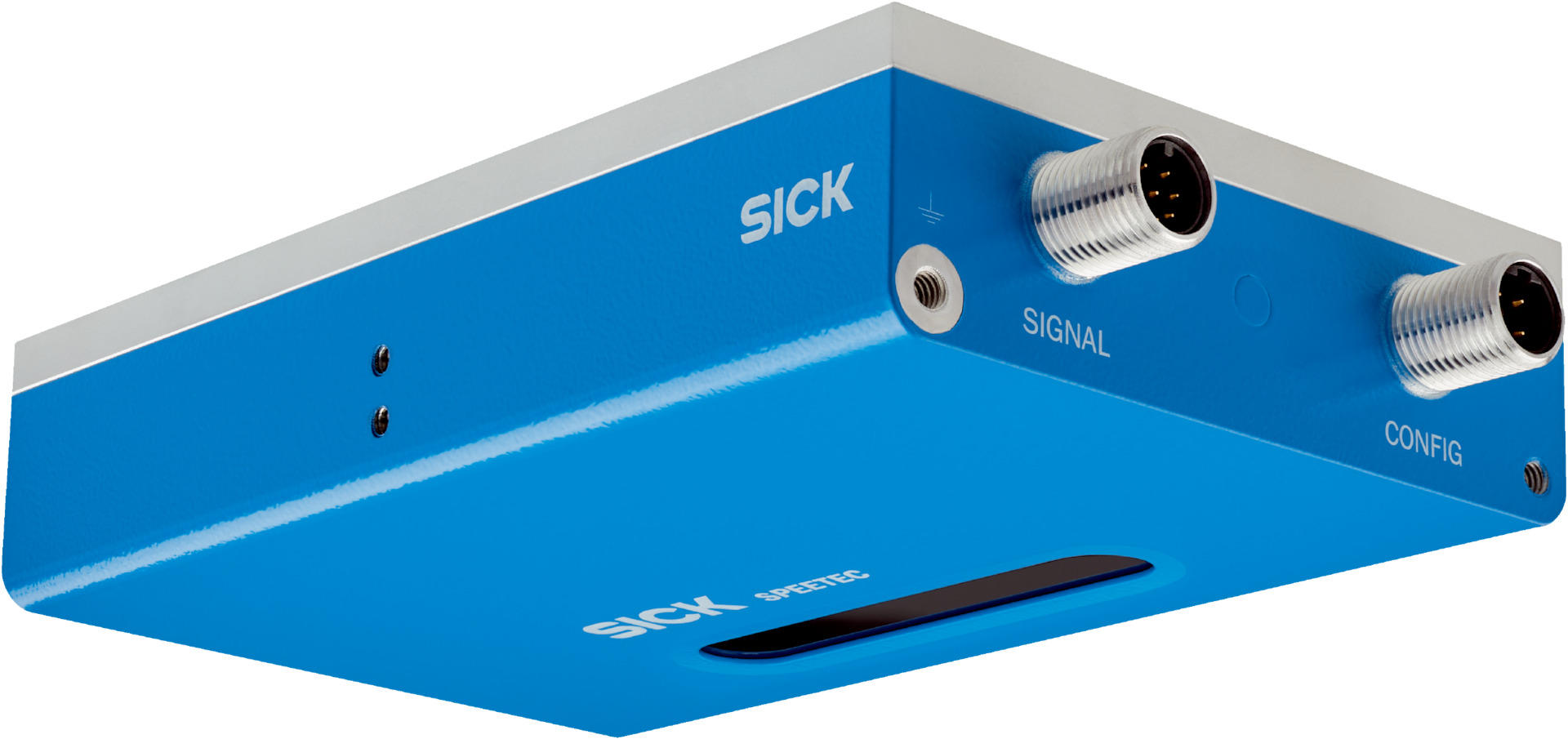

Non-Contact Velocity Sensor | Class 1 Laser Technology | IP65/IP67 Protection | by SICK
The Non-Contact Velocity Sensor NCV50E-20CC0100100 utilizes Class 1 laser technology for precise motion detection without contact. With a measurement range of 0 to 10 m/s and high accuracy of 0.72%, it's perfect for OEM motion monitoring and industrial automation. Its robust aluminum housing ensures durability, while the IP65/IP67 rating provides protection against dust and water, making it suitable for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: 1 continuous beam laser, 850 nm wavelength
- Laser class: 1 (IEC 60825-1:2014)
- Measurement field size: 2 mm x 1.5 mm at 45-55 mm distance
- Nominal measuring distance: 50 mm
- Static mounting tolerance: ±5 mm
- Measuring increment: 100 µm/pulse
- Speed measuring range: 0 to 10 m/s
- Permissible acceleration: ≤ 30 m/s²
- Internal sampling rate: 330 µs
- Latency: 2.9 ms
- Supply voltage: 12 V to 30 V
- Communication interface: TTL / RS-422
- Output frequency: ≤ 625 kHz
- Connection type: Male M12, 8-pin, A-coded
- Power consumption: < 8 W
- Load current: ≤ 30 mA per channel
- Protection class: III according to DIN EN 61140
- Enclosure rating: IP65 and IP67
- Operating temperature range: 0 °C to +45 °C
- Storage temperature range: -32 °C to +60 °C
- Resistance to shocks: 30 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 32.5mm x 95mm x 140mm
- Weight: 0.4 kg
Key Features
- Non-contact measurement using Class 1 laser technology
- Suitable for almost all surfaces and objects
- Bidirectional movement detection
- High accuracy with 0.72% measurement accuracy and 0.1% repeatability
- Robust aluminum housing with IP65/IP67 protection
- TTL / RS-422 communication interface
- Short-circuit resistant outputs and reverse polarity protection
Professional Installation Requirements
- Professional installation by a qualified technician or engineer is recommended to ensure precise mounting and calibration for optimal performance.
Applications
- OEM motion monitoring applications
- Non-contact measurement on moving objects
- Industrial automation and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Low power consumption under 8W
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK NCV50E-20CC0100100 Non-Contact Velocity Sensor is available for immediate purchase, ideal for OEM and industrial motion monitoring applications.
