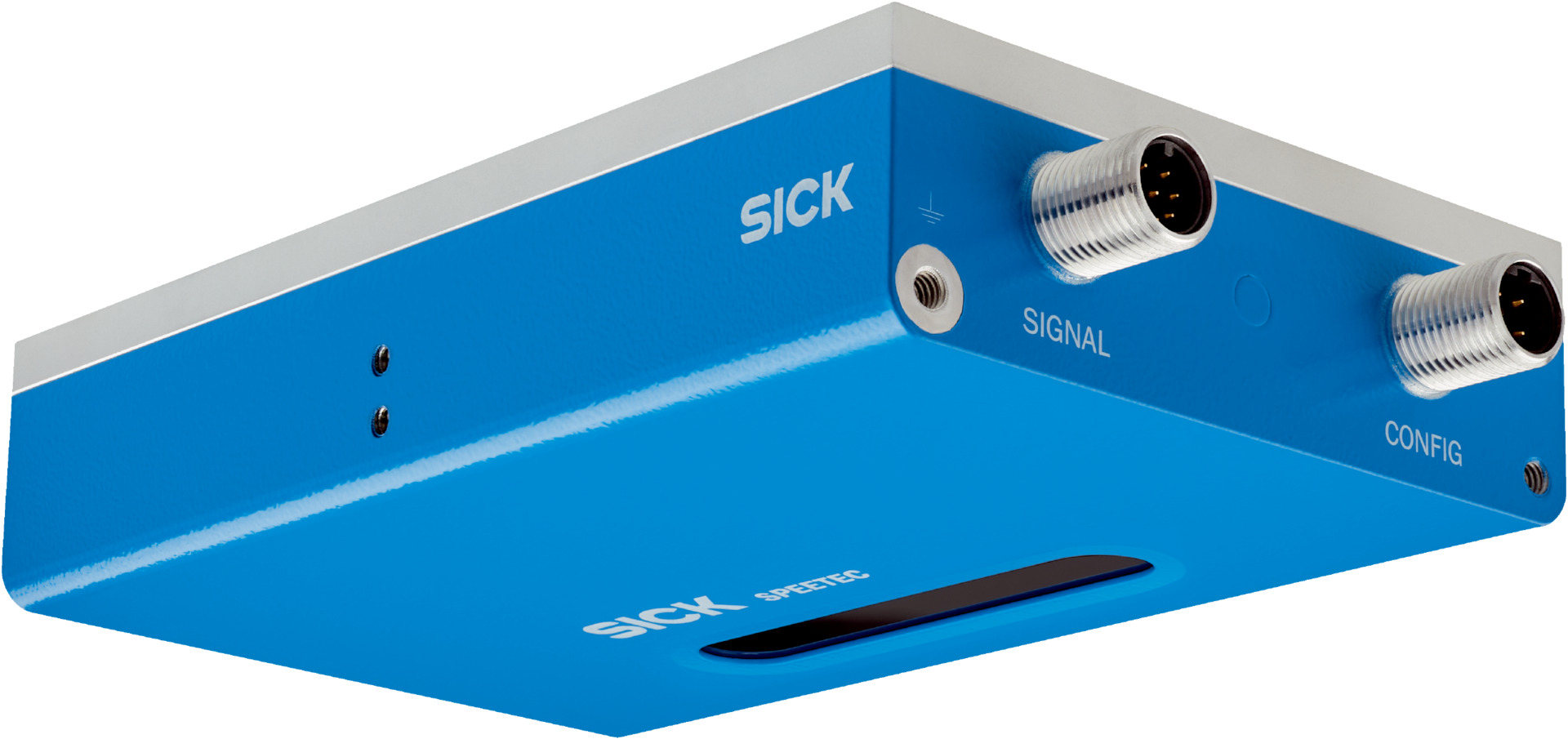

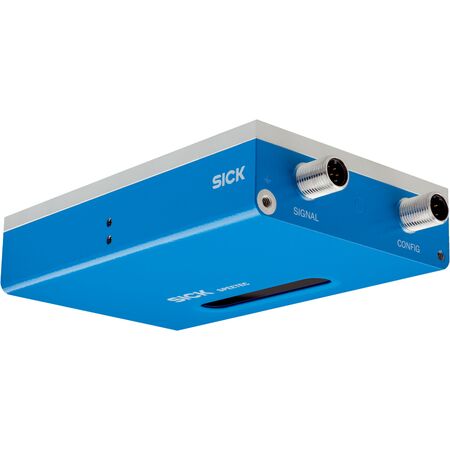

Non-Contact Velocity Sensor | Class 1 Laser Technology | IP65/IP67 Protection | by SICK
The Non-Contact Velocity Sensor NCV50E-20CCP100100 utilizes Class 1 laser technology for precise motion monitoring, making it ideal for OEM applications. With a measurement accuracy of 0.72% and robust IP65/IP67 protection, this sensor is designed for industrial automation, ensuring reliable performance on various surfaces without wear and tear.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: 1 continuous beam laser, 850 nm wavelength
- Laser class: 1 (IEC 60825-1:2014)
- Nominal measuring distance: 50 mm
- Possible static measuring distance: 30 to 100 mm
- Measurement field size: 2 mm x 1.5 mm at 45-55 mm distance
- Measurement accuracy: 0.72%
- Repeatability: 0.1%
- Speed measuring range: 0 to 10 m/s
- Permissible acceleration: ≤ 30 m/s²
- Supply voltage: 12 V to 30 V
- Output frequency: ≤ 625 kHz
- Connection: Male M12, 8-pin, A-coded connector
- Protection class: III according to DIN EN 61140
- Enclosure rating: IP65/IP67
- Operating temperature range: 0 °C to +45 °C
- Storage temperature range: -32 °C to +60 °C
- Power consumption: < 8 W
- Weight: 400 g
- Dimensions (H x L x W): 32.5mm x 95mm x 140mm
- Weight: 0.4 kg
Key Features
- Non-contact measurement using Class 1 laser technology
- Suitable for almost all surfaces and objects
- Measurement accuracy of 0.72% with repeatability of 0.1%
- Bidirectional movement detection in 1D x-direction
- Compact aluminum housing with IP65/IP67 protection
- TTL/HTL communication interface with parameterization and diagnostics
- Robust against shocks (30 g) and vibration (20 g)
- Reverse polarity protection and short-circuit resistant outputs
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure precise mounting and optimal sensor performance.
Applications
- OEM motion monitoring applications
- Non-contact measurement on moving objects
- Industrial automation requiring precise speed and distance measurement
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor lifespan
- Low power consumption under 8 W
- Durable materials and robust design reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK NCV50E-20CCP100100 non-contact velocity sensor is available for immediate purchase, ideal for OEM and industrial motion monitoring applications.
