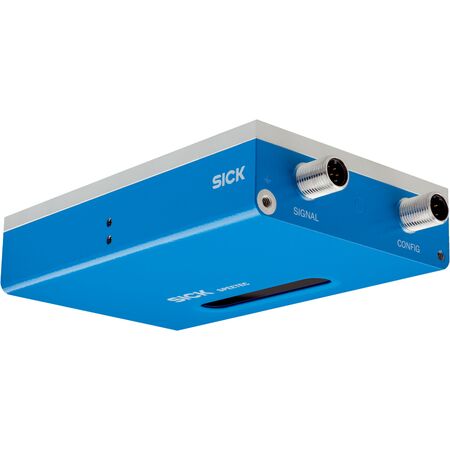

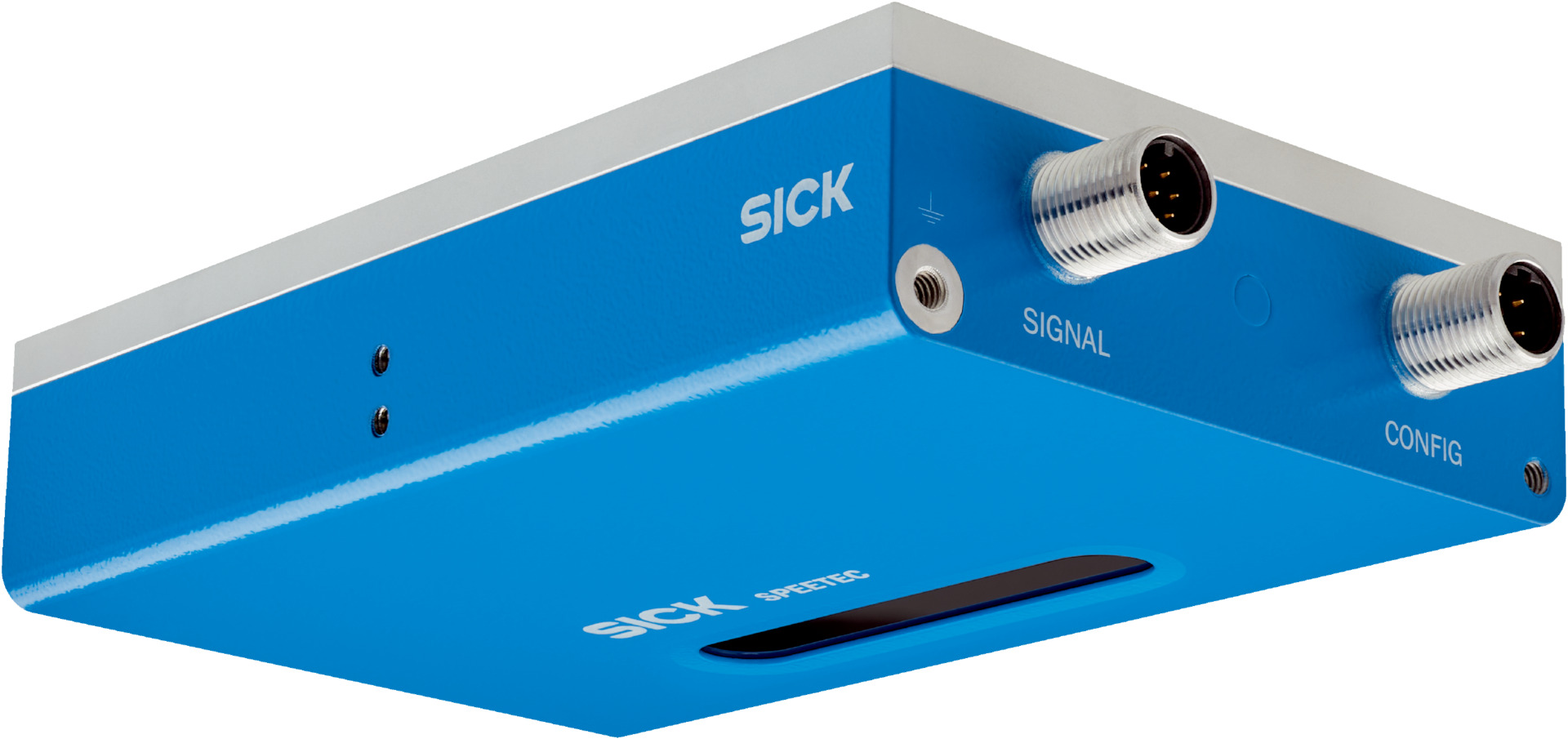

Non-Contact Velocity Sensor | Class 1 Laser Technology | IP65/IP67 Protection | by SICK
The Non-Contact Velocity Sensor is designed for precise motion monitoring, utilizing Class 1 laser technology for non-contact measurement on various surfaces. With a speed measuring range of 0 to 10 m/s and an IP65/IP67 protection rating, this sensor is perfect for industrial automation and OEM applications, ensuring high accuracy and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: 1 continuous beam laser, 850 nm wavelength
- Laser class: 1 (IEC 60825-1:2014)
- Nominal measuring distance: 50 mm
- Measurement field size: 2 mm x 1.5 mm at 45-55 mm distance
- Speed measuring range: 0 to 10 m/s
- Measuring increment: 100 µm/pulse
- Static mounting tolerance: ±5 mm
- Supply voltage: 12 V to 30 V
- Output frequency: ≤ 625 kHz
- Connection: Male M12, 8-pin, A-coded connector
- Power consumption: < 8 W
- Load current: ≤ 30 mA per channel
- Protection class: III according to DIN EN 61140
- Enclosure rating: IP65/IP67
- Operating temperature: 0°C to +45°C
- Storage temperature: -32°C to +60°C
- Resistance to shocks: 30 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 32.5mm x 140mm x 95mm
- Weight: 0.4 kg
Key Features
- Non-contact measurement using Class 1 laser technology
- Suitable for almost all surfaces and objects
- Bidirectional movement detection in 1D x-direction
- High accuracy with 0.72% measurement accuracy and 0.1% repeatability
- Robust aluminum housing with IP65/IP67 protection rating
- Short-circuit resistant outputs and reverse polarity protection
- Operating temperature range 0°C to +45°C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure precise mounting and optimal sensor performance.
Applications
- OEM motion monitoring applications
- Non-contact measurement on moving objects
- Industrial automation requiring precise speed measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Low power consumption under 8W
- Durable materials and robust design reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK NCV50E-20EC0100100 Non-Contact Velocity Sensor is available for immediate purchase, ideal for OEM and industrial motion monitoring applications.
