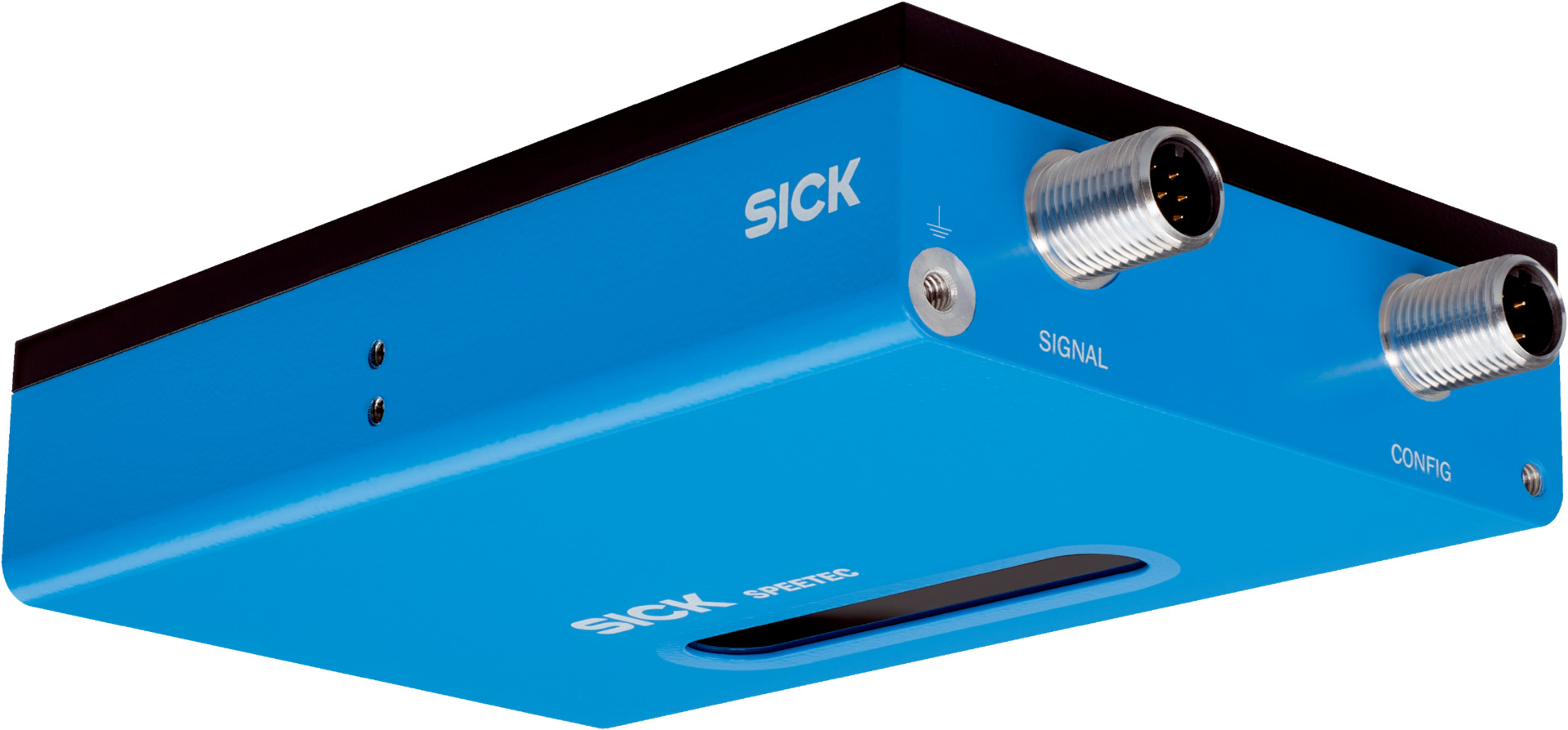

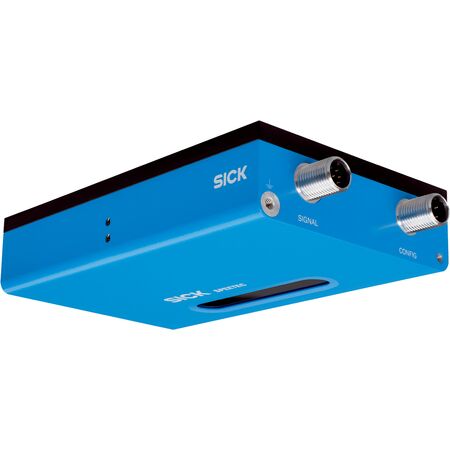

Non-Contact Velocity Sensor NCV50B-11EC0100500 | Class 1 Laser Technology | IP65/IP67 Protection | by SICK
The Non-Contact Velocity Sensor NCV50B-11EC0100500 utilizes Class 1 laser technology for precise motion monitoring on various surfaces. With a measurement accuracy of 0.1% and robust IP65/IP67 protection, it's perfect for industrial applications and retrofit installations. Designed for easy mounting and low power consumption, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: 2 continuous beam lasers, 850 nm wavelength
- Laser class: 1 (IEC 60825-1:2014)
- Measurement field size: 2 mm x 3 mm at 50 mm distance
- Nominal measuring distance: 50 mm
- Static mounting tolerance: ±5 mm
- Measuring increment: 500 µm/pulse
- Speed measuring range: 0 to 10 m/s
- Permissible acceleration: ≤ 30 m/s²
- Measurement accuracy: 0.1%
- Repeatability: 0.05%
- Internal sampling rate: 330 µs
- Latency: 2.9 ms
- Supply voltage: 12 V to 30 V
- Communication interface: HTL / Push pull
- Output frequency: ≤ 625 kHz
- Connection type: Male M12, 8-pin, A-coded
- Power consumption: < 8 W
- Load current: ≤ 30 mA per channel
- Protection class: III according to DIN EN 61140
- Enclosure rating: IP65/IP67
- Operating temperature range: 0 °C to +45 °C
- Storage temperature range: -32 °C to +60 °C
- Resistance to shocks: 30 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 32.5mm x 95mm x 140mm
- Weight: 0.4 kg
Key Features
- Non-contact measurement using Class 1 laser technology
- High measurement accuracy with large mounting tolerances
- Bidirectional movement detection with start/stop capability
- Compact aluminum housing with IP65/IP67 protection
- Robust against shocks and vibrations
- Low power consumption under 8W
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Motion monitoring on various surfaces and objects
- Retrofit installations requiring easy mounting
- End-customer applications with non-contact measurement needs
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending device lifespan
- Low power consumption contributes to energy efficiency
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK NCV50B-11EC0100500 Non-Contact Velocity Sensor is available for immediate purchase, ideal for industrial motion monitoring and retrofit applications.
