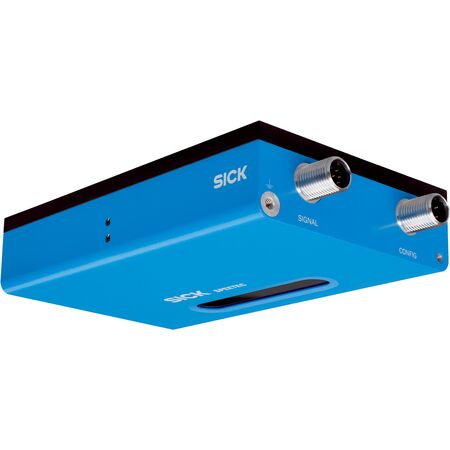

Non-Contact Velocity Sensor NCV50B-11EC0101000 | Class 1 Laser Technology | IP65/IP67 Protection | by SICK
The Non-Contact Velocity Sensor NCV50B-11EC0101000 utilizes advanced Class 1 laser technology for precise motion monitoring without physical contact. With a measurement accuracy of 0.1% and a robust IP65/IP67 rated housing, it's perfect for industrial applications and retrofit installations. Designed for easy mounting and reliable performance, this sensor is ideal for environments requiring high durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: 2 continuous beam lasers, 850 nm wavelength
- Laser class: 1 (IEC 60825-1:2014)
- Nominal measuring distance: 50 mm
- Static mounting tolerance: ±5 mm
- Measuring increment: 1,000 µm/pulse
- Speed measuring range: 0 to 10 m/s
- Permissible acceleration: ≤30 m/s²
- Measurement accuracy: 0.1%
- Repeatability: 0.05%
- Internal sampling rate: 330 µs
- Latency: 2.9 ms
- Supply voltage: 12 V to 30 V
- Communication interface: HTL / Push pull
- Output frequency: ≤625 kHz
- Connection type: Male connector, M12, 8-pin, A-coded
- Power consumption: <8 W
- Load current: ≤30 mA per channel
- Protection class: III according to DIN EN 61140
- Enclosure rating: IP65/IP67
- Operating temperature range: 0°C to +45°C
- Storage temperature range: -32°C to +60°C
- Resistance to shocks: 30 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 32.5mm x 95mm x 140mm
- Weight: 0.4 kg
Key Features
- Non-contact measurement using Class 1 laser technology
- High measurement accuracy with large mounting tolerances
- Bidirectional movement detection with start/stop capability
- Robust aluminum housing with IP65/IP67 protection rating
- Operating temperature range from 0°C to +45°C
- Short-circuit resistant outputs and reverse polarity protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Motion monitoring on various surfaces and objects
- Retrofit installations requiring easy mounting
- End-customer applications with non-contact measurement needs
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor lifespan
- Energy-efficient operation with low power consumption (<8 W)
- Robust design minimizes replacement frequency, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK NCV50B-11EC0101000 Non-Contact Velocity Sensor is available for immediate purchase, ideal for industrial motion monitoring and retrofit applications.
