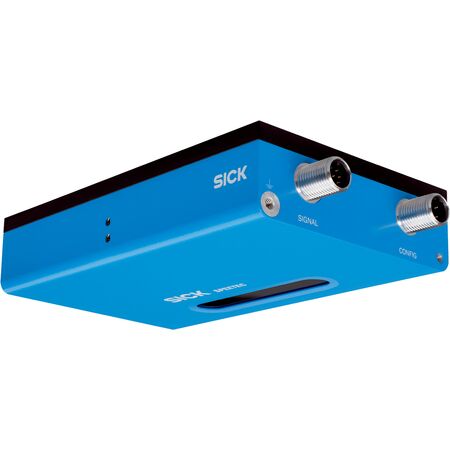

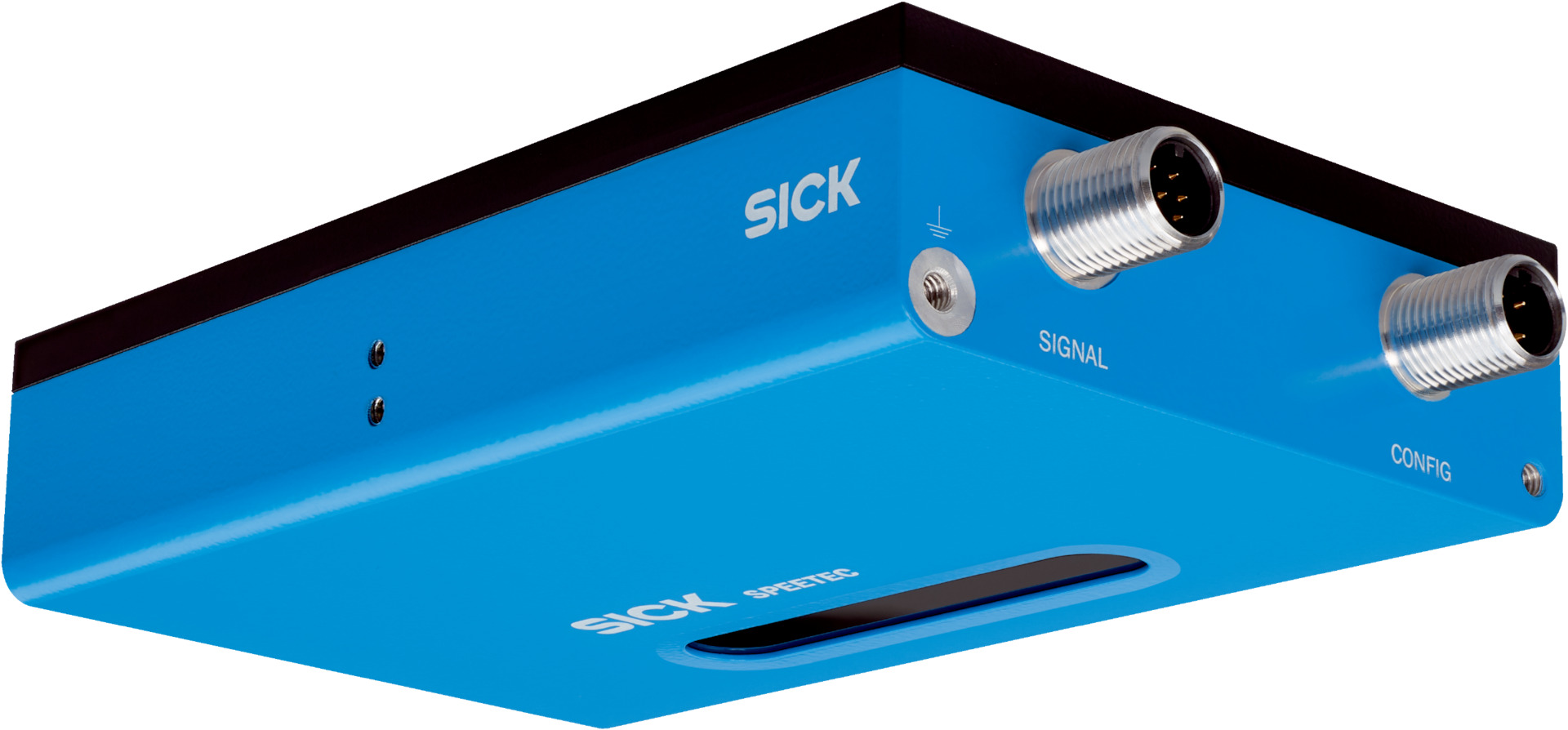

Non-Contact Velocity Sensor NCV50B-11EC0102000 | Class 1 Laser | IP65/IP67 Protection | by SICK
The Non-Contact Velocity Sensor NCV50B-11EC0102000 utilizes advanced laser technology for precise motion monitoring without physical contact. With a speed measuring range of 0 to 10 m/s and a robust aluminum housing rated IP65/IP67, it's perfect for industrial applications requiring high accuracy and durability. Ideal for retrofit installations, this sensor ensures quick initialization and reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: 2 continuous beam lasers
- Wavelength: 850 nm
- Laser class: 1 (IEC 60825-1:2014)
- Measurement field size: 2 mm x 3 mm at 50 mm distance
- Nominal measuring distance: 50 mm
- Static mounting tolerance: ±5 mm
- Measuring increment: 2000 µm/pulse
- Speed measuring range: 0 to 10 m/s
- Permissible acceleration: ≤ 30 m/s²
- Internal sampling rate: 330 µs
- Latency: 2.9 ms
- Supply voltage: 12 V to 30 V
- Communication interface: HTL / Push pull
- Output frequency: ≤ 625 kHz
- Connection type: Male connector, M12, 8-pin, A-coded
- Power consumption: < 8 W
- Load current: ≤ 30 mA per channel
- Protection class: III according to DIN EN 61140
- Enclosure rating: IP65/IP67
- Operating temperature range: 0 °C to +45 °C
- Storage temperature range: -32 °C to +60 °C
- Resistance to shocks: 30 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 32.5mm x 95mm x 140mm
- Weight: 0.4 kg
Key Features
- Non-contact measurement using no measuring elements
- Class 1 laser with invisible infrared light at 850 nm wavelength
- High measurement accuracy of 0.1% and repeatability of 0.05%
- Bidirectional movement detection with speed range up to 10 m/s
- Robust aluminum housing with IP65/IP67 protection rating
- Short-circuit resistant outputs and reverse polarity protection
- Quick initialization time of max. 3 seconds
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure proper mounting and compliance with safety standards.
Applications
- Motion monitoring on various surfaces and objects
- Retrofit installations requiring easy mounting
- End-customer applications needing high measurement accuracy with large mounting tolerances
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor lifespan
- Low power consumption under 8W enhances energy efficiency
- Robust design minimizes replacement frequency, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK NCV50B-11EC0102000 Non-Contact Velocity Sensor is available for immediate purchase, ideal for industrial motion monitoring and retrofit applications.
