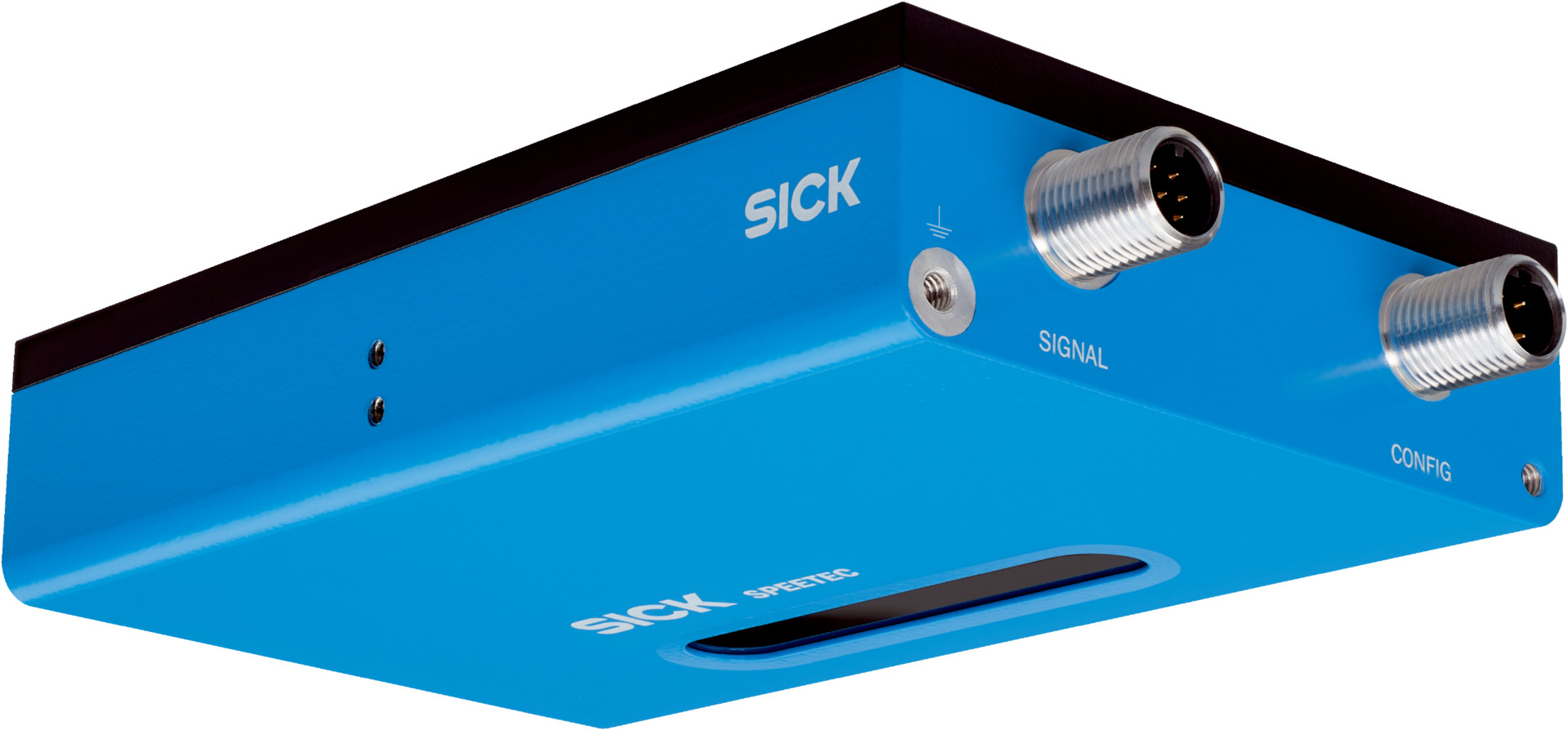

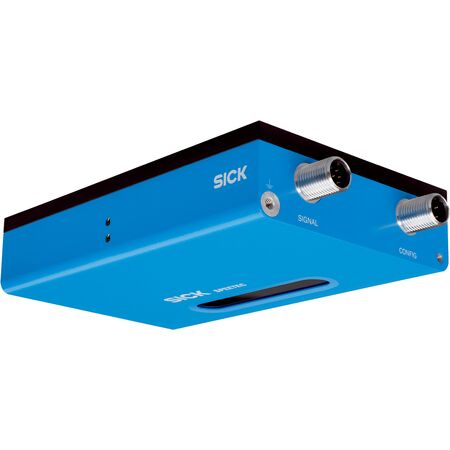

Non-Contact Velocity Sensor NCV50B | Class 1 Laser Technology | IP65/IP67 Protection | by SICK
The Non-Contact Velocity Sensor NCV50B utilizes advanced Class 1 laser technology for precise motion monitoring on various surfaces. With a speed measuring range of 0 to 10 m/s and high measurement accuracy of 0.1%, it's perfect for industrial applications requiring reliable performance. Its robust aluminum housing and IP65/IP67 rating ensure durability in challenging environments, making it an ideal choice for retrofit installations and high-accuracy needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: 2 continuous beam lasers, 850 nm wavelength
- Laser class: 1 (IEC 60825-1:2014)
- Measurement field size: 2 mm x 3 mm at 50 mm distance
- Nominal measuring distance: 50 mm
- Static mounting tolerance: ±5 mm
- Measuring increment: 4 µm/pulse
- Speed measuring range: 0 to 10 m/s
- Permissible acceleration: ≤ 30 m/s²
- Internal sampling rate: 330 µs
- Latency: 2.9 ms
- Supply voltage: 12 V to 30 V
- Communication interface: HTL / Push pull
- Output frequency: ≤ 625 kHz
- Connection type: Male M12, 8-pin, A-coded connector
- Power consumption: < 8 W
- Load current: ≤ 30 mA per channel
- Protection class: III according to DIN EN 61140
- Enclosure rating: IP65 and IP67 (EN 60529)
- Operating temperature range: 0°C to +45°C
- Storage temperature range: -32°C to +60°C
- Resistance to shocks: 30 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 32.5mm x 95mm x 140mm
- Weight: 0.4 kg
Key Features
- Non-contact measurement using Class 1 laser technology
- High measurement accuracy of 0.1% with repeatability of 0.05%
- Suitable for almost all surfaces and objects
- Large mounting tolerances allowing quick and easy installation without calibration
- Bidirectional movement detection with speed range up to 10 m/s
- Robust aluminum housing with IP65/IP67 protection rating
- Reverse polarity protection and short-circuit resistant outputs
- Operating temperature range from 0°C to +45°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure proper mounting and compliance with safety regulations.
Applications
- Motion monitoring on various surfaces and objects
- Retrofit installations requiring easy mounting
- End-customer applications needing high measurement accuracy with large mounting tolerances
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor lifespan
- Energy-efficient operation with low power consumption under 8W
- Robust design minimizes replacement frequency, reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK NCV50B Non-Contact Velocity Sensor is available for immediate purchase, ideal for industrial motion monitoring and retrofit applications requiring precise and reliable velocity measurement.
