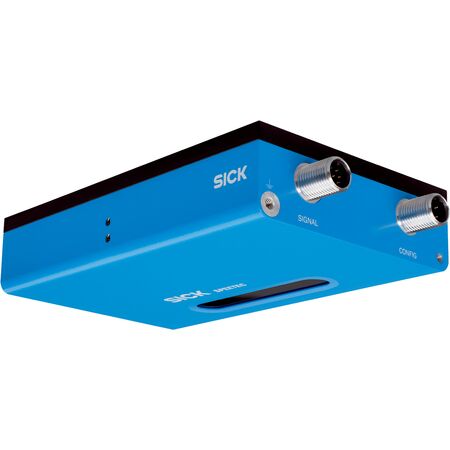

Non-Contact Velocity Sensor NCV50B | Class 1 Laser Technology | IP65/IP67 Protection | by SICK
The Non-Contact Velocity Sensor NCV50B utilizes advanced Class 1 laser technology for precise motion monitoring on various surfaces. With a high measurement accuracy of 0.1% and robust IP65/IP67 protection, it's perfect for industrial applications requiring reliable velocity measurement without wear and tear. Ideal for retrofit installations, this sensor ensures easy mounting and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: 2 continuous beam lasers, 850 nm wavelength
- Laser class: 1 (IEC 60825-1:2014)
- Measurement field size: 2 mm x 3 mm at 50 mm distance
- Nominal measuring distance: 50 mm
- Static mounting tolerance: ±5 mm
- Measuring increment: 20 µm/pulse
- Speed measuring range: 0 to 10 m/s
- Permissible acceleration: ≤ 30 m/s²
- Internal sampling rate: 330 µs
- Latency: 2.9 ms
- Supply voltage: 12 V to 30 V
- Communication interface: TTL / RS-422
- Output frequency: ≤ 625 kHz
- Connection type: Male M12, 8-pin, A-coded
- Power consumption: < 8 W
- Load current: ≤ 30 mA per channel
- Reverse polarity protection and short-circuit resistant outputs
- Protection class: III according to DIN EN 61140
- Operating temperature range: 0°C to +45°C
- Storage temperature range: -32°C to +60°C
- Enclosure rating: IP65/IP67
- Resistance to shocks: 30 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 32.5mm x 95mm x 140mm
- Weight: 0.4 kg
Key Features
- Non-contact measurement using Class 1 laser technology
- High measurement accuracy of 0.1% with repeatability of 0.05%
- Suitable for almost all surfaces and objects
- Large mounting tolerances allowing quick and easy installation without calibration
- Bidirectional movement detection with start/stop capability
- Robust aluminum housing with IP65/IP67 protection rating
- Operating temperature range from 0°C to +45°C
- Resistance to shocks up to 30 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure proper mounting and compliance with safety regulations.
Applications
- Motion monitoring on various surfaces and objects
- Retrofit installations requiring easy mounting
- End-customer applications needing high measurement accuracy with large mounting tolerances
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor lifespan
- Low power consumption under 8 W
- Robust design minimizes replacement frequency, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK NCV50B Non-Contact Velocity Sensor is available for immediate purchase, ideal for industrial motion monitoring and retrofit applications requiring precise and reliable velocity measurement.
